Advanced Security - SMC Networks SMCBR14 WIRED BARRICADE User Manual

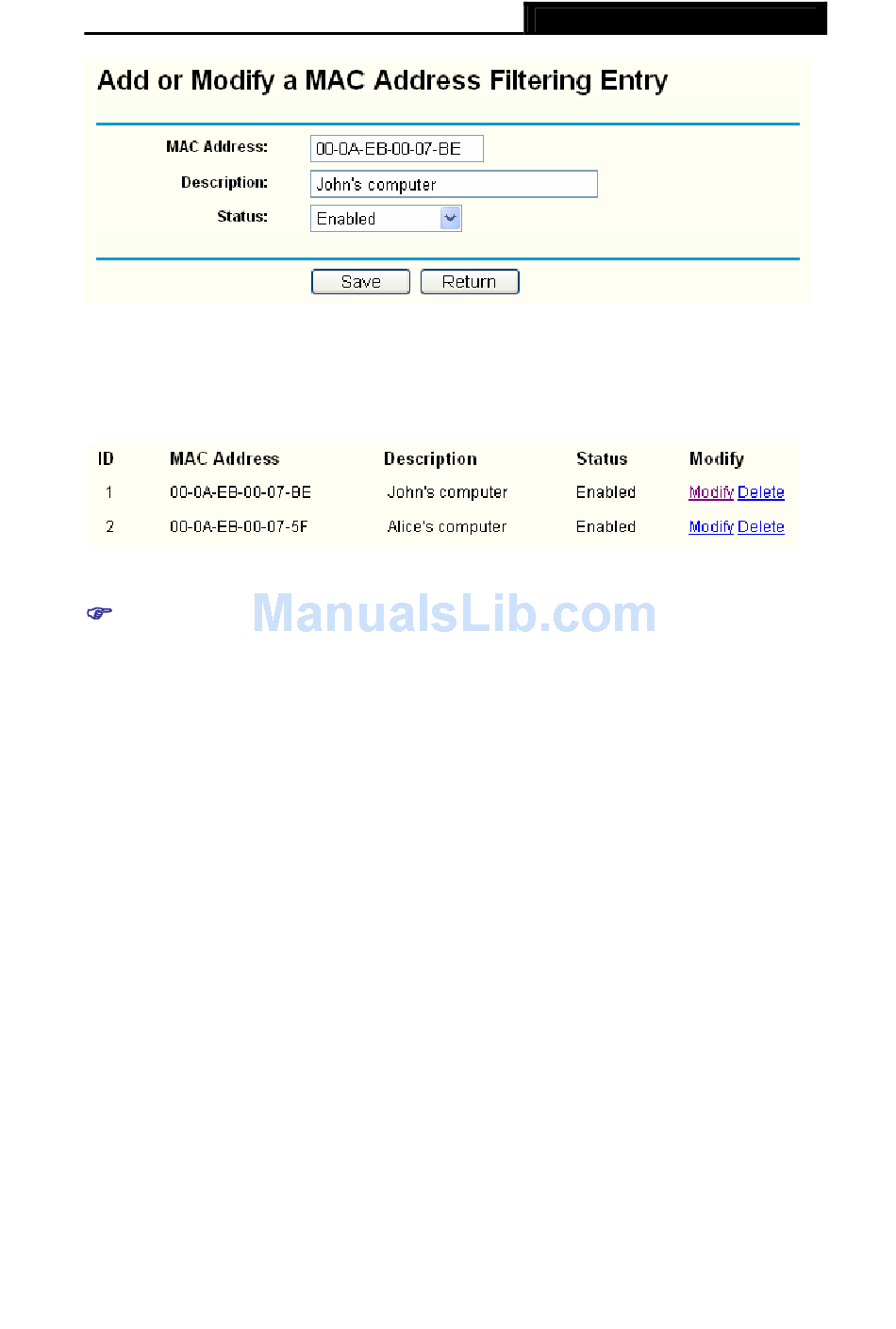

Step 4: Finally, click Save to make the rule take effect.
Step 5: Go to Step 2 to complete the other rules continually.
After you finish the configurations, you will see the rules in the table below:
Note:
Before adding a MAC Address Filtering entry, you should enable the Firewall and the
MAC Address Filtering function first (shown in Figure 4-25).
Other configurations for the entries as shown in Figure 4-26:
Click the Delete button to delete the entry.
Click the Enable All button to enable all the entries.
Click the Disable All button to disable all the entries.
Click the Delete All button to delete all the entries.
Click the Previous button to view the information in the previous screen, click the Next
button to view the information in the next screen.

4.6.5 Advanced Security

Choose menu "Security→Advanced Security", you can configure the functions below
to protect the router from being attacked by TCP-SYN Flood, UDP Flood and
ICMP-Flood from LAN (shown in Figure 4-35).
SMCBR14 Cable/DSL Router User Guide
Figure 4-33
Figure 4-34
42
