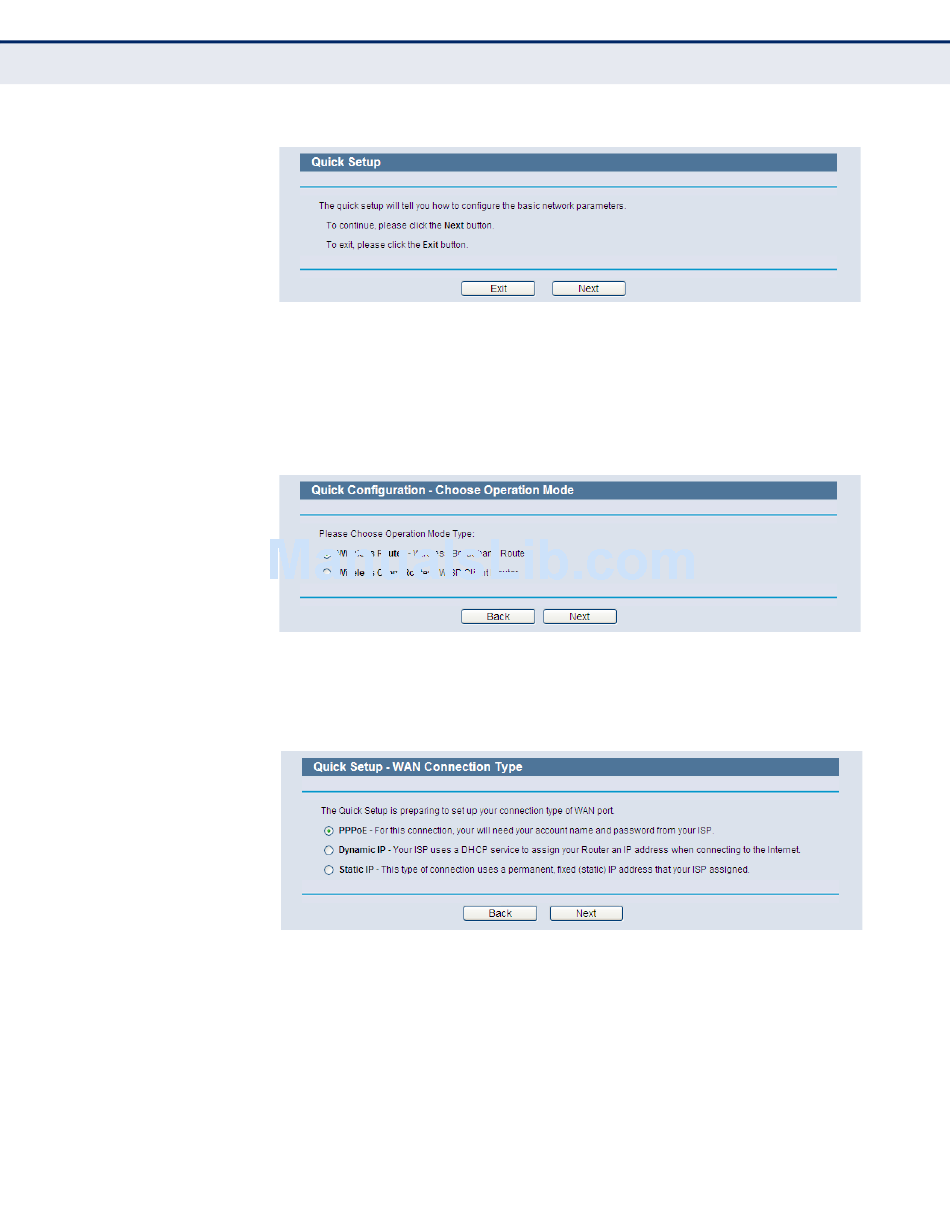

Figure 9: Quick Setup

After successfully logging in, click "Quick Setup" to quickly configure
3.
your Router. Select Wireless Router mode for an Internet connection
through a DSL/cable modem connected to the WAN port. Select
Wireless Client Router mode for an Internet connection through a
wireless service provider.
Figure 10: Operation Mode
Click Next. The WAN Connection Type page will appear, as shown in
4.
Figure 11.

Figure 11: Choose the WAN Connection Type

The Router supports three popular ways (PPPoE, Dynamic IP, and Static IP)
to connect to the Internet. It is recommended that you make use of the
auto-detect function. If you are sure of what kind of connection type your
ISP provides, you can select the type and click Next to go on configuring.
If the connection type detected is PPPoE, the screen shown in
a.
Figure 12 will display.
– 35 –
| Quick Installation Guide
C 3
HAPTER
Quick Installation Guide
