Rainbow1 IP Phone User Manual

4. Web settings

Input the IP address in the web browser and press 'Enter' key to access Rainbow1's
user webpage.
Click "admin" which is on the right top corner to enter administrator webpage.

4.1 Basic

4.1.1 Status

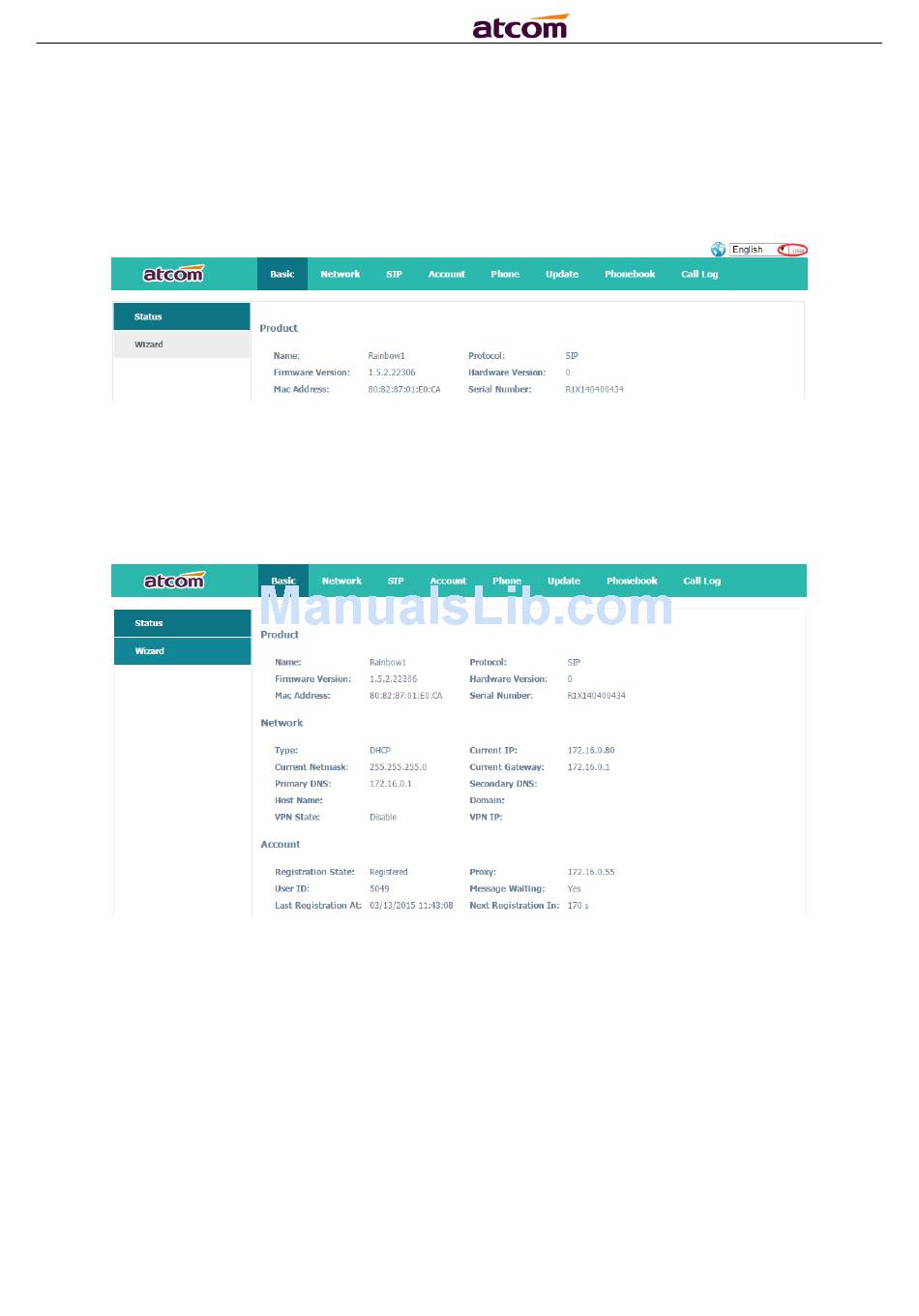

This page shows the IP phone's system status.
1. Product shows the product name, protocol, software and hardware version, Mac
address and serial number.
2. Network shows the network connection type, IP, netmask, gateway, DNS, host
name, domain and VPN information.
3. Account shows registration state, proxy, user ID, message waiting on or off , the
last and next registration time.

4.1.2 Wizard

Wizard is an interface to configure network access type and SIP accounts quickly.
There are 3 ways available when configuring Internet Port:
