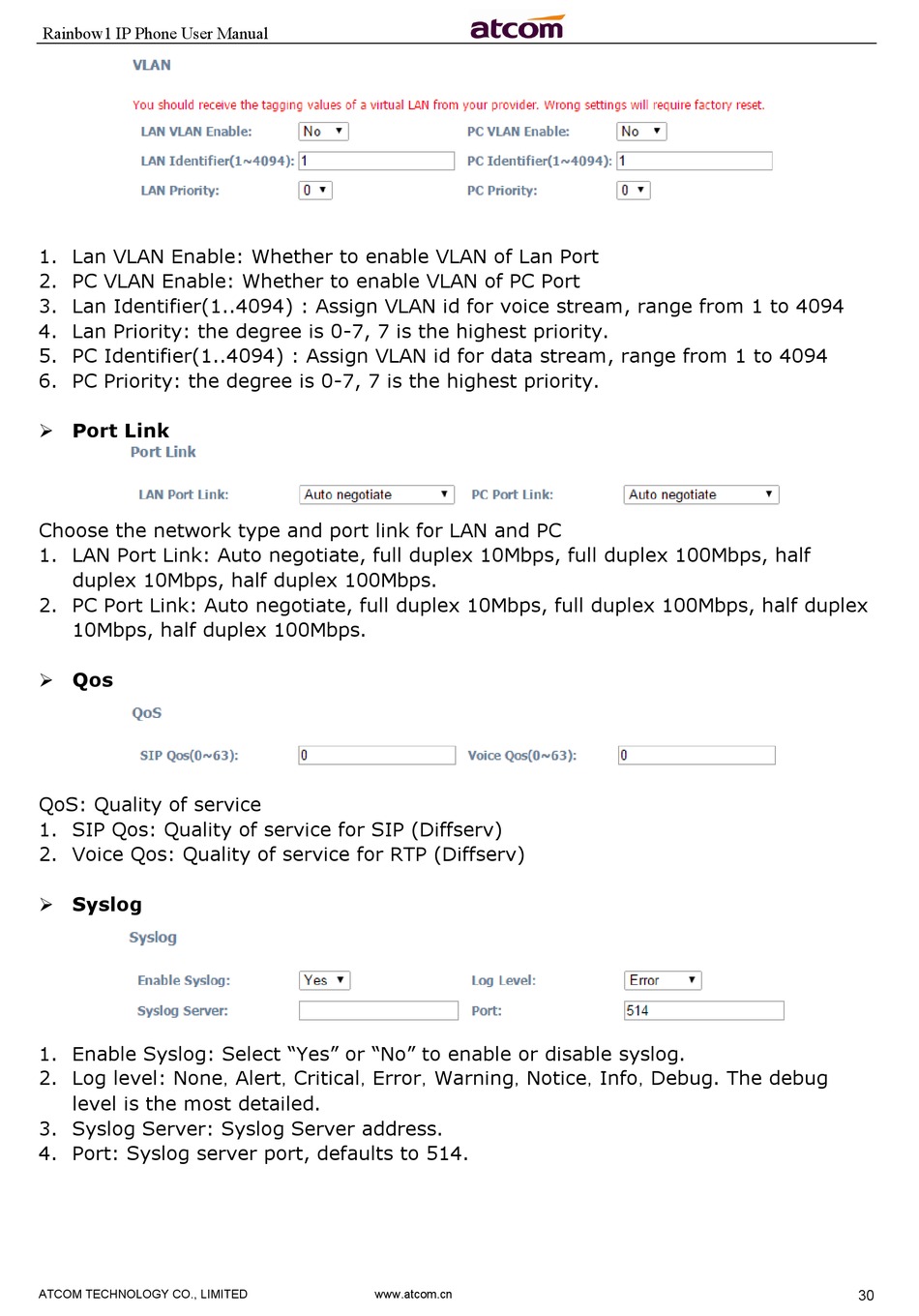

ATCOM Rainbow1 User Manual page 30

Rainbow1 IP Phone User Manual
1. Lan VLAN Enable: Whether to enable VLAN of Lan Port
2. PC VLAN Enable: Whether to enable VLAN of PC Port
3. Lan Identifier(1..4094) : Assign VLAN id for voice stream, range from 1 to 4094
4. Lan Priority: the degree is 0-7, 7 is the highest priority.
5. PC Identifier(1..4094) : Assign VLAN id for data stream, range from 1 to 4094
6. PC Priority: the degree is 0-7, 7 is the highest priority.
 Port Link
Choose the network type and port link for LAN and PC
1. LAN Port Link: Auto negotiate, full duplex 10Mbps, full duplex 100Mbps, half
duplex 10Mbps, half duplex 100Mbps.
2. PC Port Link: Auto negotiate, full duplex 10Mbps, full duplex 100Mbps, half duplex
10Mbps, half duplex 100Mbps.
 Qos
QoS: Quality of service
1. SIP Qos: Quality of service for SIP (Diffserv)
2. Voice Qos: Quality of service for RTP (Diffserv)
 Syslog
1. Enable Syslog: Select "Yes" or "No" to enable or disable syslog.
2. Log level: None，Alert，Critical，Error，Warning，Notice，Info，Debug. The debug
level is the most detailed.
3. Syslog Server: Syslog Server address.
4. Port: Syslog server port, defaults to 514.
