Rainbow1 IP Phone User Manual

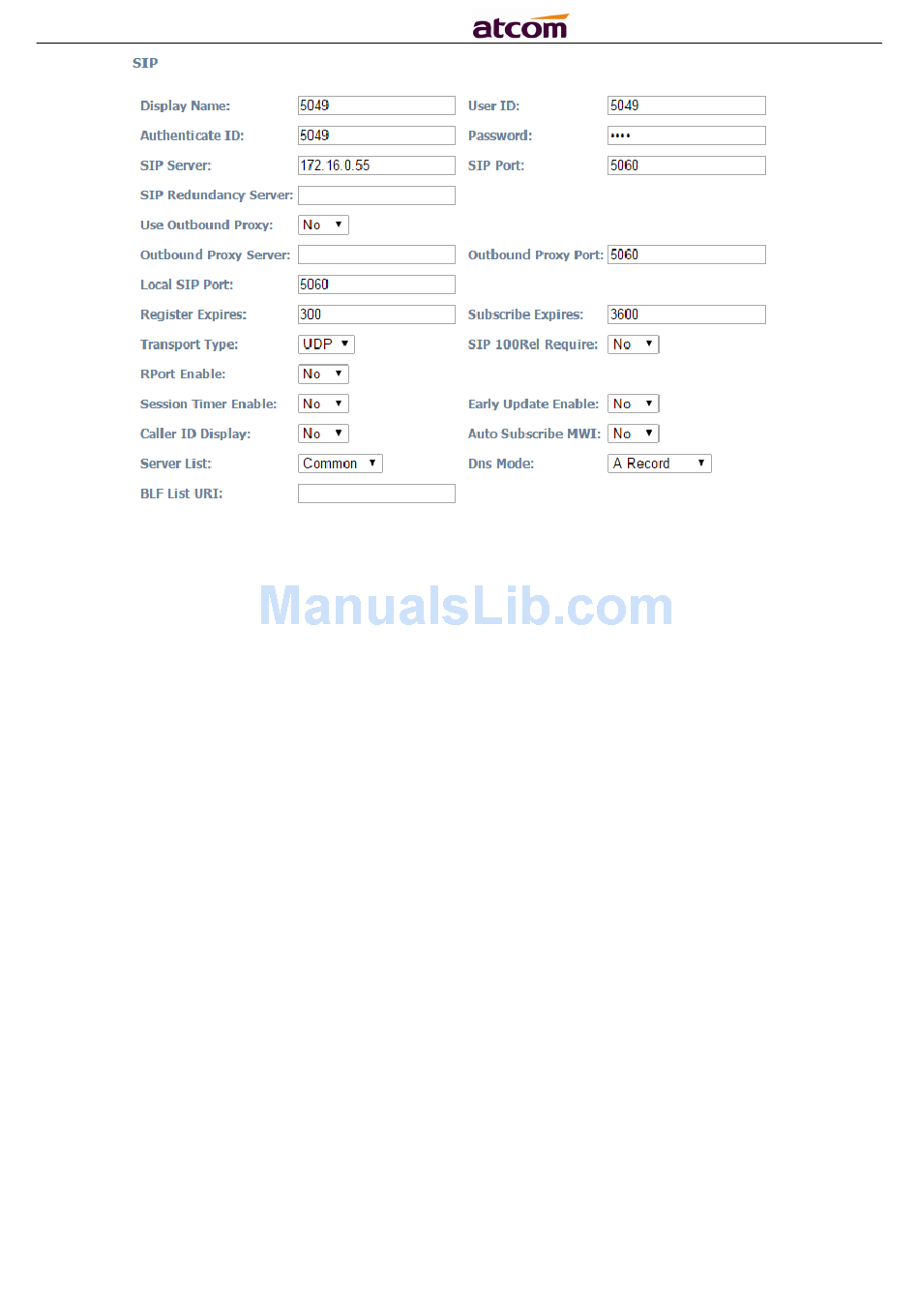

1. Display Name: This name will be displayed on the LCD. It will show the User ID
instead if leave Display Name as blank.
2. User ID: Username of sip account.
3. Authenticate ID: Normally is the same as User ID, but blank is acceptable.
4. Password: Password of SIP account.
5. SIP Server: SIP server address, support both IP address and domain name.
6. SIP Port: SIP server port, defaults to 5060.
7. SIP Redundancy Server: SIP redundancy server address. It can be configured
manually and also can be auto configured as the server address carried in the
DNS SRV record if there is a DNS which supports specifying the location of the
server or domain for SIP protocol. Only when Rainbow1 fails to register to the
SIP Server, it will try to register to the SIP Redundancy Server.
8. Use Outbound Proxy: Select "Yes" or "No" to enable or disable outbound proxy.
9. Outbound Proxy Server：Set address of outbound proxy server. All signaling
requests will be sent to outbound proxy server firstly.
10. Outbound Proxy Port: Outbound proxy server port.
11. Local SIP Port: The SIP port which used by phone, defaults to 5060
12. Register Expires: Register expiration time, defaults to 300 seconds.
13. Subscribe Expires: Subscriber expiration time, defaults to 3600 seconds.
14. Transport Type: UDP/TCP/TLS. Defaults to UDP.
15. SIP 100Rel Require: Select "Yes" or "No" to enable or disable 100Rel. If
enabled, 100rel parameters will be added to the SIP request to support PRACK.
