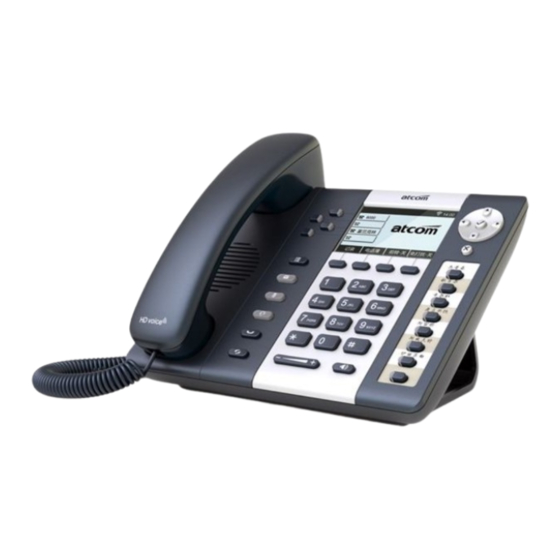

- Page 1 R2 Quick Start Guide Version 2.0 2015-10-14...
-
Page 2: Table Of Contents
R2 Quick Start Guide Content Installation and access ..................... 3 Connection ..........................3 Stand bracket installation instruction ..................3 Configuring phone ......................8 Configuring via keypad ......................9 Configuring via webpage ....................10 2.2.1 Login to web ........................10 2.2.2 Configure phone to register SIP account ................ -
Page 3: Installation And Access
R2 Quick Start Guide 1.Installation and access Connection Set up R2 as below: Stand bracket installation instruction A. Put the bottom side of the IP phone upside and press one-side joints of stand bracket into the slot, please refer the picture as below:... - Page 4 R2 Quick Start Guide B. Press the other side joints into the slot according to the direction of the arrow: C. It is the right picture after fixing the stand bracket below: ATCOM TECHNOLOGY CO., LIMITED...
- Page 5 R2 Quick Start Guide D. Disassemble the stand bracket: Push the spring joint of stand and pull the stand according to the direction of the arrow. When the joints are pulled out of the slot, you can take off the stand bracket ATCOM TECHNOLOGY CO., LIMITED...
- Page 6 R2 Quick Start Guide Programmable keys’ paster using instruction Step1. Use needle or some other tools to insert into the hole of the plastic sheet, hog the plastic sheet. Step2. Lift out the plastic sheet Step3. Take off the plastic sheet Step4.
- Page 7 R2 Quick Start Guide Rainbow E’s paster using instruction Steps to use Rainbow E’s paster are the same as programmable keys’ as below: ATCOM TECHNOLOGY CO., LIMITED...
-
Page 8: Configuring Phone
R2 Quick Start Guide 2. Configuring phone Rainbow 2 Rainbow 2 with Rainbow E ATCOM TECHNOLOGY CO., LIMITED... -
Page 9: Configuring Via Keypad
2.2 Configuring via Webpage 2.2.1 Login to web Modify your computer’s IP address to the same network as R2. Enter R2’s IP address in the web browser and press Enter, you will access to R2's user webpage without password. - Page 10 Static: If you want to set the IP as static, you should fill IP, Netmask, Gateway and DNS information. PPPoE: If R2 is connected to the modem, you should fill ADSL account and password which are assigned by your network service provider. Password Configuration Enter "Network"...
- Page 11 Enable: whether enable this SIP register. Display Name: This name will display on the screen of R2. It will display the name configured for the SIP account by the SIP server preferentially. It can also be kept blank.
- Page 12 R2 Quick Start Guide ATCOM TECHNOLOGY CO., LIMITED...
