Rainbow1 IP Phone User Manual
3. Password: The password to access the file server
4. AES Key: If the configuration file has been encrypted, the AES key will be used
to decrypt for auto-upgrading
5. Check New Config: If set this parameter as "On", the phone will do some check
for upgrading, and it will upgrade automatically once the conditions are met
6. Repeatedly: If set this parameter as "On", the phone will do some check for
upgrading after "Interval(minutes)"，and it will upgrade automatically once the
conditions are met
7. Interval(minutes) : This parameter is configurable once the Repeatedly is "On"
8. Weekly: If set this parameter as "On", the phone will do the check for
upgrading at a certain time in every week
9. Time: The time range that the phone do the check for upgrading every week,
and it's configurable once the Repeatedly is "On"
10. Day of week: The day of week that the phone do the check for upgrading
every week, and it's configurable once the Repeatedly is "On"
The sample of control file：
--------------------------------------------------------------------------------------------
<?xml version="1.0"?>
<AUTOUPDATE Model="Rainbow1">
<Config URL="http://www.atcom.com.cn/temp/$MAC.tar.gz"/>
<PhoneBook URL="tftp://192.168.1.190/phonebook.xml"/>
<Firmware MD5="cadfadfaqeqedadfadfa"
URL="http://www.atcom.com.cn/temp/Rainbow1-V1.5.2.22306.fw"/>
</AUTOUPDATE>
--------------------------------------------------------------------------------------------
$MAC.tar.gz refers to the specified files that named as the phones' MAC address，the
phone will find the tar.gz file which named as its MAC address automatically once a
phone uses this control file to upgrade the Config file at the specified location, for
example, a Rainbow4(s)'s MAC address is EA:F5:GA:54:4D:DR, the corresponding
control file should name as EAF5GA544DDR.tar.gz。
MD5 is the property of a file, and it's always used for integrity checking, you can get
it by using specified software. When upgrade the Firmware, the phone will compare
the firmware's MD5 with the specified MD5, and it will refuse to upgrade if them are
not the same.

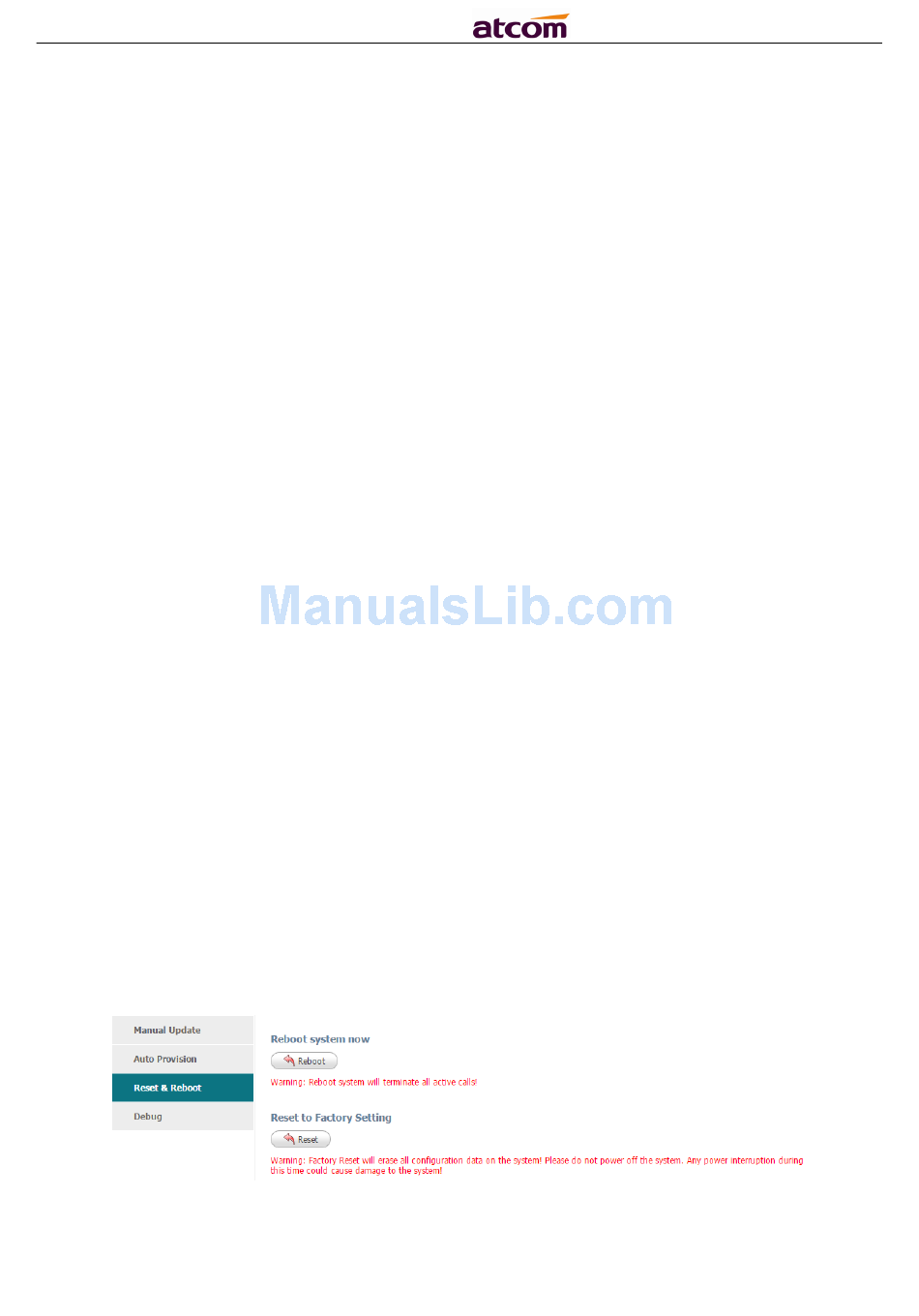

4.6.3 Reset & Reboot
1. Reboot: Reboot will terminate all active calls, and restart the phone in a several
seconds.
