CHAPTER 1 INTRODUCTION

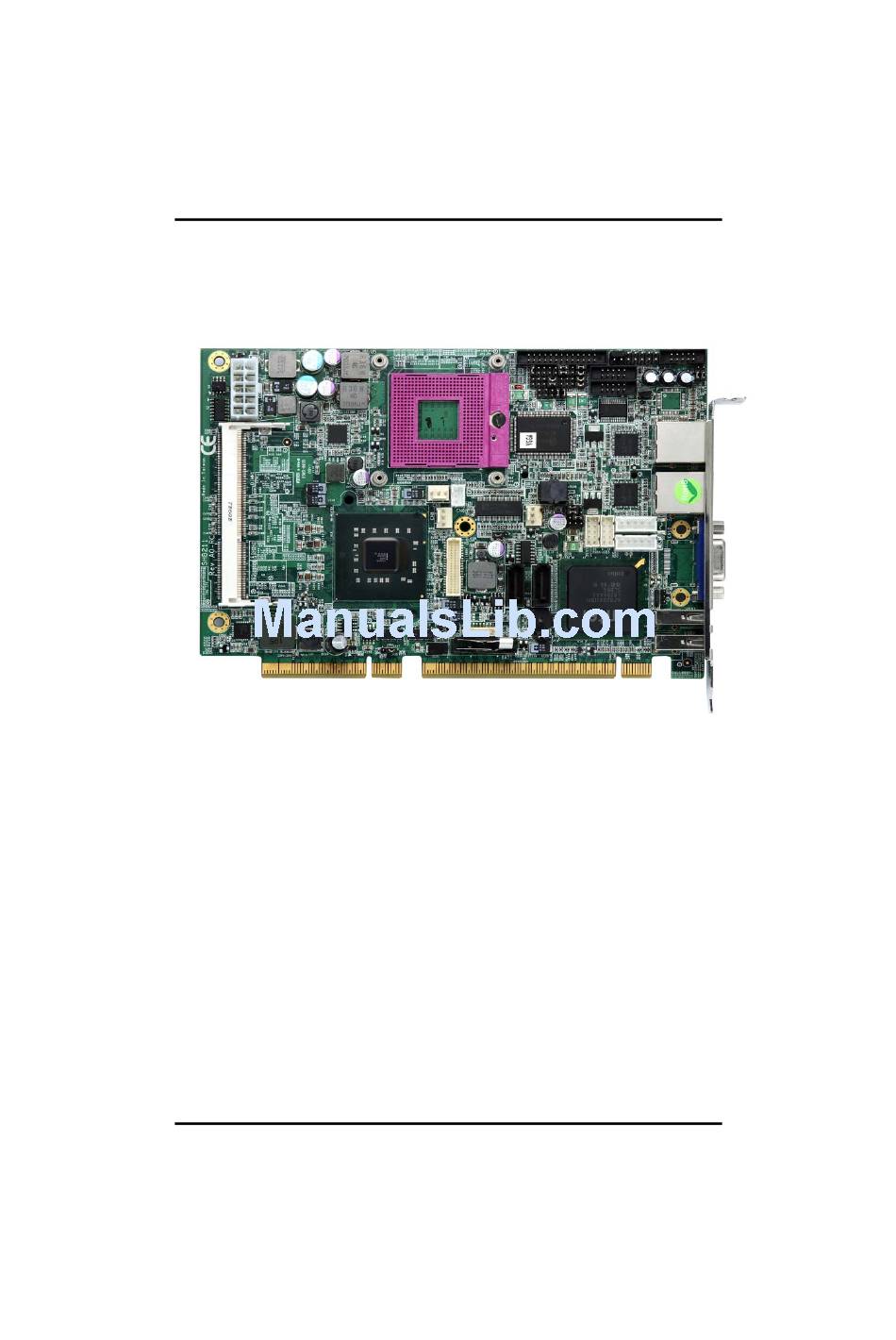

The SHB211 PICMG 1.3 half-size Single Board Computer supports
® ®
™
Socket P (478-pin) for Intel Core 2 Duo/Celeron M processors
®
with FSB 800/1066 MHz MT/s. The board integrates Intel GM45 and
ICH9M/ICH9M-E chipsets that can deliver outstanding system
performance through high-bandwidth interfaces, multiple I/O functions
for interactive applications and various embedded computing
solutions. There are two 204-pin DDR3 SODIMM sockets for dual
channel DDR3 800/1066, maximum memory capacity up to 8GB. The
board also features dual Gigabit Ethernet, two serial ATA ports at
maximum transfer rate up to 3Gbs, and RAID 0,1,5,10 (optional with
®
ICH9M-E). Six USB 2.0 high speed compliant ports and built-in Intel
HD Audio Digital Header can achieve the best stability and reliability
for industrial applications.
