(3) Configuring RAID by the RAID BIOS

Enter the RAID BIOS setup utility to configure a RAID array. Skip this

step and proceed to Section 4 if you do not want to create a RAID.

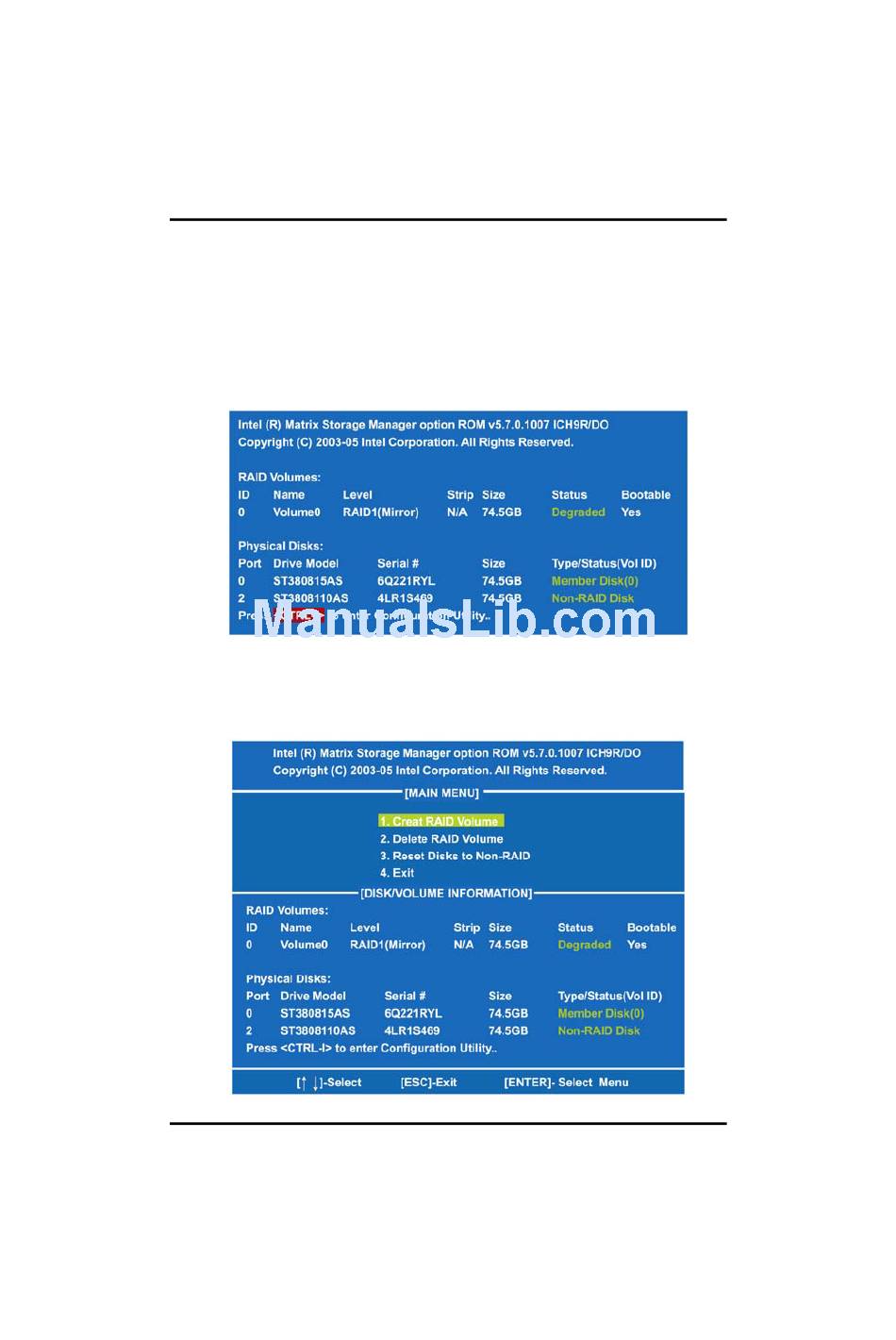

(3)-1

After the POST memory testing and before the operating

system booting, a message "Press <Ctrl-I> to enter

Configuration Utility" shows up, accordingly, press <CTRL+ I>

to enter the RAID BIOS setup utility.

(3)-2

After you press <CTRL+ I>, the Create RAID Volume screen

will appear. If you want to create a RAID array, select the

Create RAID Volume option in the Main Menu and press

ENTER.

Configuring SATA for RAID Function

SHB211 Socket P Half-Size SBC User's Manual
