SHB211 Socket P Half-Size SBC User's Manual

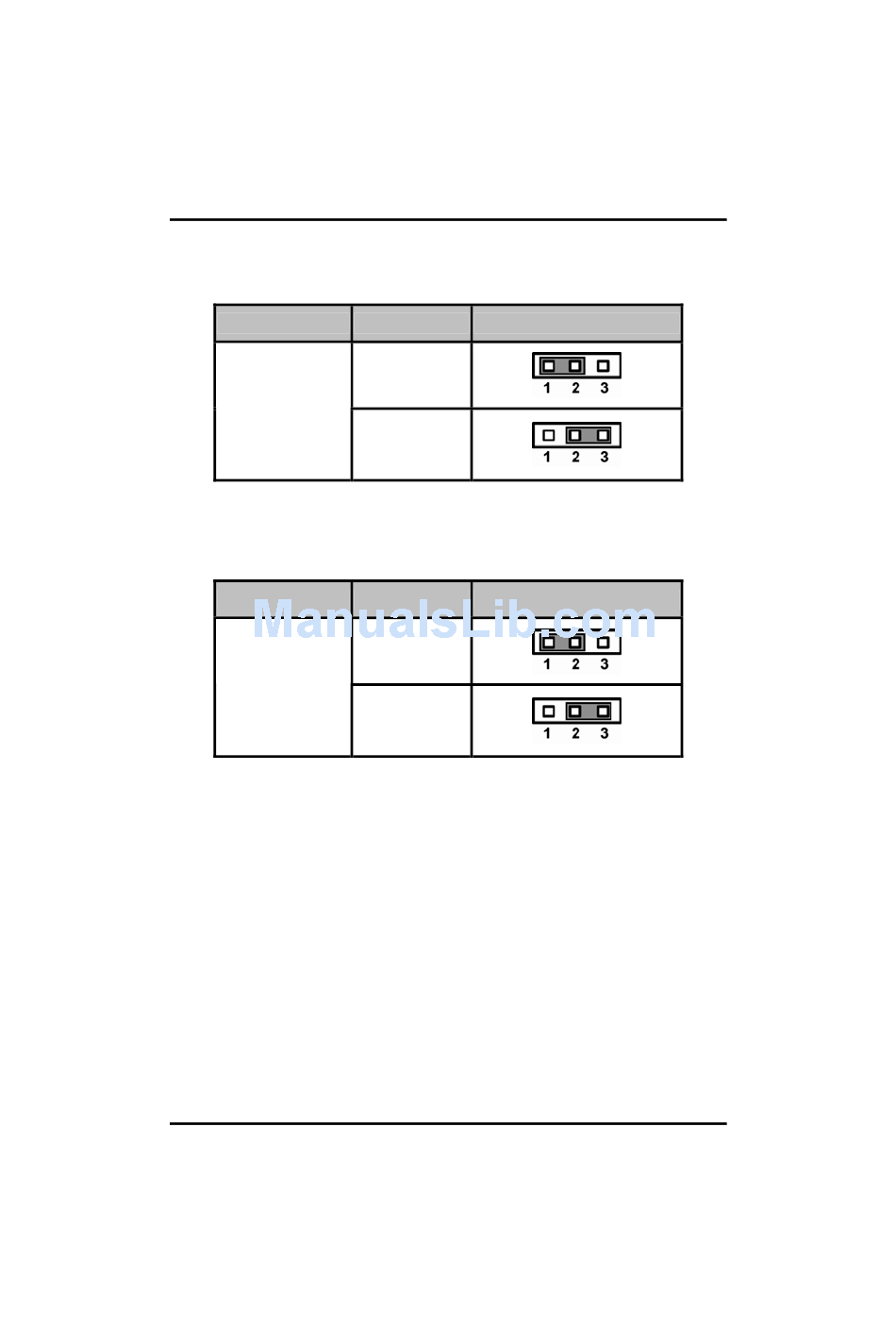

2.3.9 CMOS Clear Jumper (JP19)
You may need to use this jumper to clear the CMOS memory if
incorrect settings in the Setup Utility.
Description
CMOS Clear
2.3.10 NB PCIex16 Signal Mode Jumper (JP20-21)
This jumper is to select singal output for PCIe x16 Slot or Digital
Display Port.
Description
North Bridge
PCIEx16 Signal
Mode
16
Function
Normal (Default)
Clear CMOS
Function
Display Port
PCIEx16
(Default)
Jumper Setting
Jumper Setting
Jumpers and Connectors
