2.4.3 Print Port or Floppy Connectors (CN3)

Print Port Connector [Default]
This board has a multi-mode parallel port to support:
1. Standard mode
IBM PC/XT, PC/AT and PS/2™ compatible with bi-directional parallel
port
2. Enhanced mode
Enhance parallel port (EPP) compatible with EPP 1.7 and EPP 1.9
(IEEE 1284 compliant)
3. High speed mode
Microsoft and Hewlett Packard extended capabilities port (ECP)
IEEE 1284 compliant

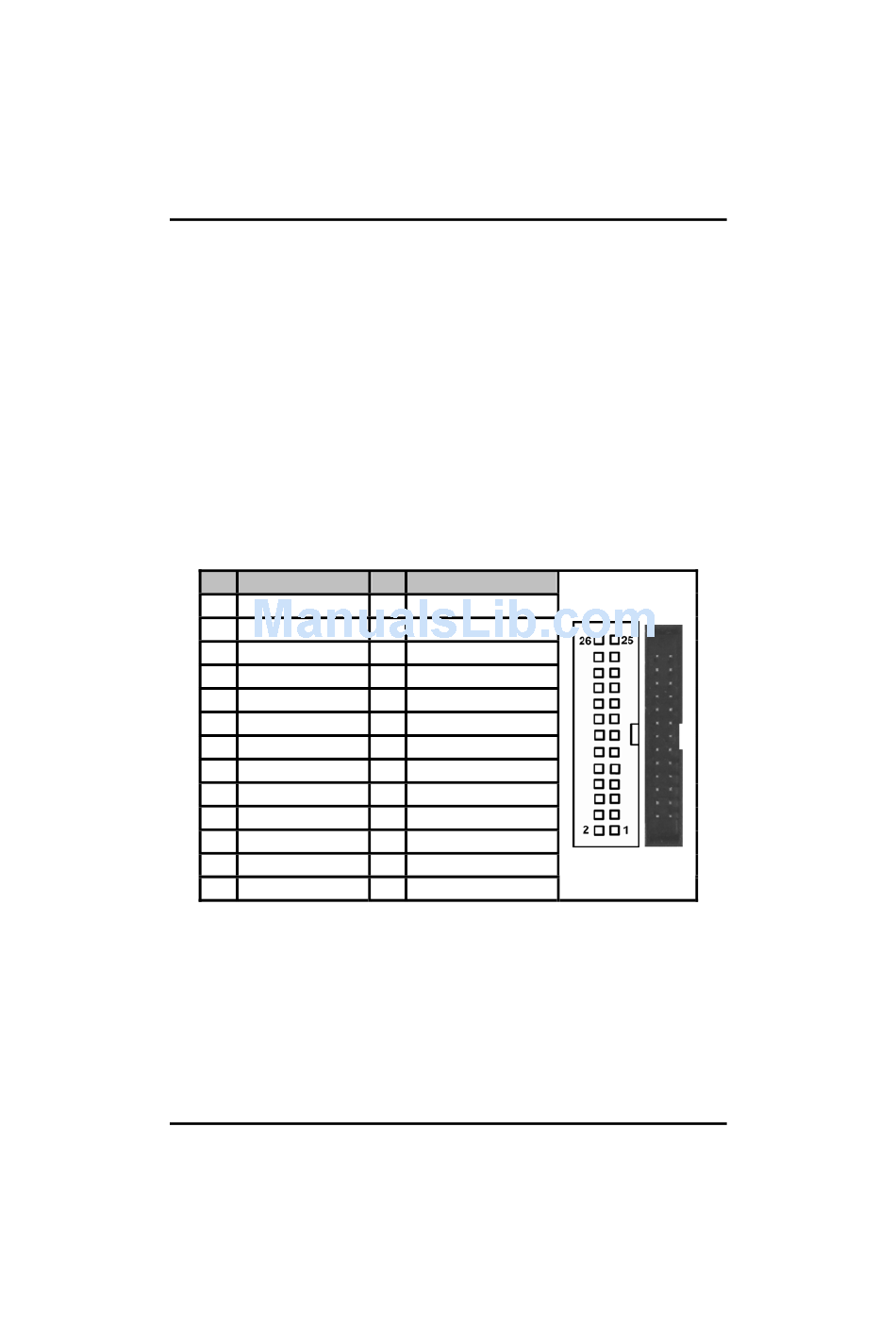

Pin Signal
1 Strobe#
3 Data 0
5 Data 1
7 Data 2
9 Data 3
11 Data 4
13 Data 5
15 Data 6
17 Data 7
19 Acknowledge#
21 Busy
23 Paper Empty#
25 Printer Select
Jumpers and Connectors
SHB211 Socket P Half-Size SBC User's Manual
Pin Signal
2 Auto Form Feed#
4 Error#
6 Initialize#
8 Printer Select In#
10 GND
12 GND
14 GND
16 GND
18 GND
20 GND
22 GND
24 GND
26 NC
