SHB211 Socket P Half-Size SBC User's Manual
4.5

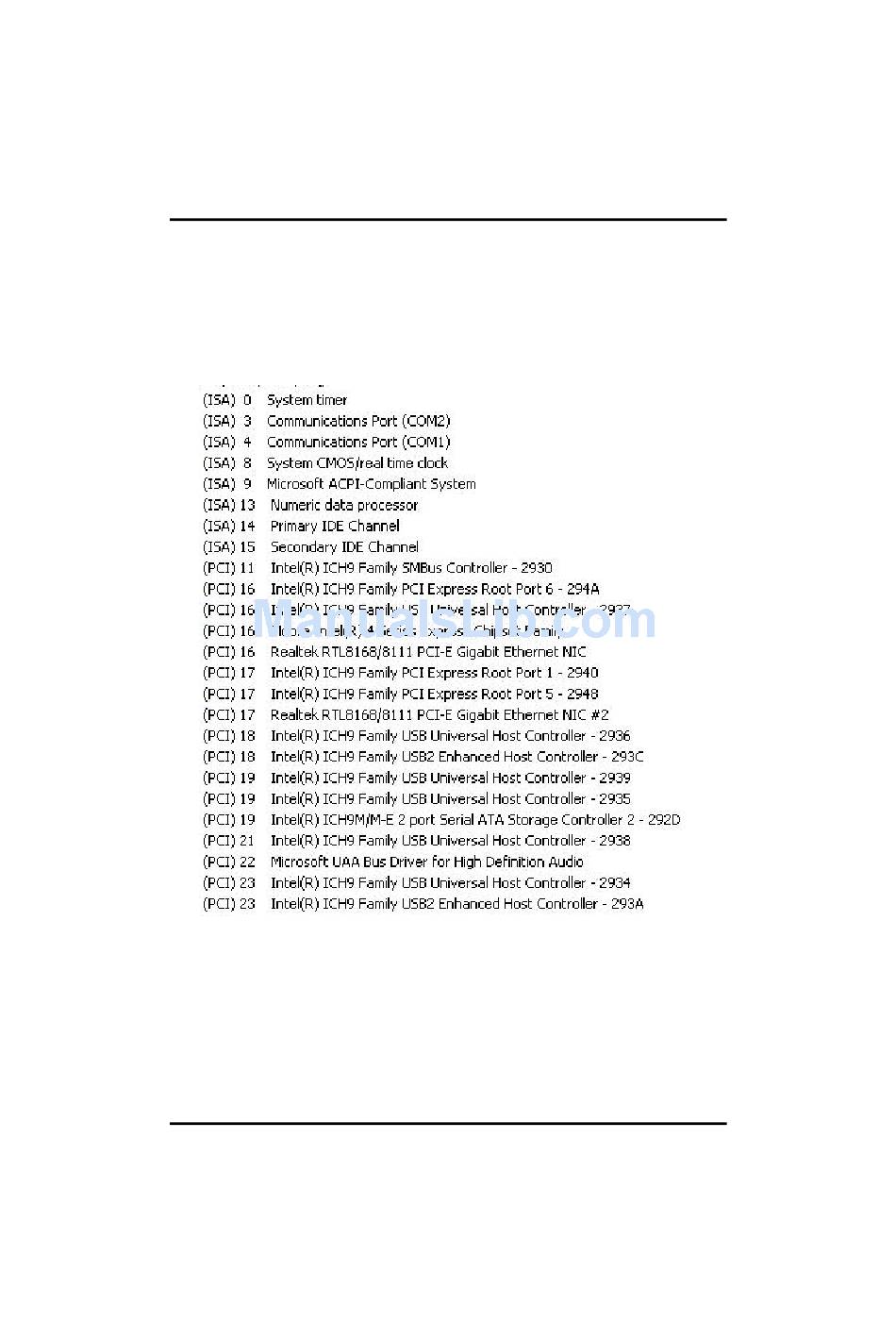

Interrupt Controller (IRQ) Map
The SHB211 Series is a 100% PC compatible control board. It
consists of 16 interrupt request lines, and four out of them can be
programmable. The mapping list of the 16 interrupt request lines is
shown as the following table.
Hardware Description
39
