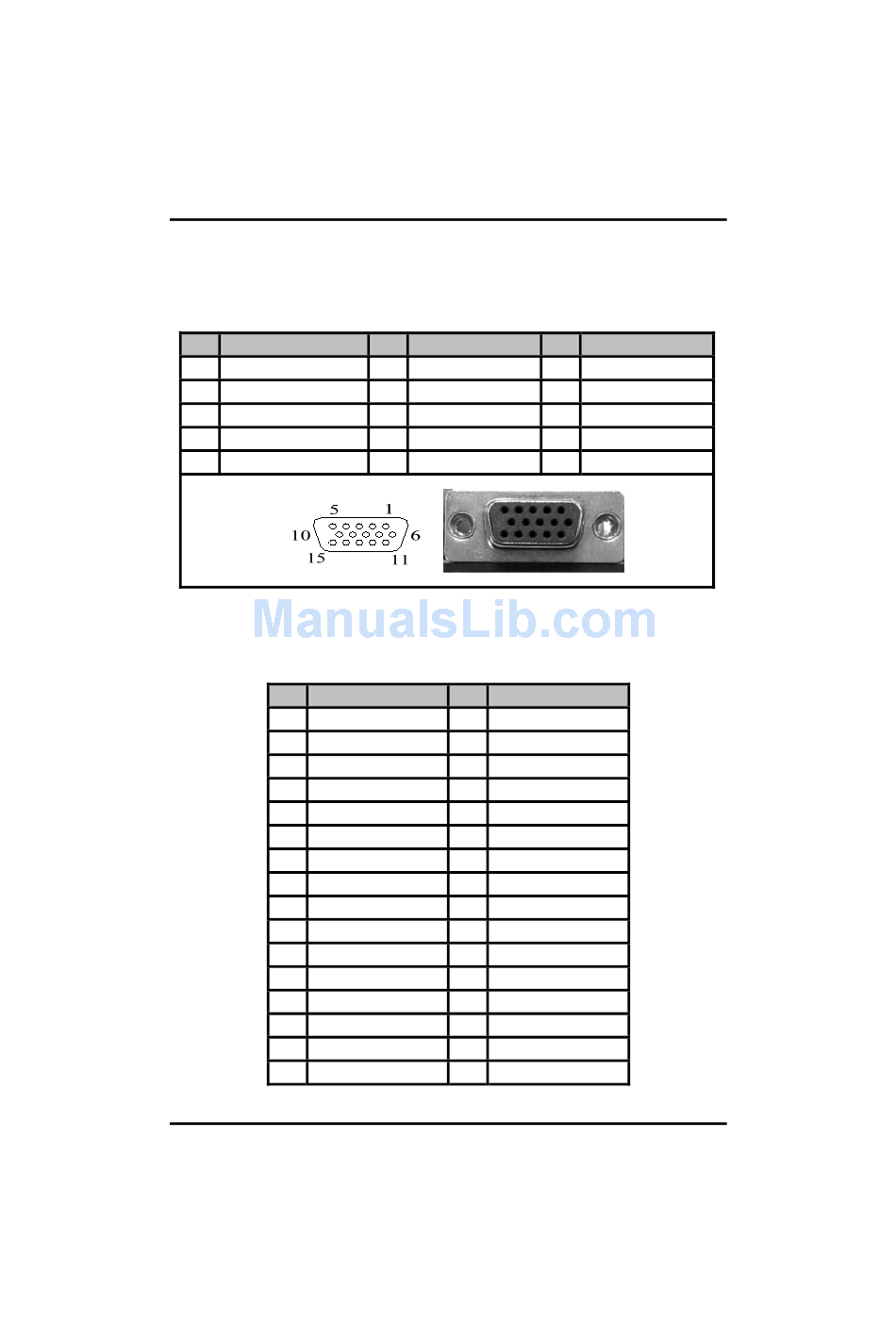

VGA Connector (SHB211VGGA, CN10)

CN10 is a standard 15-pin pin DB15 connector commonly used for the
CRT VGA display.
Pin Signal
1 Red
4 N/A
7 AGND
10 AGND
13 Horizontal Sync
2.4.9

JST Connector for LVDS Flat Panel (CN11)

Pin
1 VCCM
3 VCCM
5 VCCM
7 N.C.
9 GND
11 Channel B D3-
13 Channel B D3+
15 GND
17 Channel B CLK-
19 Channel B CLK+
21 GND
23 Channel A D0-
25 Channel A D0+
27 GND
29 Channel A D1-
31 Channel A D1+
Jumpers and Connectors
SHB211 Socket P Half-Size SBC User's Manual
Pin Signal
2 Green
5 AGND
8 AGND
11 N/A
14 Vertical Sync
Signal Pin
2 VCCM
4 VCCM
6 VCCM
8 N.C.
10 GND
12 Channel B D0-
14 Channel B D0+
16 GND
18 Channel B D1-
20 Channel B D1+
22 GND
24 Channel B D2-
26 Channel B D2+
28 GND
30 Channel A D3-
32 Channel A D3+
Pin Signal
3 Blue
6 CRT_DET#
9 VGA_5V
12 DDC DAT
15 DDC CLK
Signal
25
