AXIOMTEK SHB211 Series Quick Installation Manual

SHB211 Series Quick Installation Guide
LED will flash when the HDD is being accessed. Pins 13 and 14 can be
connected to the hard disk drive and front panel HDD LED.
V.

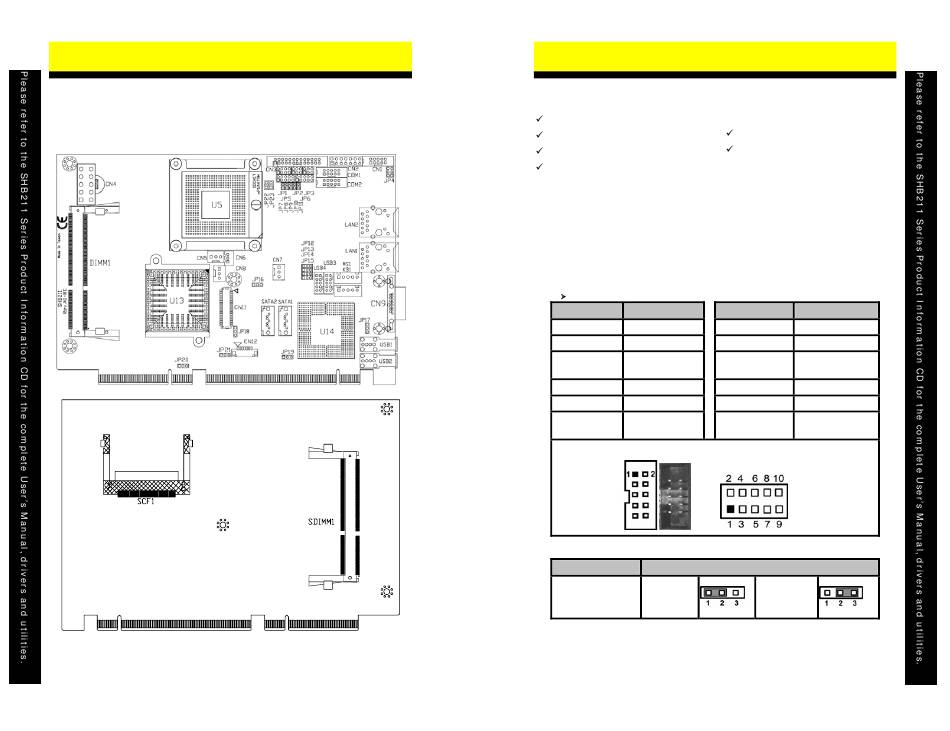

Board Layout
4
©
Copyright 2009 AXIOMTEK Co., Ltd.
Version A1 March 2009
Printed in Taiwan
9418C211010E
SHB211 Series Quick Installation Guide
I.
Checklist
SHB211 Board x 1
Quick Installation Guide x 1
Product Information CD-ROM x 1
COM, Printer Extension Cables with
Note: Please contact your local vendors if any damaged or missing items. DO NOT
apply power to the board if any damaged components.
II.
Jumper Settings
Before applying the power to SHB211 Series, please make sure all
jumper settings are defaulted as the following table:
COM1~COM2 Mode Select for Type Jumpers: JP5, JP6
COM1-PIN JP6
Pin 1=12V Short 1-3
Pin 1=5V Short 3-5 or 5-7
*Pin 1=DCD Short 7-9
(Default)
Pin 8=12V Short 2-4
Pin 8=5V Short 4-6 or 6-8
*Pin 8=RI Short 8-10
(Default)
COM PORT SLOT
Description
Normal
CMOS Clear (JP19)
(Default)
©
Copyright 2009 AXIOMTEK Co., Ltd.
Version A1 March 2009
Printed in Taiwan
9418C211010E
Bracket x 1
2-pin Mini Jumper Caps x 12
SATA Cable x 1
COM2 -PIN JP5
Pin 1=12V Short 1-3
Pin 1=5V Short 3-5 or 5-7
*Pin 1=DCD Short 7-9
(Default)
Pin 8=12V Short 2-4
Pin 8=5V Short 4-6 or 6-8
*Pin 8=RI Short 8-10
(Default)
JP5, JP6
Jumper Setting
Clear CMOS
1
