Installing the Memory

The board supports two 204-pin DDR3 SO-DIMM memory sockets with
maximum memory capacity up to 8GB.
Please follow steps below to install the memory modules:

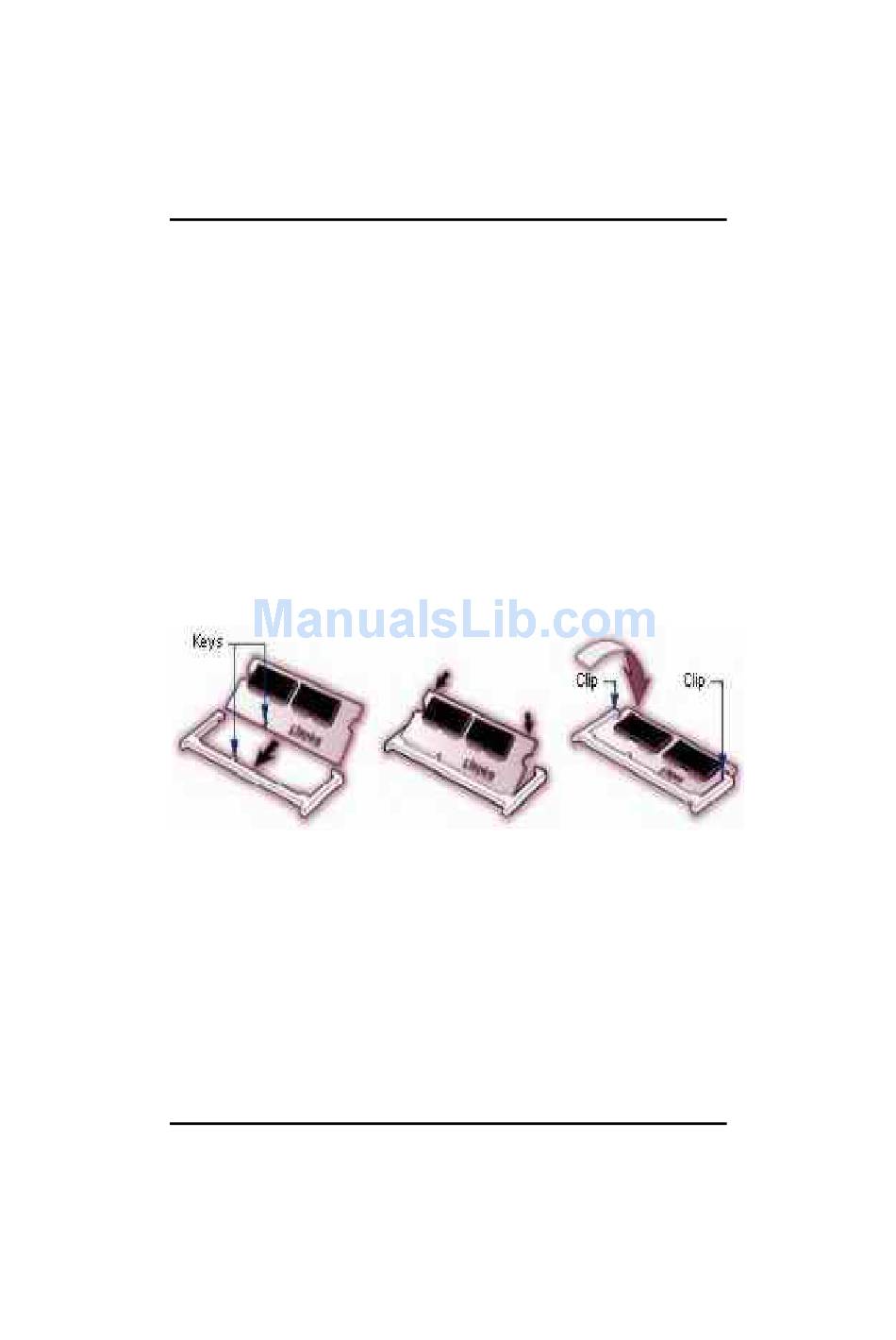

1 Push down latches on each side of the SO-DIMM socket.
2 Align the memory module with the socket that notches of
memory module must match the socket keys for a correct
intallation.
3 Install the memory module into the socket and push it firmly
down until it is fully seated. The socket latches are levered
upwards and clipped on to the edges of the SO-DIMM.
4 Install any remaining SO-DIMM modules.
