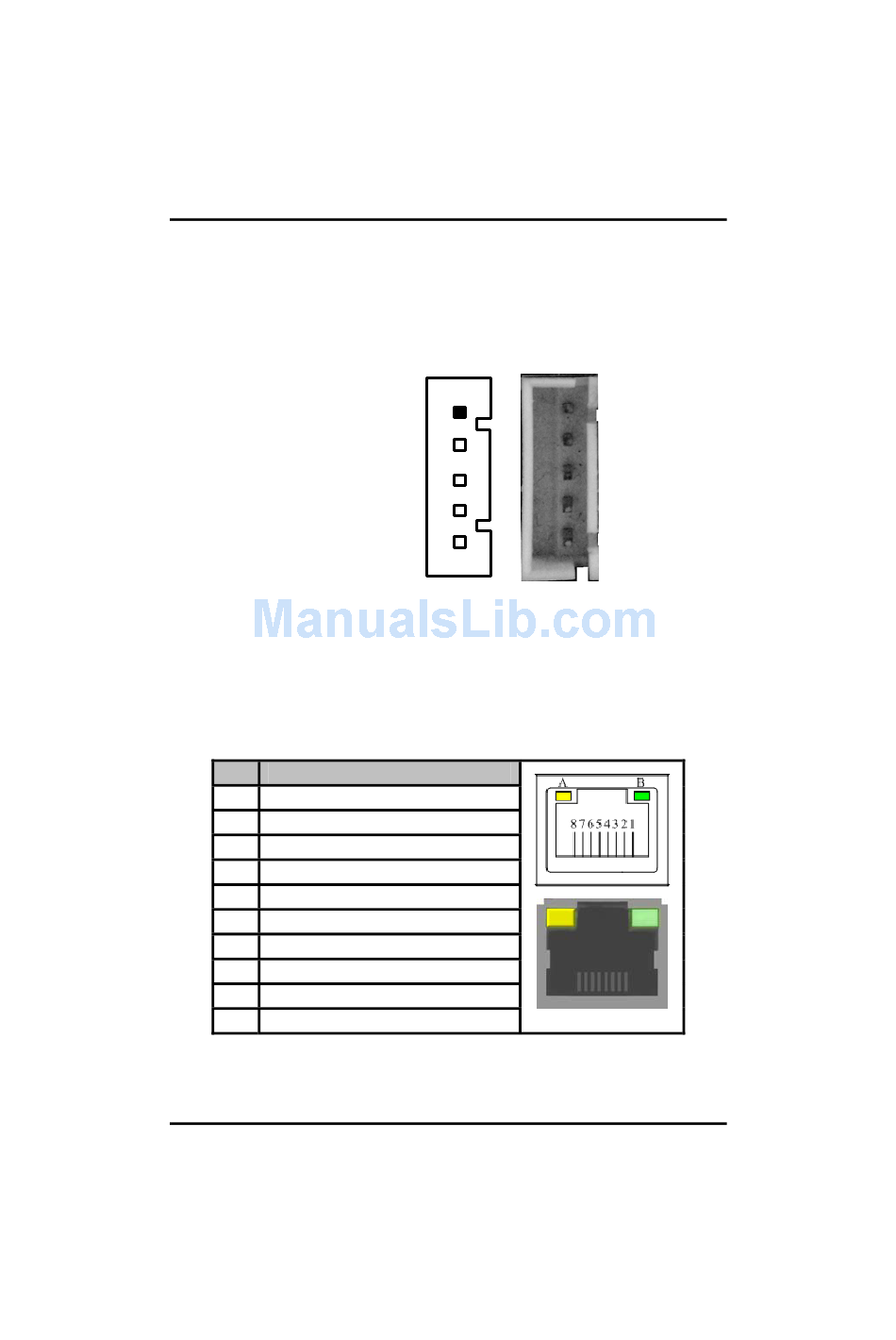

2.4.11 External Mouse/Keyboard Connectors
(MS1/KB1)
The board provides the Keyboard (KB1)/ Mouse (MS1) interface with a
5-pin connector.
No Connection

2.4.12 Ethernet RJ-45 Connectors (LAN1/LAN2)

The RJ-45 connector LAN1/LAN2 is for Ethernet. To connect the board
to 100-Base-T or 1000-Base-T hub, just plug one end of the cable into
LAN1 or LAN2, and then, connect the other end (phone jack) to a 100-
Base-T hub or 1000-Base-T hub.
Pin
1 Tx+ (Data transmission positive)
2 Tx- (Data transmission negative)
3 Rx+(Data reception positive)
4 RJ-1(For 100 base T-Only)
5 RJ-1(For 100 base T-Only)
6 Rx- (Data reception negative)
7 RJ-1(For 100 base T-Only)
8 RJ-1(For 100 base T-Only)
A Active LED
B 100/1000 LAN LED
Jumpers and Connectors
SHB211 Socket P Half-Size SBC User's Manual
Clock 1
Data 2
3
GND 4
Power 5
Signal
27
