SHB211 Socket P Half-Size SBC User's Manual
2.4.7

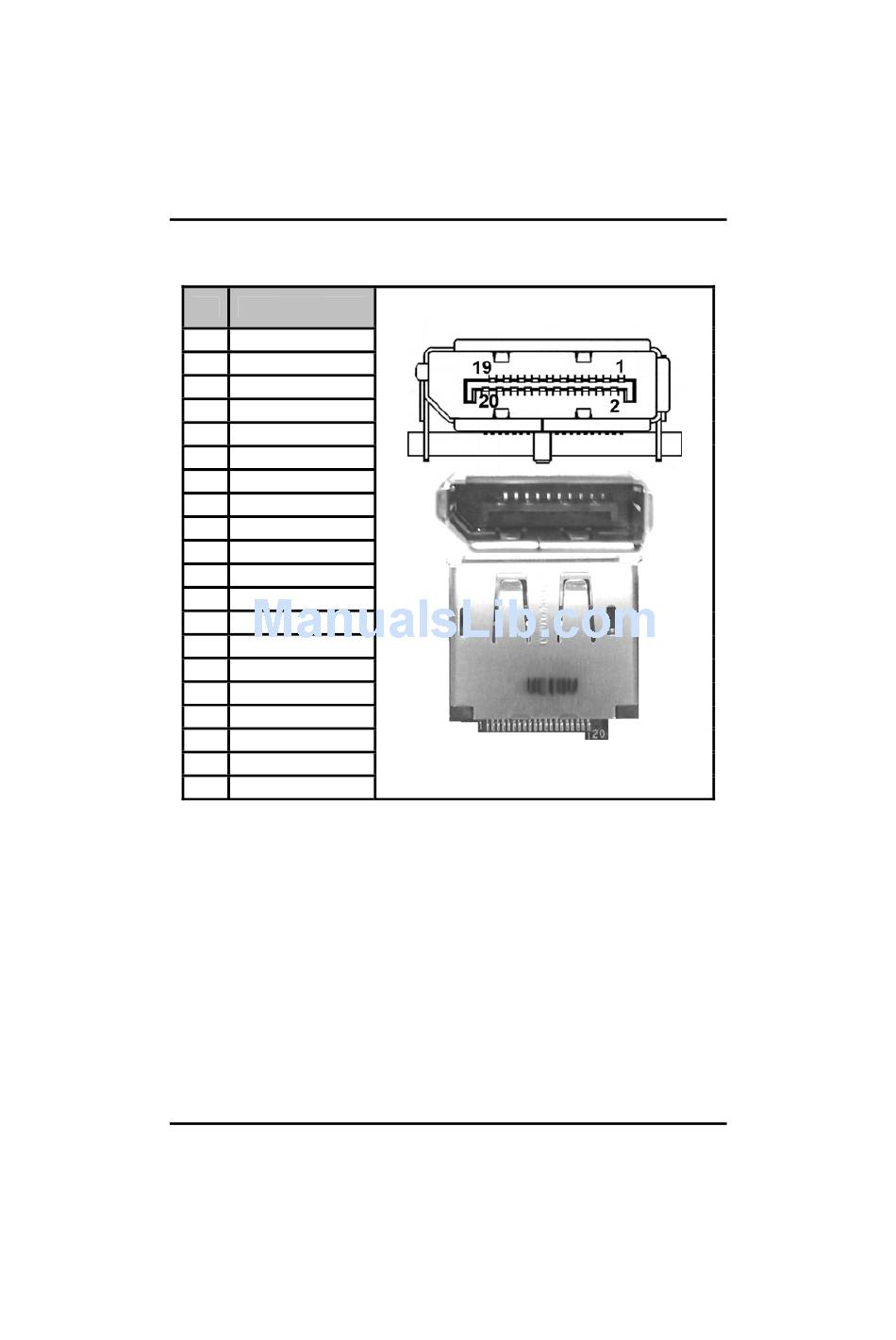

Display Port Connector (SHB211PGGA, CN9)
Pin
Signal
1
DPB_LANE0
2
GND
3
DPB_LANE0#
4
DPB_LANE1
5
GND
6
DPB_LANE1#
7
DPB_LANE2
8
GND
9
DPB_LANE2#
10
DPB_LANE3
11
GND
12
DPB_LANE3#
13
GND
14
GND
15
DPB_AUX
16
GND
17
DPB_AUX#
18
DPB_HPDE
19
N.C.
20
3.3V
24
1
20
Jumpers and Connectors
