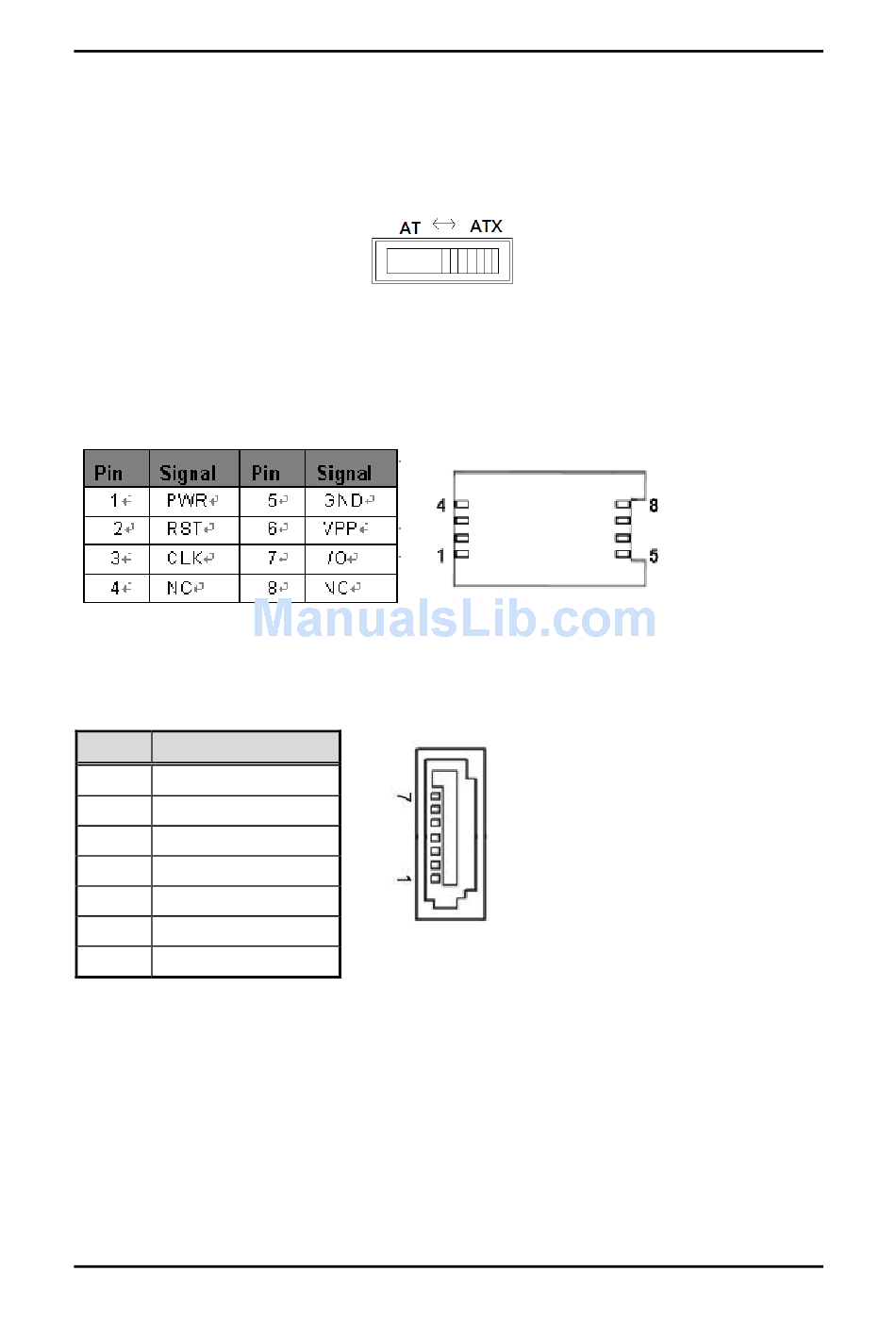

3.3.12 AT/ATX Switch

If you set AT/ATX switch to AT mode, the system will be automatically power on without
pressing soft power button during power input; we can use this switch to achieve auto power
on demand.

3.3.13 SIM Card Slots

eBOX670-883-FL includes one SIM slots on the bottom side of the system for inserting
SIM Card. It is mainly used in 3G wireless network application.

3.3.14 Serial ATA Connectors (SATA1-SATA2)

These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for
high-speed SATA interfaces. They are computer bus interfaces for connecting to devices such
as hard disk drives. This board has two SATA 3.0 ports with 6Gb/s performance.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
26
Jumper Setting & Connector
