<< HDD-B >>

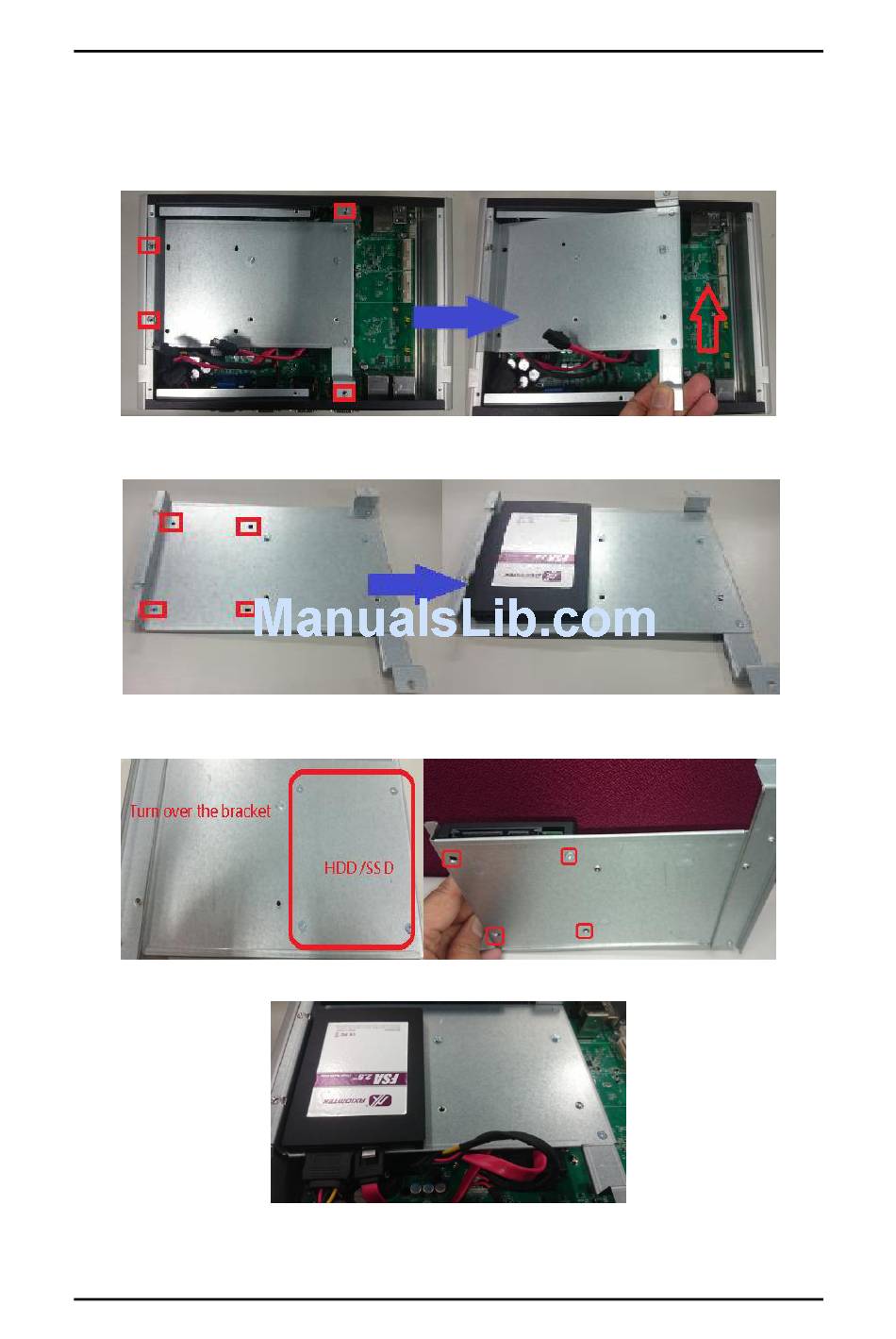

Step 1 Please find the HDD bracket location then loosen four screws of HDD
bracket to take out it.
Step 2 You can refer to below photo to find out four screw holes and then set
your HDD on bracket.
Step 3 Then turn the bracket upside down then fasten screws wit h your 2.5"
HDD/SSD. Connect SATA and Power cables.
Step 4 Finally, set the bracket into chassis then fasten screws to fix it.
Hardware Installation
eBOX670-883-FL Series User's Manual
13
