Chapter 1 Introduction; General Description - AXIOMTEK eBOX670-883-FL Series User Manual

This chapter contains general information and detailed specifications of the eBOX670-883-FL.
The Chapter 1 includes the following sections:


General Description

 System Specifications
 Dimensions

I/O Outlets
 Packing List
 Model List

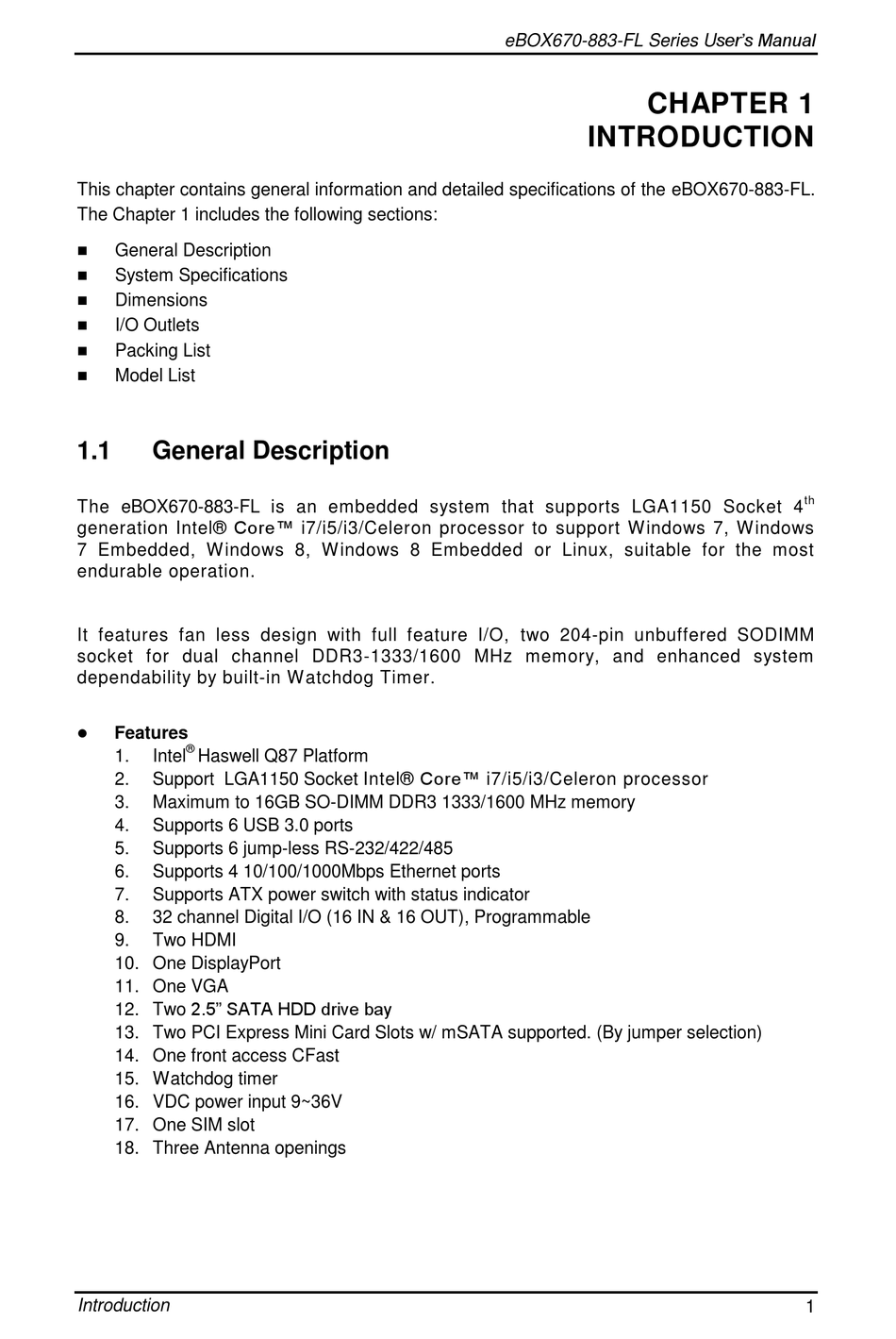

1.1 General Description
The eBOX670-883-FL is an embedded system that supports LGA1150 Socket 4
generation Intel® Core™ i7/i5/i3/Celeron processor to support W indows 7, W indows
7 Embedded, W indows 8, W indows 8 Embedded or Linux, suitable for the most
endurable operation.
It features fan less design with full feature I/O, two 204-pin unbuffered SODIMM
socket for dual channel DDR3-1333/1600 MHz memory, and enhanced system
dependability by built-in W atchdog Timer.

Features
®
1. Intel Haswell Q87 Platform
Support LGA1150 Socket Intel® Core™ i7/i5/i3/Celeron processor
2.
3. Maximum to 16GB SO-DIMM DDR3 1333/1600 MHz memory
4. Supports 6 USB 3.0 ports
5. Supports 6 jump-less RS-232/422/485
6. Supports 4 10/100/1000Mbps Ethernet ports
7. Supports ATX power switch with status indicator
8. 32 channel Digital I/O (16 IN & 16 OUT), Programmable
9. Two HDMI
10. One DisplayPort
11. One VGA
12. Two 2.5" SATA HDD drive bay
13. Two PCI Express Mini Card Slots w/ mSATA supported. (By jumper selection)
14. One front access CFast
15. Watchdog timer
16. VDC power input 9~36V
17. One SIM slot
18. Three Antenna openings
