eBOX670-883-FL Series User's Manual

2.2

Installing the Express Mini Card

Step 1 Turn off the system, and unplug the power cord.

Step 2

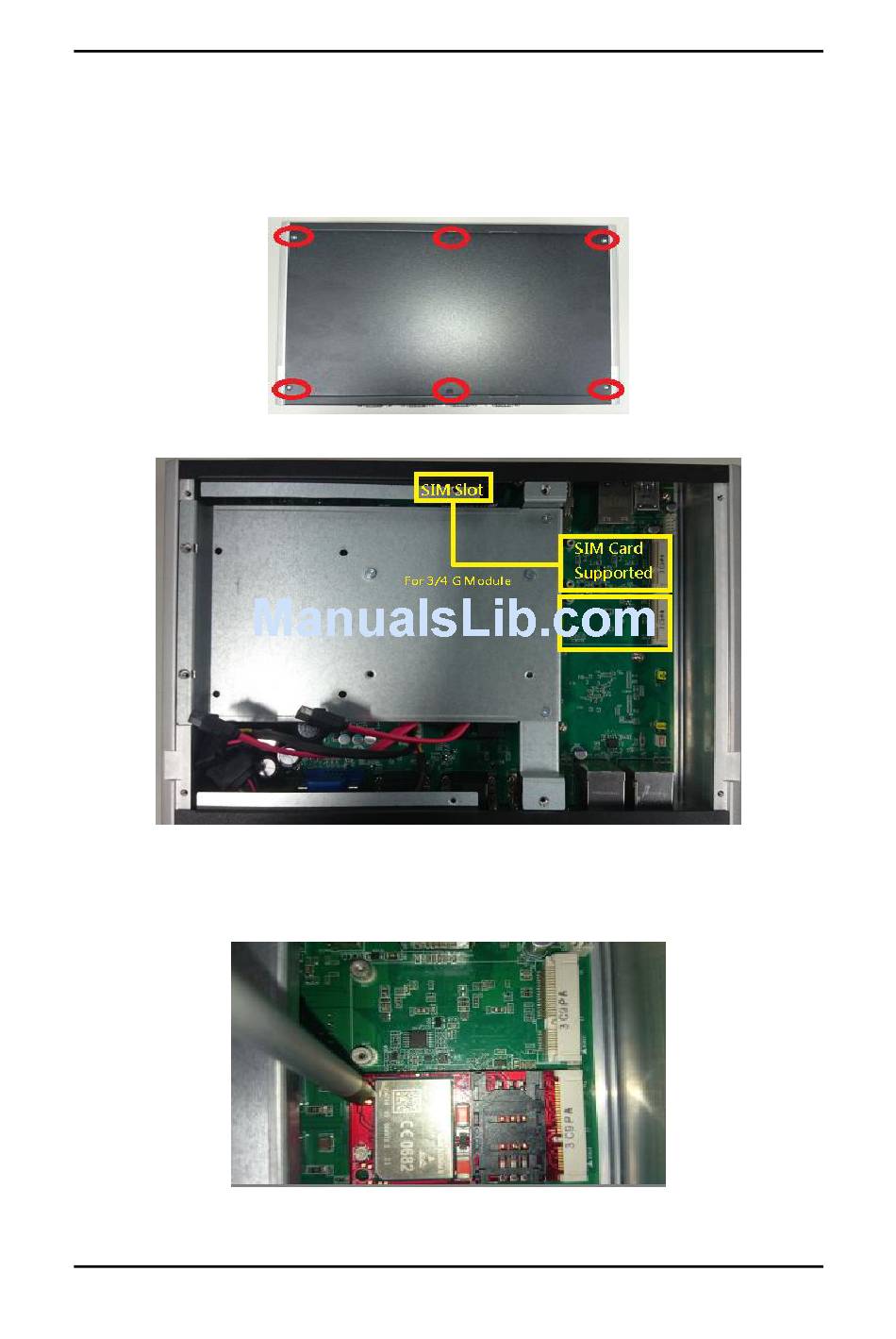

Turn the system upside down to locate screws at the bottom, loosen

screws.

Step 3 Remove the top cover then find Mini Card location.

Step 4 Please follow your requirement to connect PCI Express Mini Card

module, EX: 3G/4G, WIFI, mSATA and GPS/Bluetooth modules.

Slide Mini card into Mini Card slot with caution , and fasten screw of

Express Mini Card.

Step 5 Assembly the Bottom Cover back and fasten all screws.

Hardware Installation
