Proper jumper settings configure the eBOX670-883-FL to meet your application purpose. We
are herewith listing a summary table of all jumpers and default settings for onboard devices,
respectively.
3.1
Jumper & Connector Location
Note: We strongly recommended that you should not modify any unmentioned
jumper setting without Axiomtek FAE's instruction. Any modification
without instruction might cause system to become damage.
Jumper Setting & Connector
JUMPER SETTING & CONNECTOR

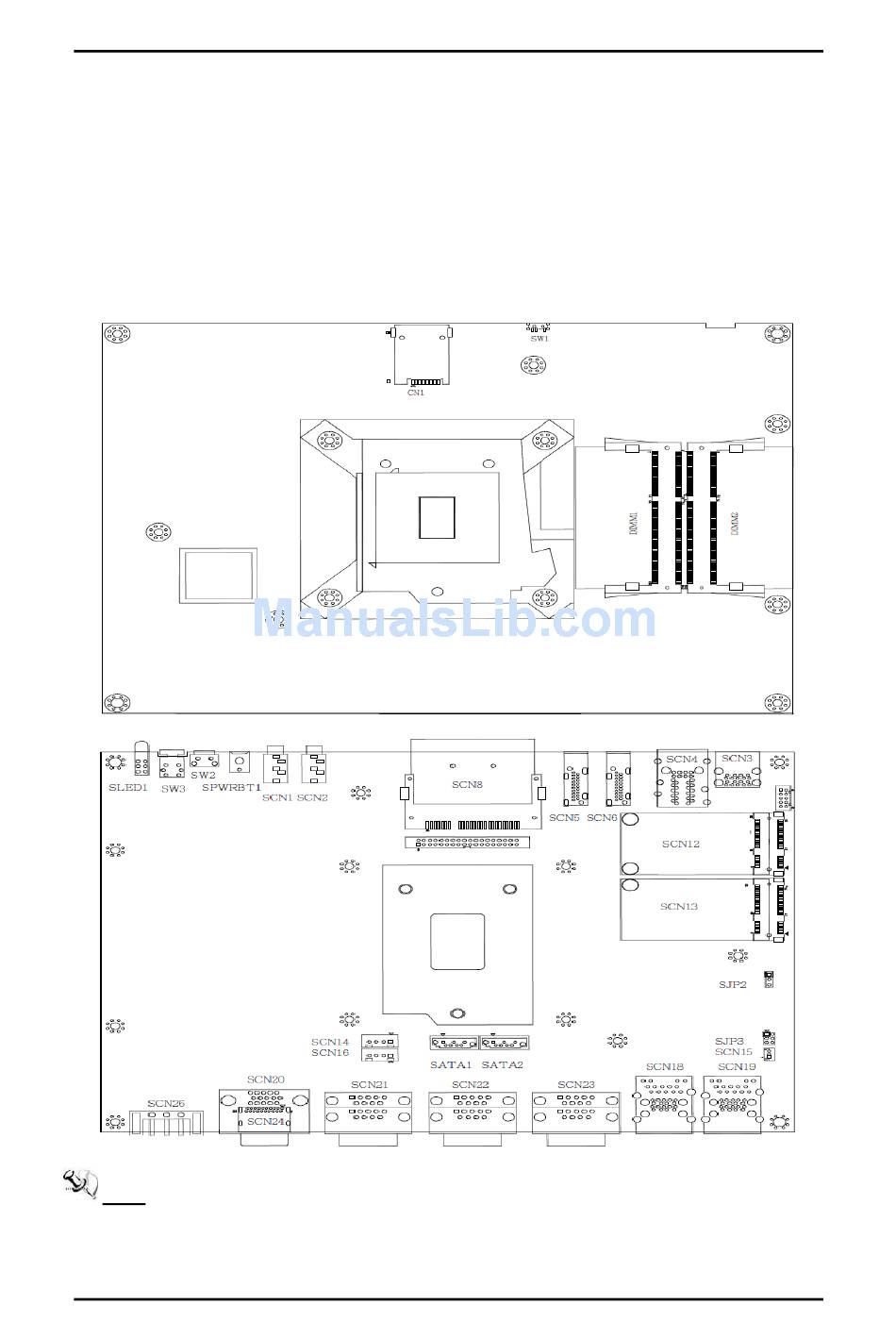

SBC87883 Top Side
SBC87883 Bottom Side
eBOX670-883-FL Series User's Manual
CHAPTER 3
