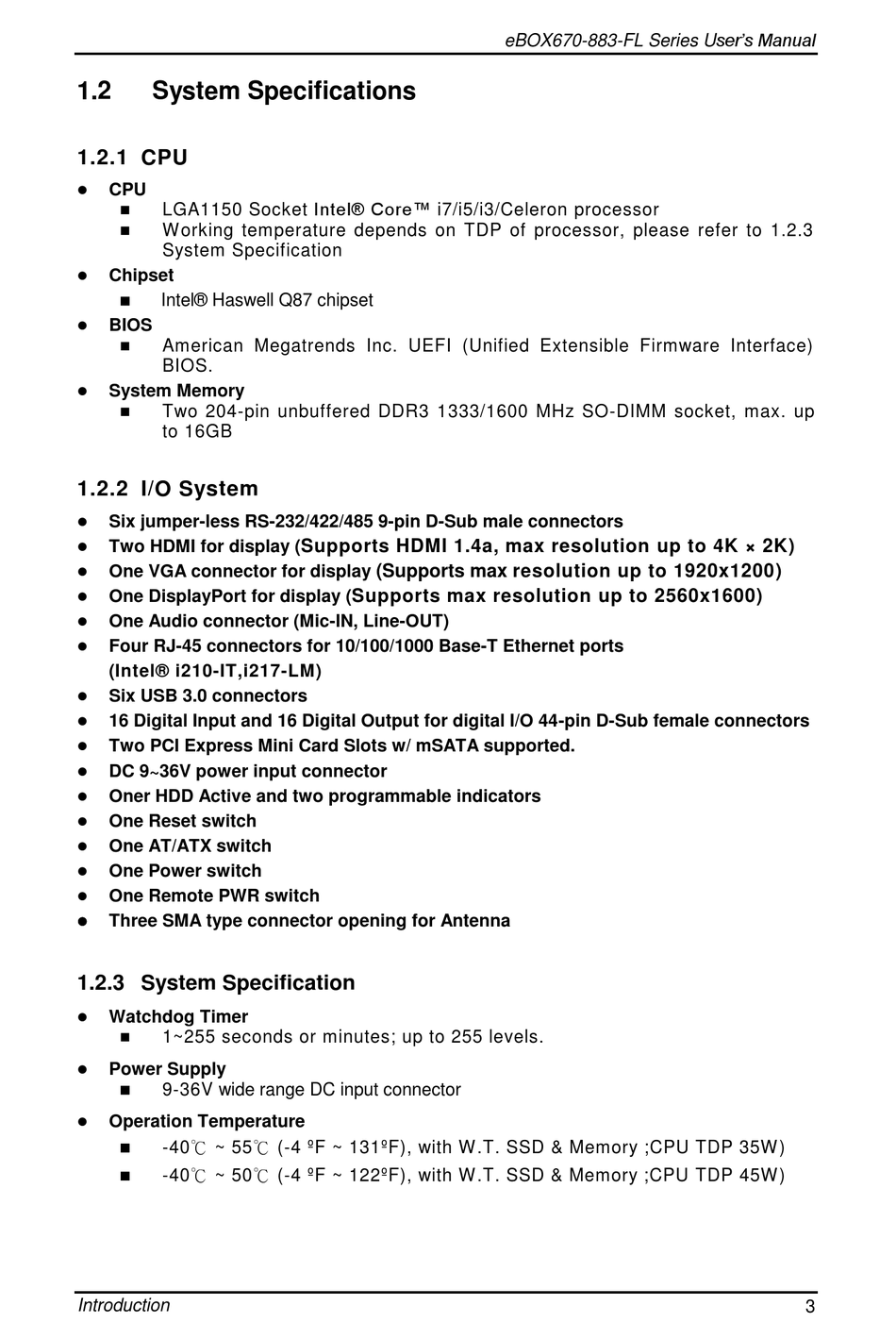

1.2

System Specifications

1.2.1 CPU


CPU
LGA1150 Socket Intel® Core™ i7/i5/i3/Celeron processor

 W orking temperature depends on TDP of processor, please refer to 1.2.3

System Specification

 Chipset
 Intel® Haswell Q87 chipset

BIOS
 American Megatrends Inc. UEFI (Unified Extensible Firmware Interface)
BIOS.

System Memory
 Two 204-pin unbuffered DDR3 1333/1600 MHz SO-DIMM socket, max. up
to 16GB

1.2.2 I/O System

 Six jumper-less RS-232/422/485 9-pin D-Sub male connectors
 Two HDMI for display (
 One VGA connector for display
 One DisplayPort for display (
 One Audio connector (Mic-IN, Line-OUT)
 Four RJ-45 connectors for 10/100/1000 Base-T Ethernet ports
(Intel® i210-IT,i217-LM)
 Six USB 3.0 connectors
 16 Digital Input and 16 Digital Output for digital I/O 44-pin D-Sub female connectors
 Two PCI Express Mini Card Slots w/ mSATA supported.
 DC 9~36V power input connector
 Oner HDD Active and two programmable indicators
 One Reset switch
 One AT/ATX switch
 One Power switch
 One Remote PWR switch

Three SMA type connector opening for Antenna
1.2.3 System Specification
 Watchdog Timer
 1~255 seconds or minutes; up to 255 levels.
 Power Supply
 9-36V wide range DC input connector

Operation Temperature
 -40℃ ~ 55℃ (-4 ºF ~ 131ºF), with W .T. SSD & Memory ;CPU TDP 35W )

-40℃ ~ 50℃ (-4 ºF ~ 122ºF), with W .T. SSD & Memory ;CPU TDP 45W )
Introduction
Supports HDMI 1.4a, max resolution up to 4K × 2K)
(Supports max resolution up to 1920x1200)
Supports max resolution up to 2560x1600)
eBOX670-883-FL Series User's Manual
3
