3

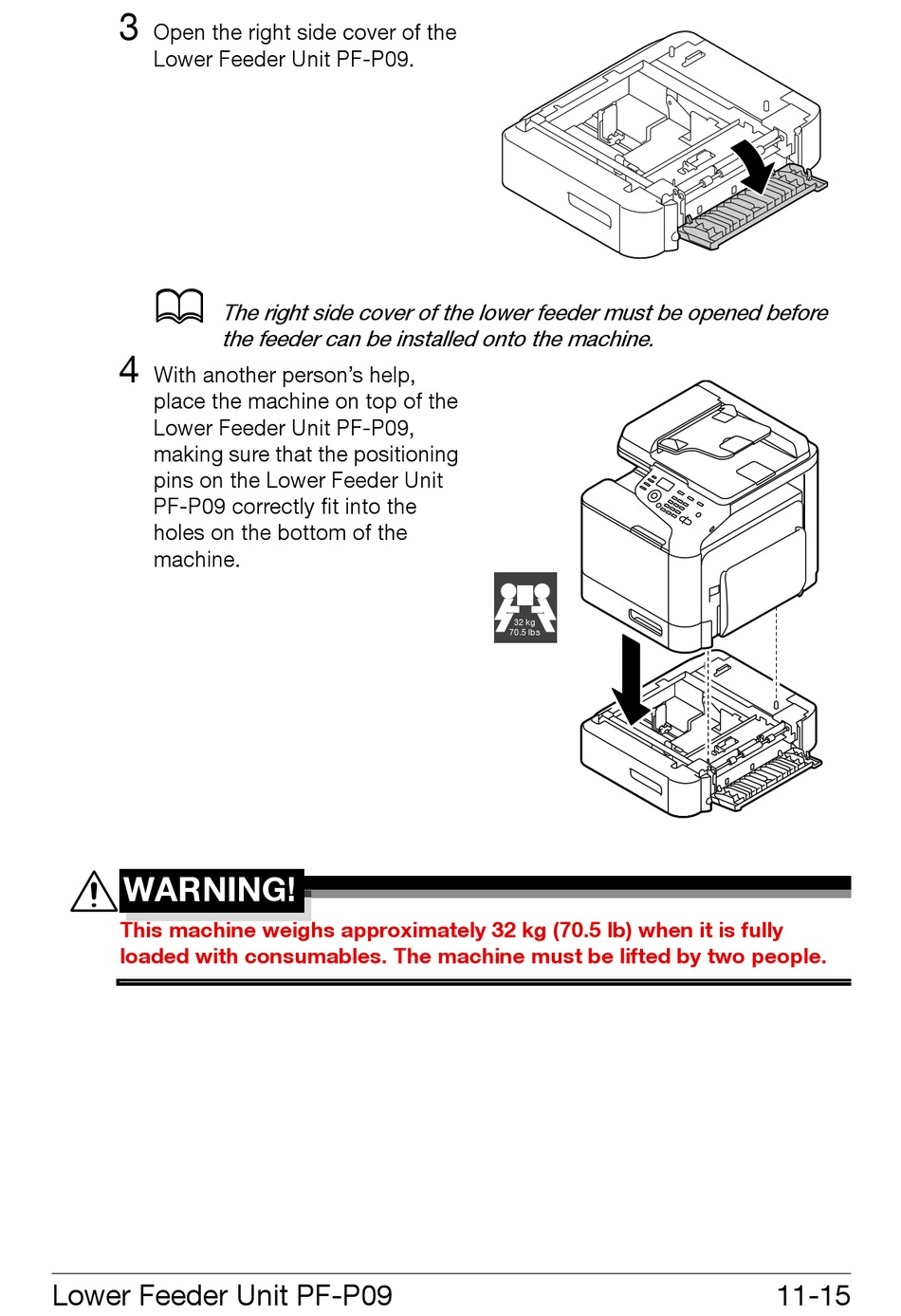

Open the right side cover of the
Lower Feeder Unit PF-P09.
d
The right side cover of the lower feeder must be opened before
the feeder can be installed onto the machine.
4
With another person's help,
place the machine on top of the
Lower Feeder Unit PF-P09,
making sure that the positioning
pins on the Lower Feeder Unit
PF-P09 correctly fit into the
holes on the bottom of the
machine.
WARNING!
This machine weighs approximately 32 kg (70.5 lb) when it is fully
loaded with consumables. The machine must be lifted by two people.
Lower Feeder Unit PF-P09
32 kg
70.5 lbs
11-15
