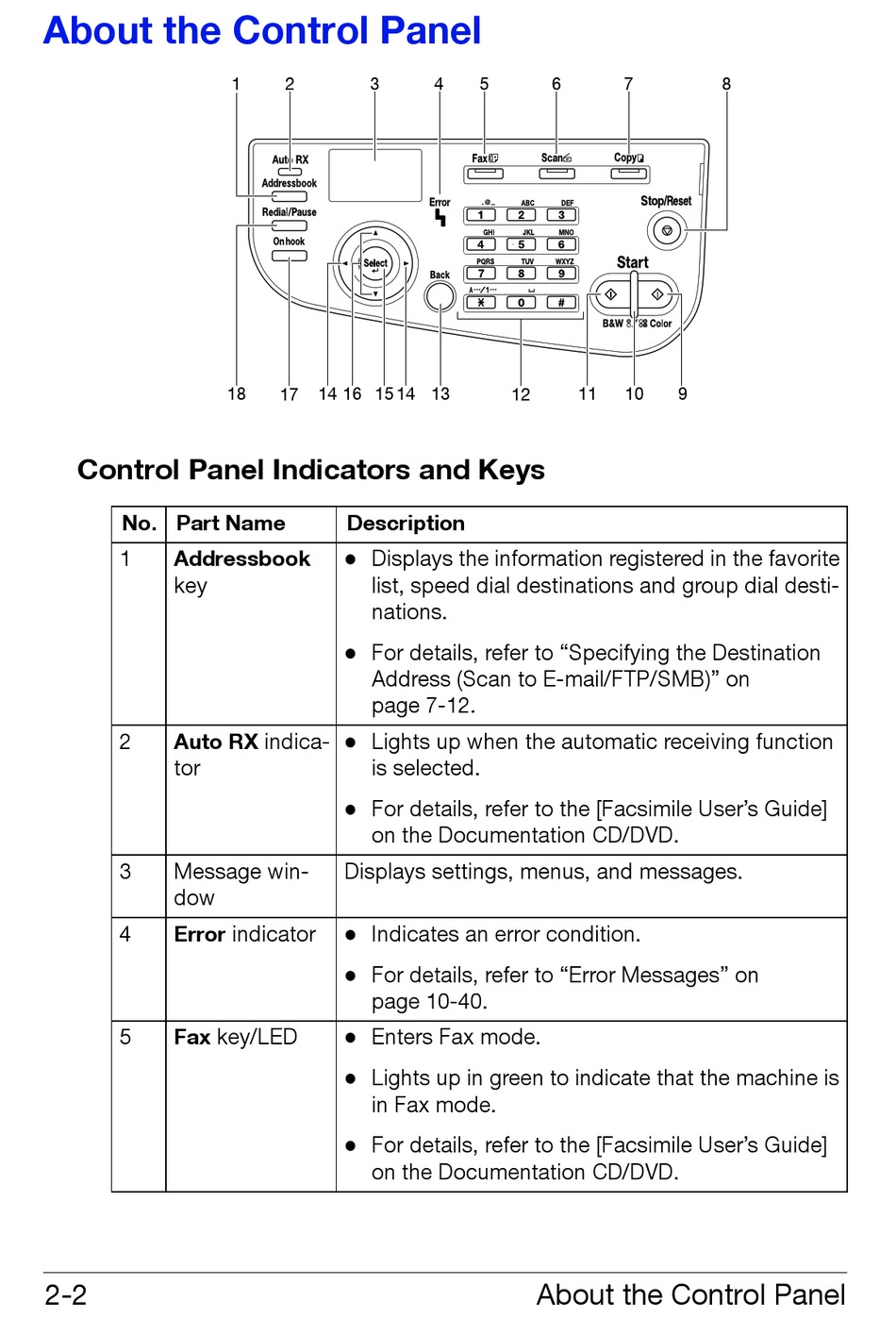

About the Control Panel

Control Panel Indicators and Keys

No. Part Name
1
Addressbook
key
2 Auto RX indica-
tor
3 Message win-
dow
4 Error indicator
5 Fax key/LED
2-2
1 2 3
18 14 16 15
17
Description
- Displays the information registered in the favorite
list, speed dial destinations and group dial desti-
nations.
- For details, refer to "Specifying the Destination
Address (Scan to E-mail/FTP/SMB)" on
page 7-12.
- Lights up when the automatic receiving function
is selected.
- For details, refer to the [Facsimile User's Guide]
on the Documentation CD/DVD.
Displays settings, menus, and messages.
- Indicates an error condition.
- For details, refer to "Error Messages" on
page 10-40.
- Enters Fax mode.
- Lights up in green to indicate that the machine is
in Fax mode.
- For details, refer to the [Facsimile User's Guide]
on the Documentation CD/DVD.
4 5 6
14 13
12
About the Control Panel
7 8
11 10 9
