Part Names

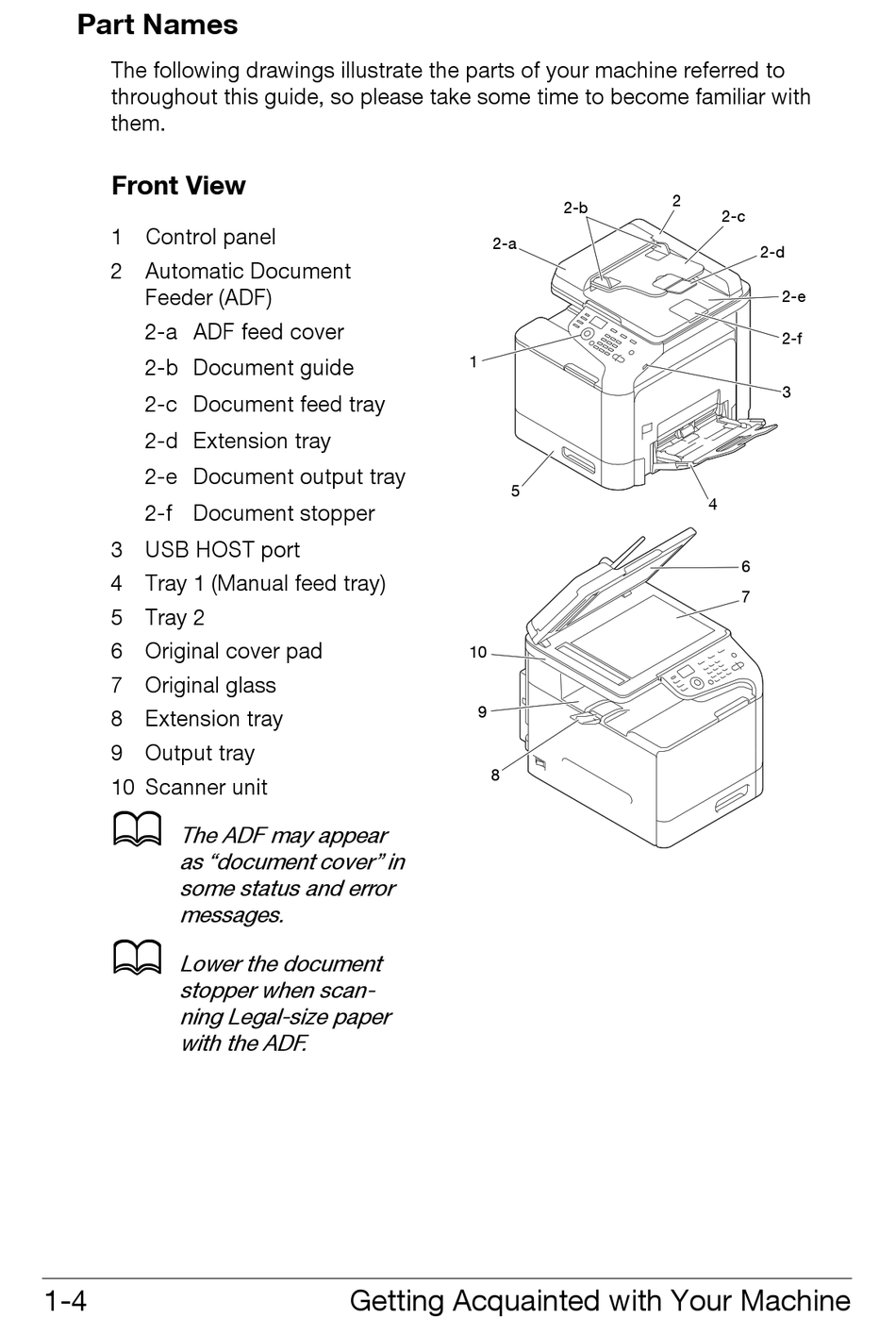

The following drawings illustrate the parts of your machine referred to
throughout this guide, so please take some time to become familiar with
them.

Front View

1 Control panel
2 Automatic Document
Feeder (ADF)
2-a ADF feed cover
2-b Document guide
2-c Document feed tray
2-d Extension tray
2-e Document output tray
2-f Document stopper
3 USB HOST port
4 Tray 1 (Manual feed tray)
5 Tray 2
6 Original cover pad
7 Original glass
8 Extension tray
9 Output tray
10 Scanner unit
d
The ADF may appear
as "document cover" in
some status and error
messages.
d
Lower the document
stopper when scan-
ning Legal-size paper
with the ADF.
1-4
2-a
1
5
10
9
8
