Understanding the Media Path

Understanding the media path will help you locate media misfeeds.
1 ADF media feed rollers
2 Document feed tray
3 Document output tray
4 Fuser unit
5 Duplex
6 Tray 1 (manual feed tray)
7 Tray 3 (optional Lower Feeder
Unit PF-P09)
8 Tray 2
9 Print head unit
10 Imaging unit
11 Transfer belt unit
12 Toner cartridge
13 Output tray

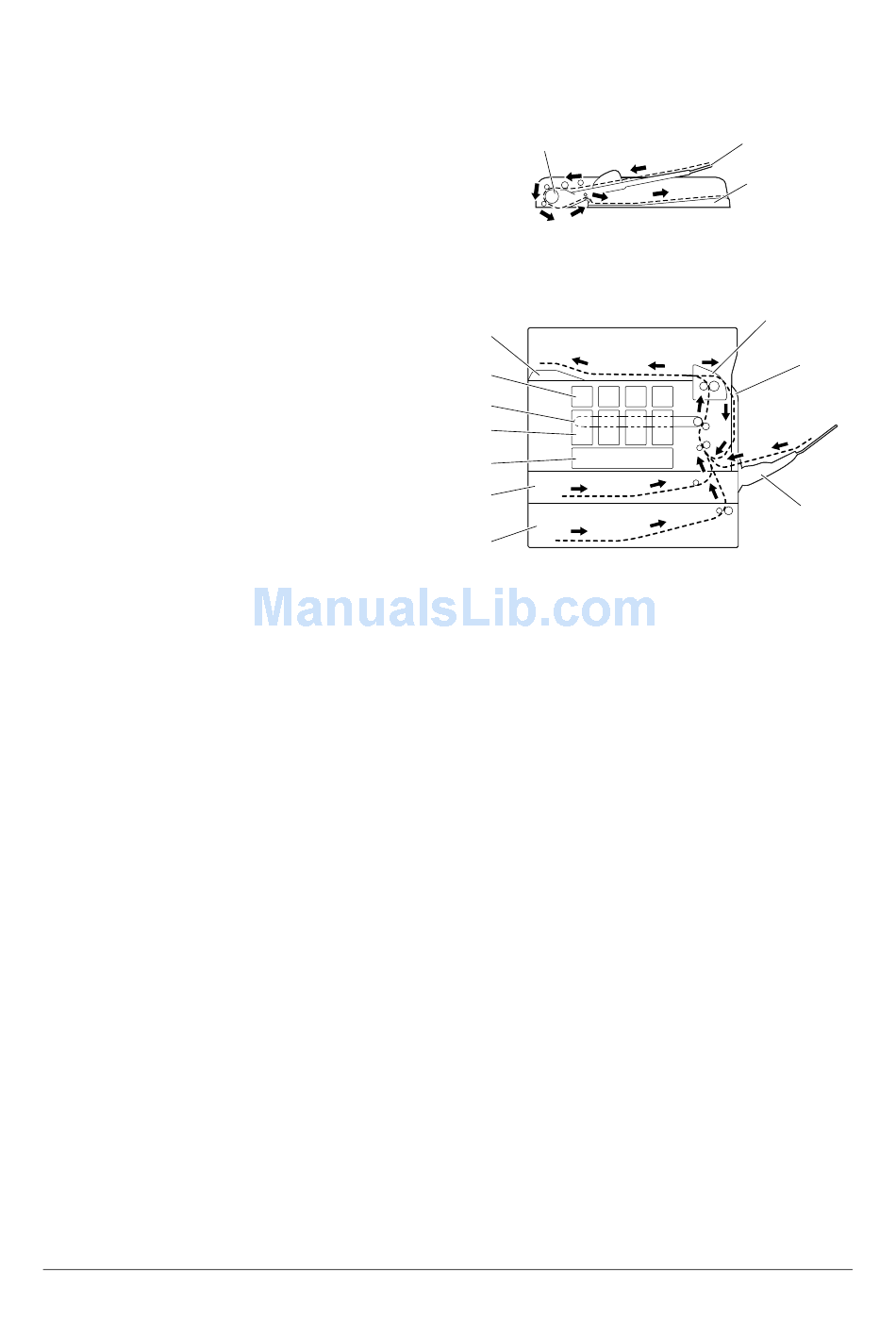

Understanding the Media Path

1
Document path
13
12
11
10
9
8
7
Media path
2
3
4
5
6
10-5
