3: System Interface
Control Panel Buttons
20
In addition to monitoring the activity and health of specific components using LEDs, the system
uses two buttons located on the front of the chassis: a reset button and a power on/off button. Use
the reset button to reboot the system as shown in
Figure 3-2

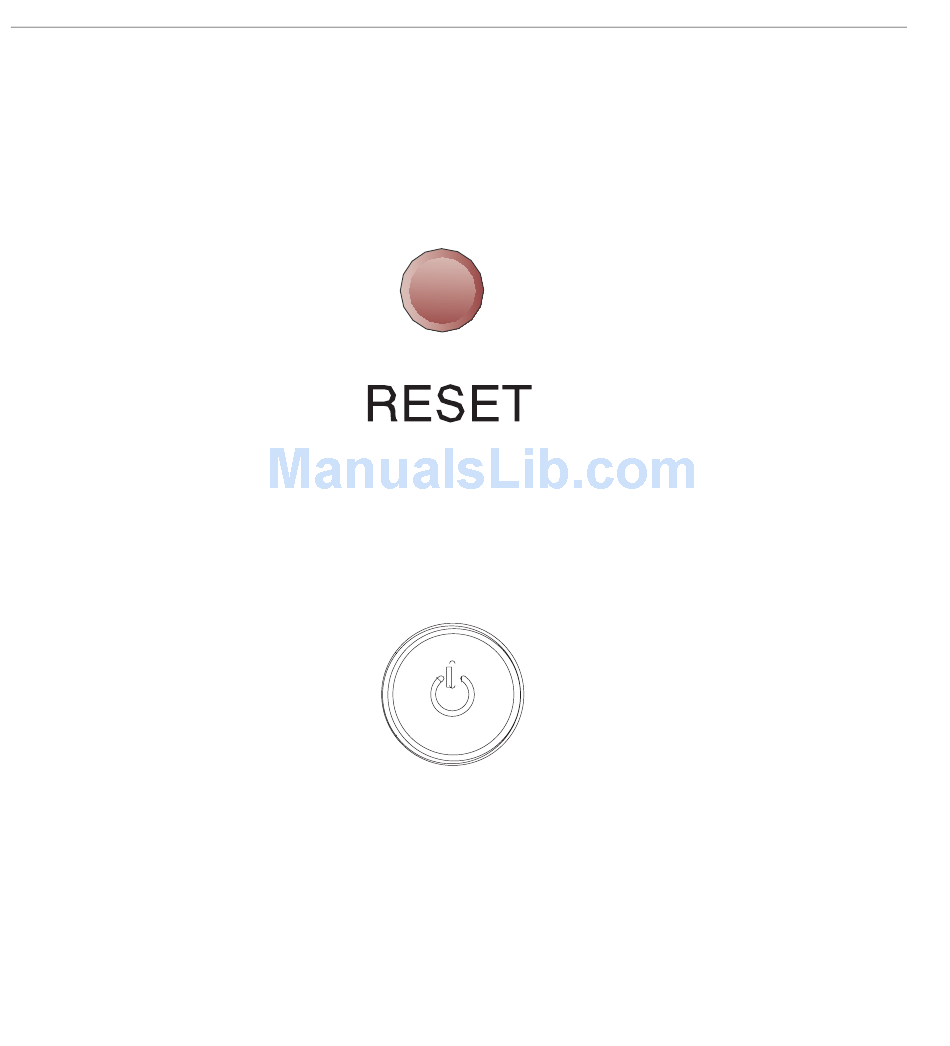

System Reset Button
Figure 3-3
shows the main power button, which is used to apply or turn off the main system power.
Turning off system power with this button removes the main power but keeps standby power
supplied to the system.
Figure 3-3
System Power On Button
Figure
3-2.
