Mid-chassis Fans:

007-5841-001

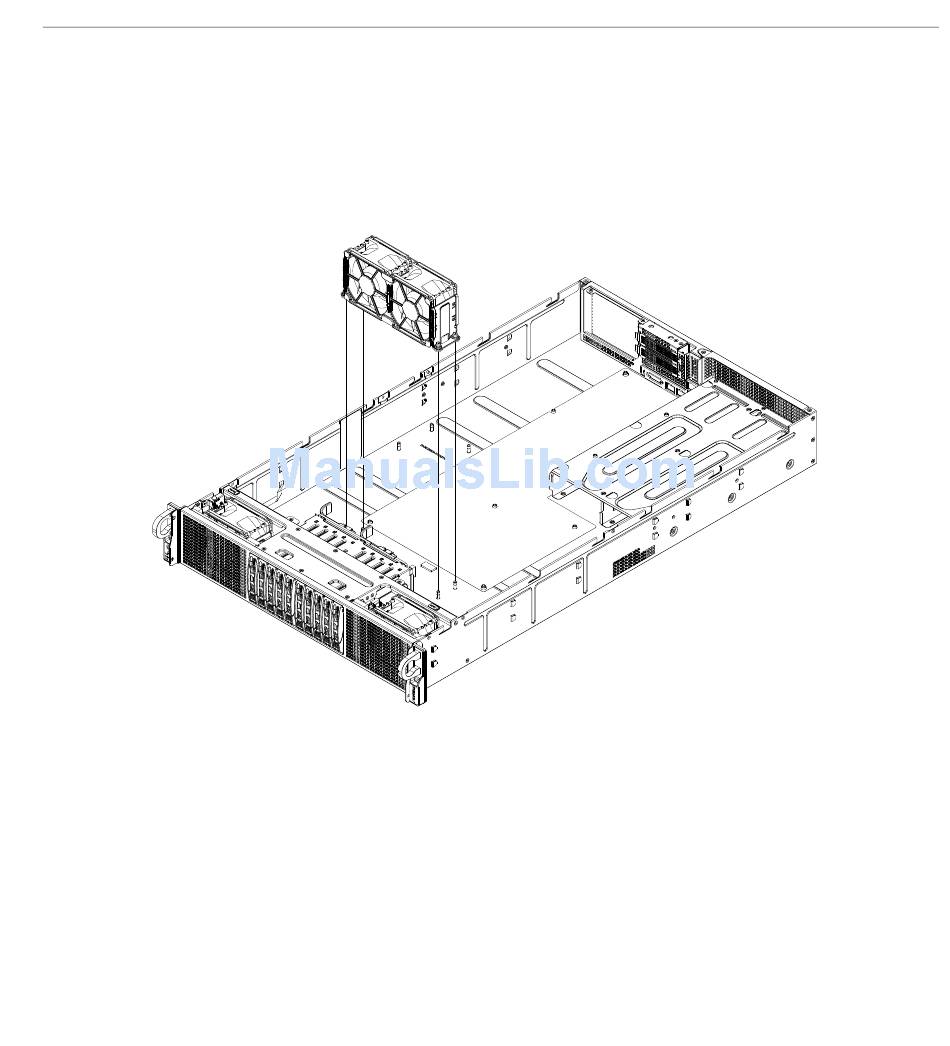

Figure 6-7
Mid-chassis Fan Assembly Remove/Replace Example
5. Use the exploded fan assembly drawings as a guide to disassemble the fan housing by
removing the front and rear fan guards.
1. Replace the failed fan with an identical 8-cm 12-volt fan.
2. Disassemble the mid-chassis fan housing by removing the front and rear fan guards.
3. Reassemble the fan housing around the replacement fan as follows:
System Fans
