4: System Interface
Control Panel Buttons
UID Button
Reset Button
22
There are three push buttons located on the front of the chassis: a reset button, a UID button, and
a power on/off button.
Figure 4-2
UID Button
Depressing the UID (unit identifier) button illuminates an LED on both the front and rear of the
chassis for easy system location in large stack configurations. The LED will remain on until the
button is pushed a second time. Another UID button on the rear of the chassis serves the same
function.

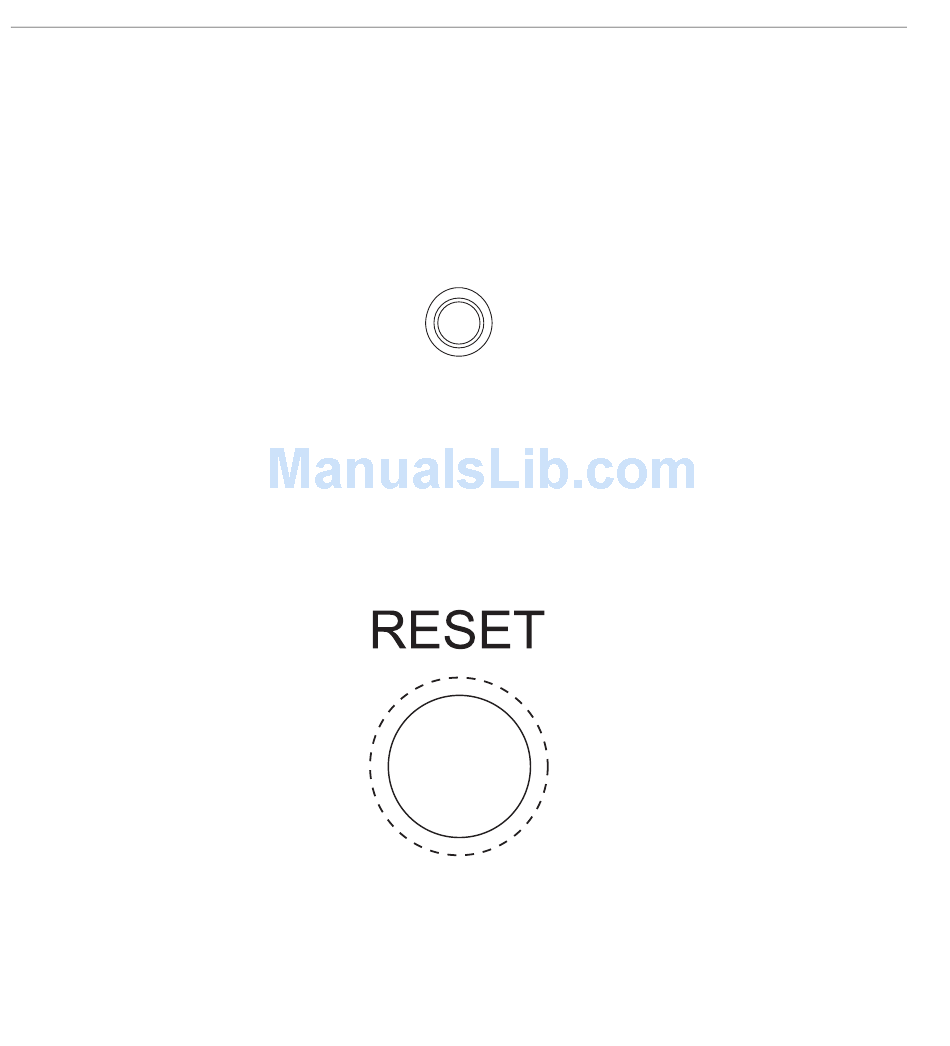

Figure 4-3
Reset Button
Use the reset button to reboot the system.
007-6307-001
