3: System Interfaces Overview
Control Panel Buttons
Control Panel LEDs
24
There are several LEDs on the front control panel as well as others on the disk drive carriers to
keep you constantly informed of the overall status of the system as well as the activity and health
of specific components. There is also a system power button on each control panel. This chapter
explains the meanings of all LED indicators and the appropriate response you may need to take.
There is only one push-button located on the front control panel of the C1110-RP6 server:
Power - This is the main power button, which is used to apply or turn off the main system power
supply. Pressing this button removes the main power but keeps standby power supplied to the
serverboard, see Figure 3-2 on page 24.
The control panel located on the front of the server chassis has three LEDs. Each LED provides
you with critical information related to the serverboard. This section explains what each LED
indicates when illuminated and any corrective action you may need to take.

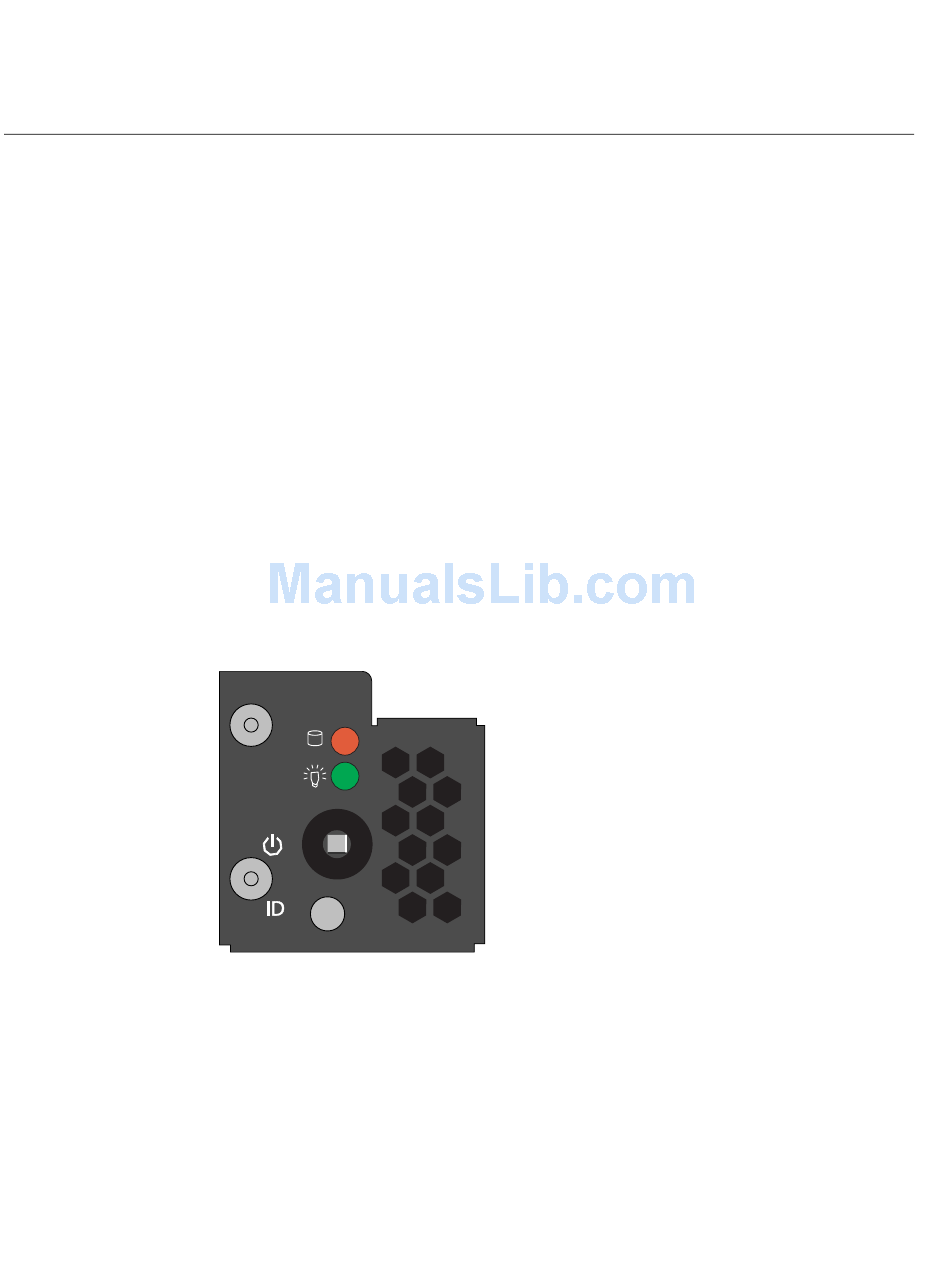

Figure 3-2
Serverboard Control Panel Example
The ten-drive version of the server has its control panel on the left-front section of the chassis front
panel. The four-drive version of the server has the control panel in the upper right front area.
007-5843-002
