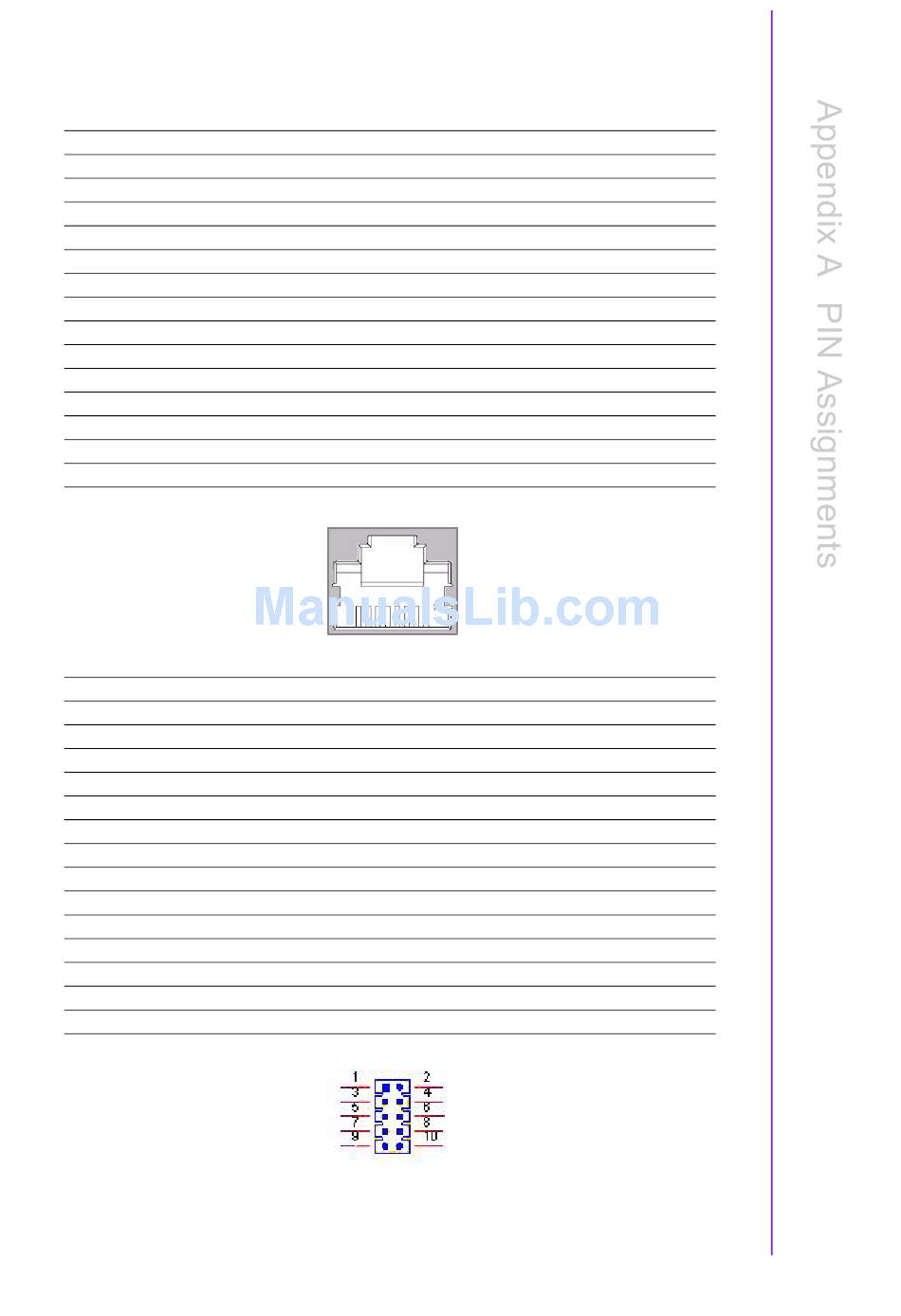

CN14
Part Number
Footprint
Description
Pin
1
2
3
4
5
6
7
8
H3
H4
CN15
Part Number
Footprint
Description
Pin
1
2
3
4
5
6
7
8
9
10
Gigabit Ethernet
1652004356
RJ45_14P_RT7-194AAM1A
Pin Name
BI_DA+(GHz)
BI_DA-(GHz)
BI_DB+(GHz)
BI_DC+(GHz)
BI_DC-(GHz)
BI_DB-(GHz)
BI_DD+(GHz)
BI_DD-(GHz)
GND
GND
HD Audio
1653003719
HD_5x2P_79_RA_21N22050
Pin Name
LOUTR
LINR
GND
GND
LOUTL
LINL
NC
NC
NC
NC
55
Data Modul AG - www.data-modul.com
MIO-2261 User Manual
