3.2.3

Chipset

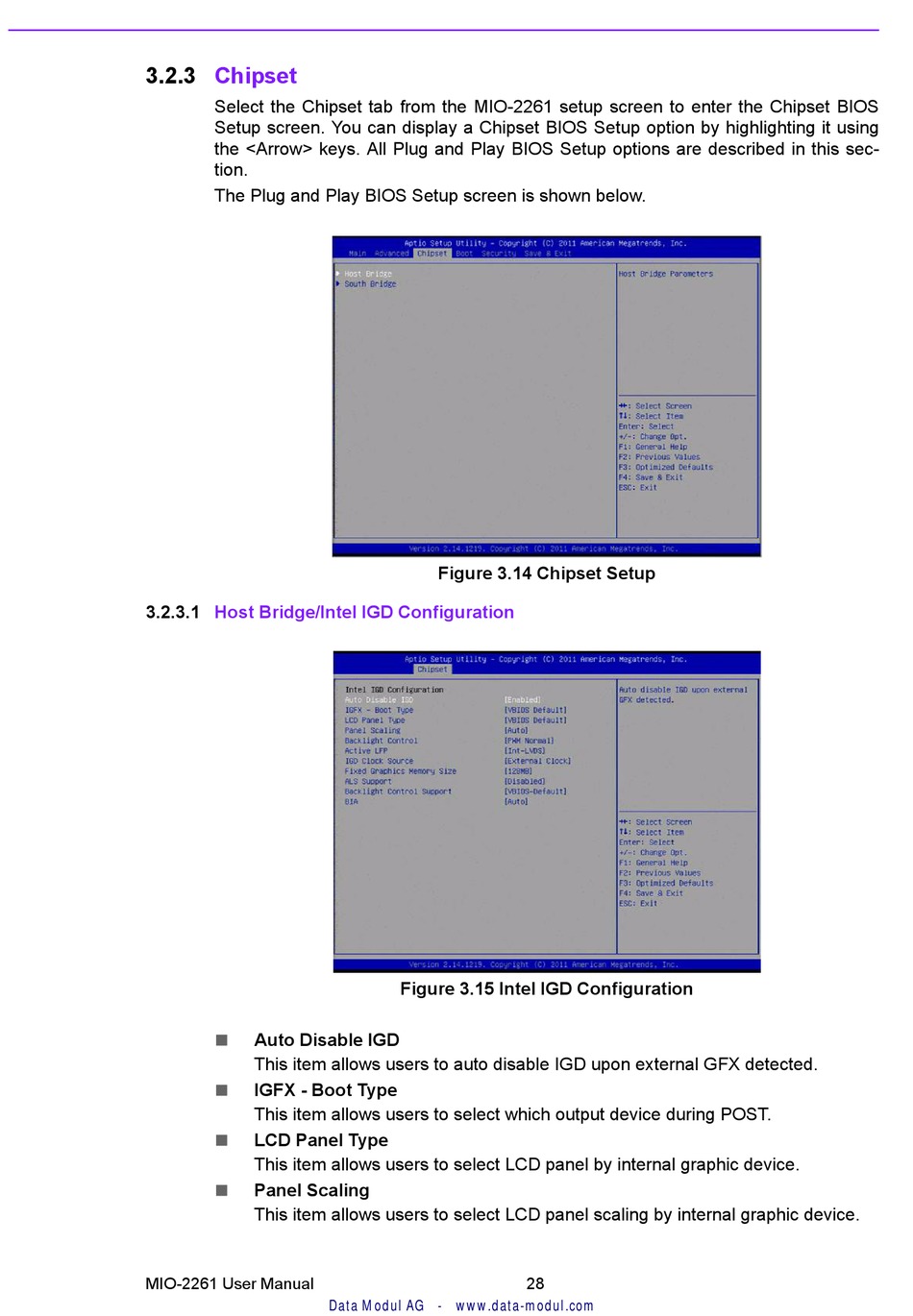

Select the Chipset tab from the MIO-2261 setup screen to enter the Chipset BIOS
Setup screen. You can display a Chipset BIOS Setup option by highlighting it using
the <Arrow> keys. All Plug and Play BIOS Setup options are described in this sec-
tion.
The Plug and Play BIOS Setup screen is shown below.
3.2.3.1 Host Bridge/Intel IGD Configuration
 Auto Disable IGD
This item allows users to auto disable IGD upon external GFX detected.
 IGFX - Boot Type
This item allows users to select which output device during POST.
 LCD Panel Type
This item allows users to select LCD panel by internal graphic device.
 Panel Scaling
This item allows users to select LCD panel scaling by internal graphic device.
MIO-2261 User Manual
Figure 3.14 Chipset Setup
Figure 3.15 Intel IGD Configuration
