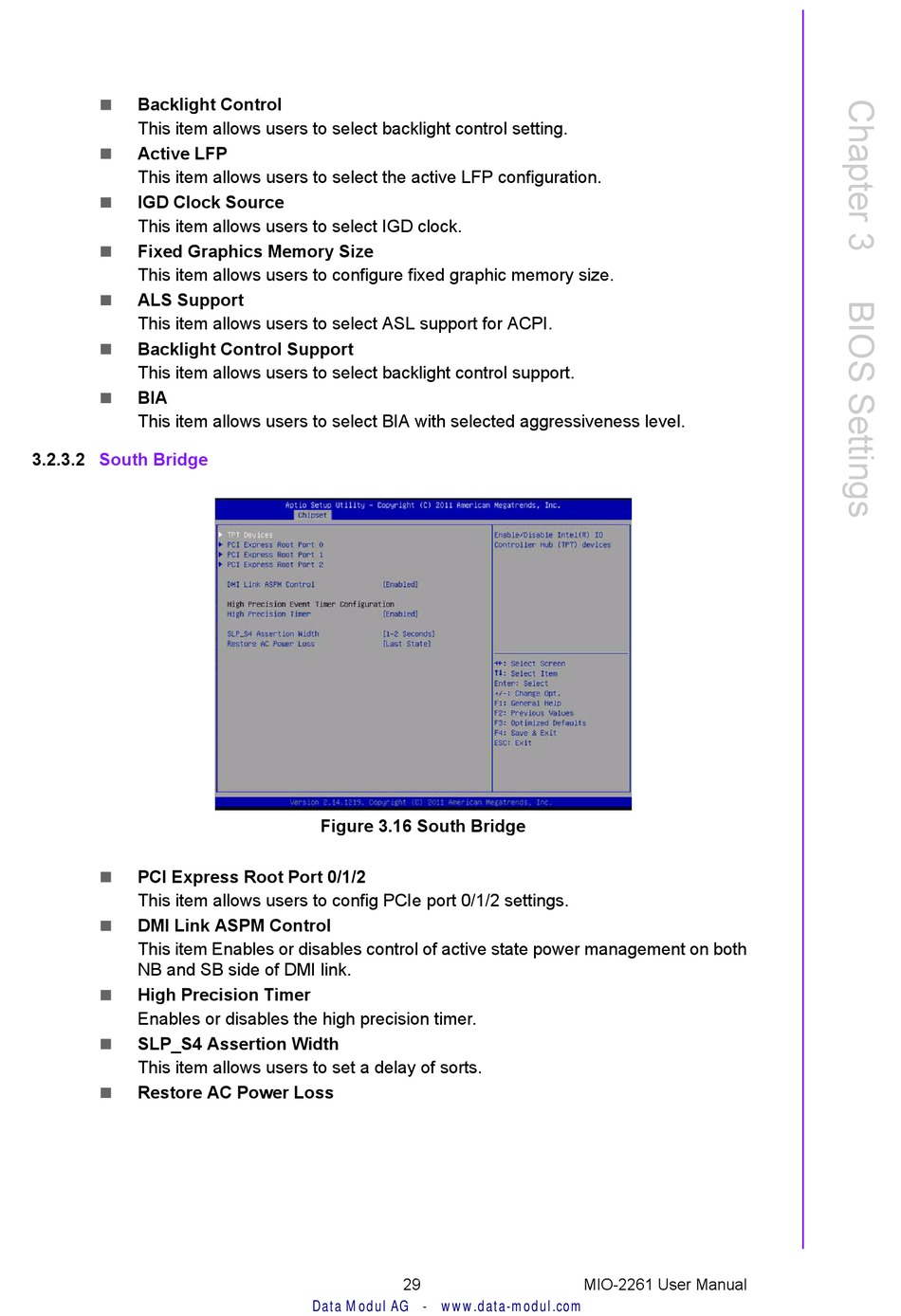

Figure 3.16South Bridge - Data Modul MIO-2261 User Manual

 Backlight Control
This item allows users to select backlight control setting.
 Active LFP
This item allows users to select the active LFP configuration.
 IGD Clock Source
This item allows users to select IGD clock.
 Fixed Graphics Memory Size
This item allows users to configure fixed graphic memory size.
 ALS Support
This item allows users to select ASL support for ACPI.
 Backlight Control Support
This item allows users to select backlight control support.
 BIA
This item allows users to select BIA with selected aggressiveness level.
3.2.3.2 South Bridge
PCI Express Root Port 0/1/2

This item allows users to config PCIe port 0/1/2 settings.
 DMI Link ASPM Control
This item Enables or disables control of active state power management on both
NB and SB side of DMI link.
 High Precision Timer
Enables or disables the high precision timer.
SLP_S4 Assertion Width

This item allows users to set a delay of sorts.
 Restore AC Power Loss
Figure 3.16 South Bridge
