 Serial Port 1 Configuration
This item allows users to configure serial port 1.
 Serial Port 2 Configuration
This item allows users to configure serial port 2.
 Watch Dog Function Configuration
This item allows users to configure watch dog settings.
 Backlight Configuration
This item allows users to configure backlight control settings.

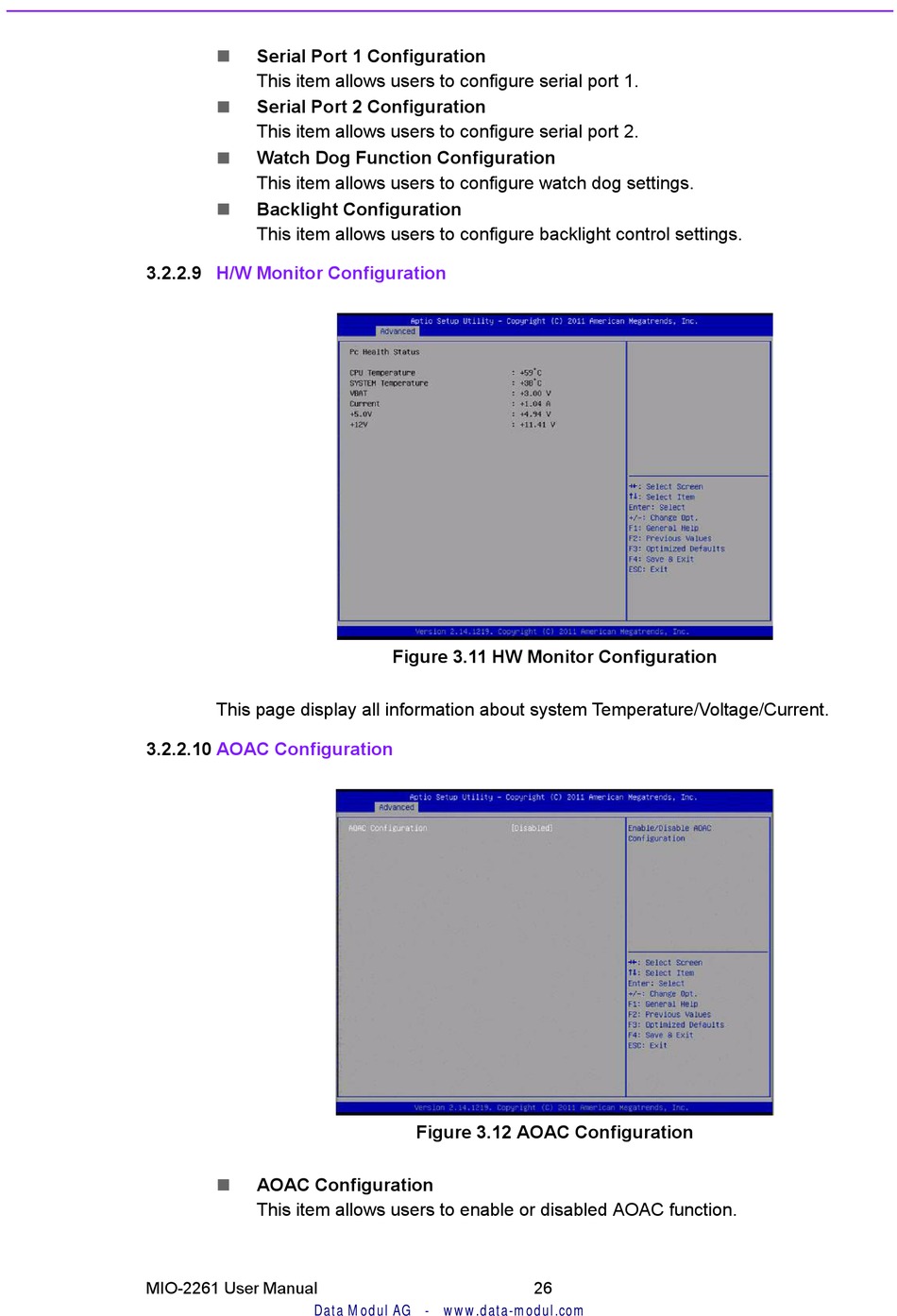

3.2.2.9 H/W Monitor Configuration
This page display all information about system Temperature/Voltage/Current.
3.2.2.10 AOAC Configuration
AOAC Configuration

This item allows users to enable or disabled AOAC function.
MIO-2261 User Manual
Data Modul AG - www.data-modul.com
Figure 3.11 HW Monitor Configuration
Figure 3.12 AOAC Configuration
