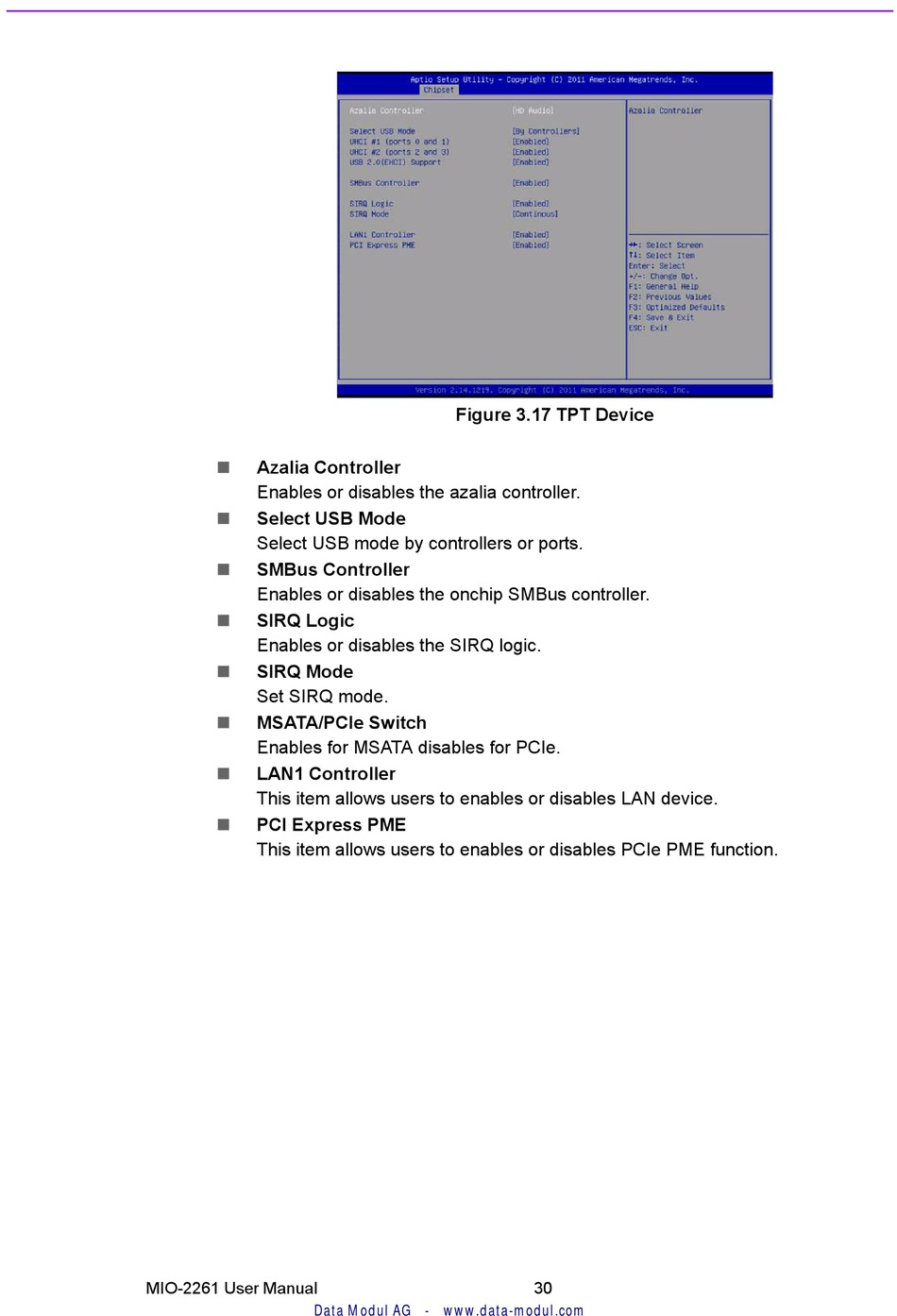

Figure 3.17Tpt Device - Data Modul MIO-2261 User Manual

 Azalia Controller
Enables or disables the azalia controller.
 Select USB Mode
Select USB mode by controllers or ports.
 SMBus Controller
Enables or disables the onchip SMBus controller.
 SIRQ Logic
Enables or disables the SIRQ logic.
 SIRQ Mode
Set SIRQ mode.
 MSATA/PCIe Switch
Enables for MSATA disables for PCIe.
 LAN1 Controller
This item allows users to enables or disables LAN device.
PCI Express PME

This item allows users to enables or disables PCIe PME function.
