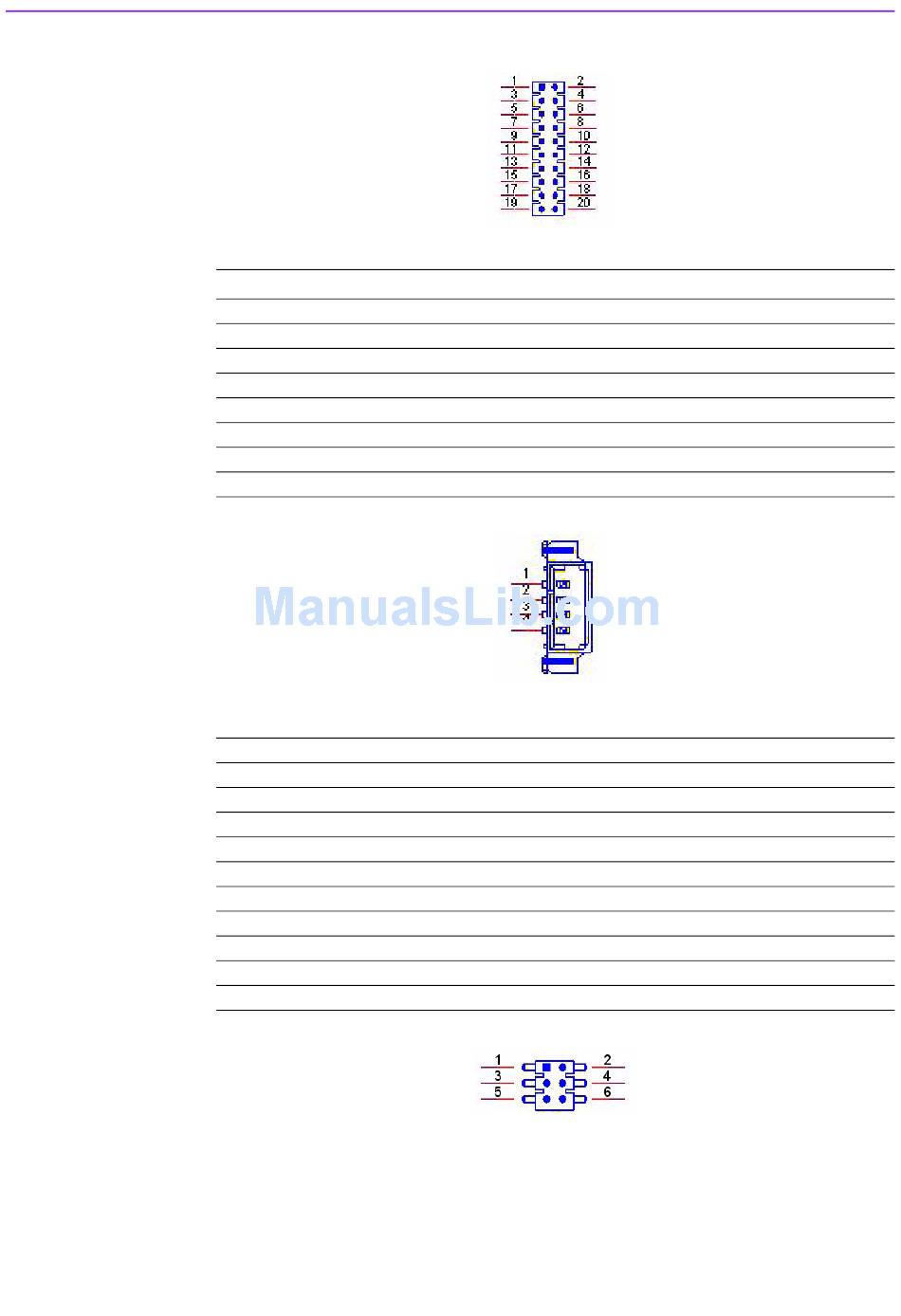

CN12
Part Number
Footprint
Description
Pin
1
2
3
4
CN13
Part Number
Footprint
Description
Pin
1
2
3
4
5
6
MIO-2261 User Manual
Data Modul AG - www.data-modul.com
2
SMBus (or I
C, by request)
1655904020
FPC4V-125M
Wafer SMT 1.25 mm S/T type 4P 180D(M) 85205-04001
Pin Name
GND
SMB_DAT
SMB_CLK
+5 V
Front Panel
1653004883
HD_3x2P_79_RA_21N22050
Pin Name
Power Button Pin1
Power LED+
Power/Reset Button Pin2
HDD LED+
Reset Button Pin1
HDD LED-
54
