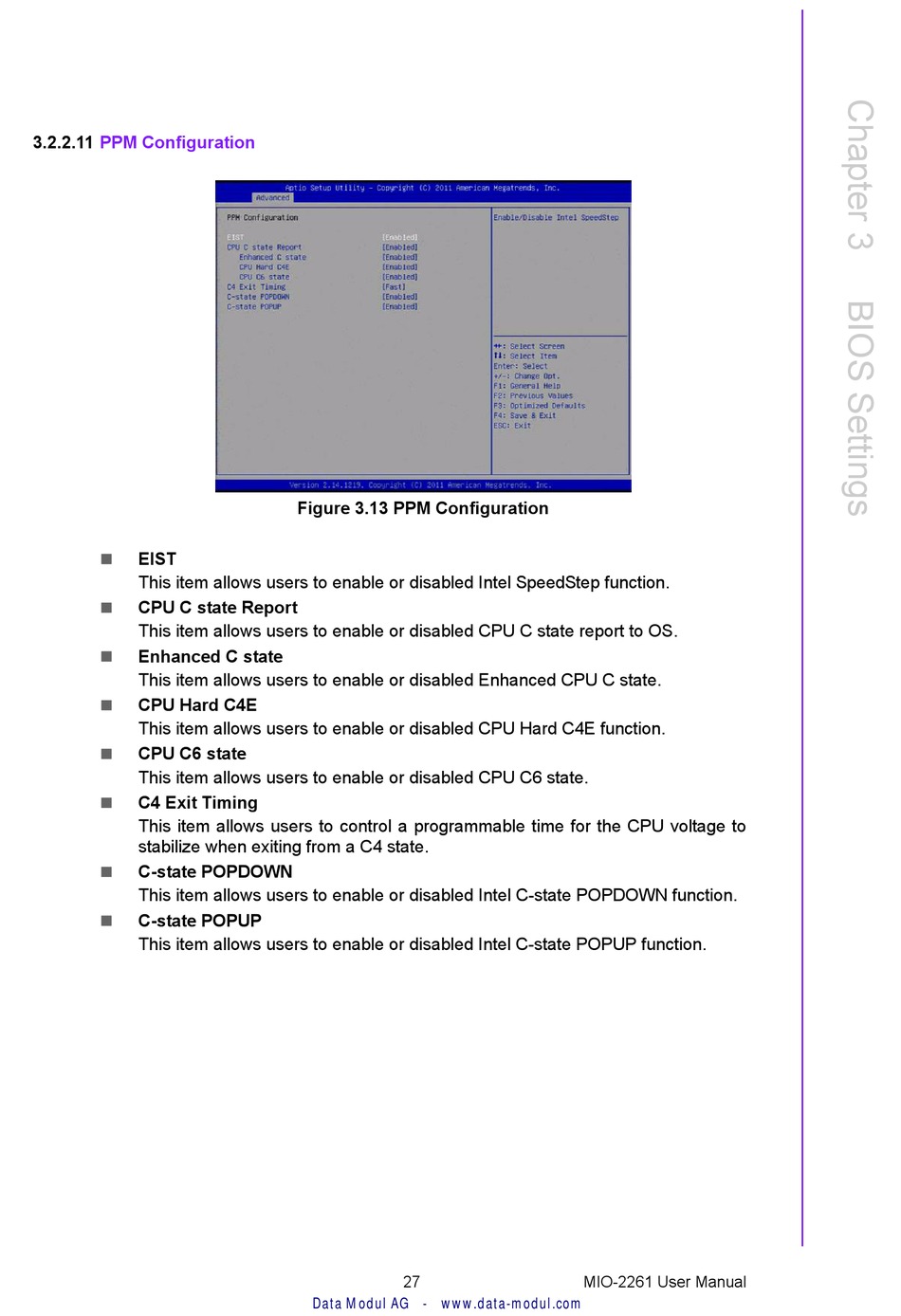

3.2.2.11 PPM Configuration
 EIST
This item allows users to enable or disabled Intel SpeedStep function.
 CPU C state Report
This item allows users to enable or disabled CPU C state report to OS.
 Enhanced C state
This item allows users to enable or disabled Enhanced CPU C state.
 CPU Hard C4E
This item allows users to enable or disabled CPU Hard C4E function.
 CPU C6 state
This item allows users to enable or disabled CPU C6 state.
C4 Exit Timing

This item allows users to control a programmable time for the CPU voltage to
stabilize when exiting from a C4 state.
 C-state POPDOWN
This item allows users to enable or disabled Intel C-state POPDOWN function.
 C-state POPUP
This item allows users to enable or disabled Intel C-state POPUP function.
Figure 3.13 PPM Configuration
27
