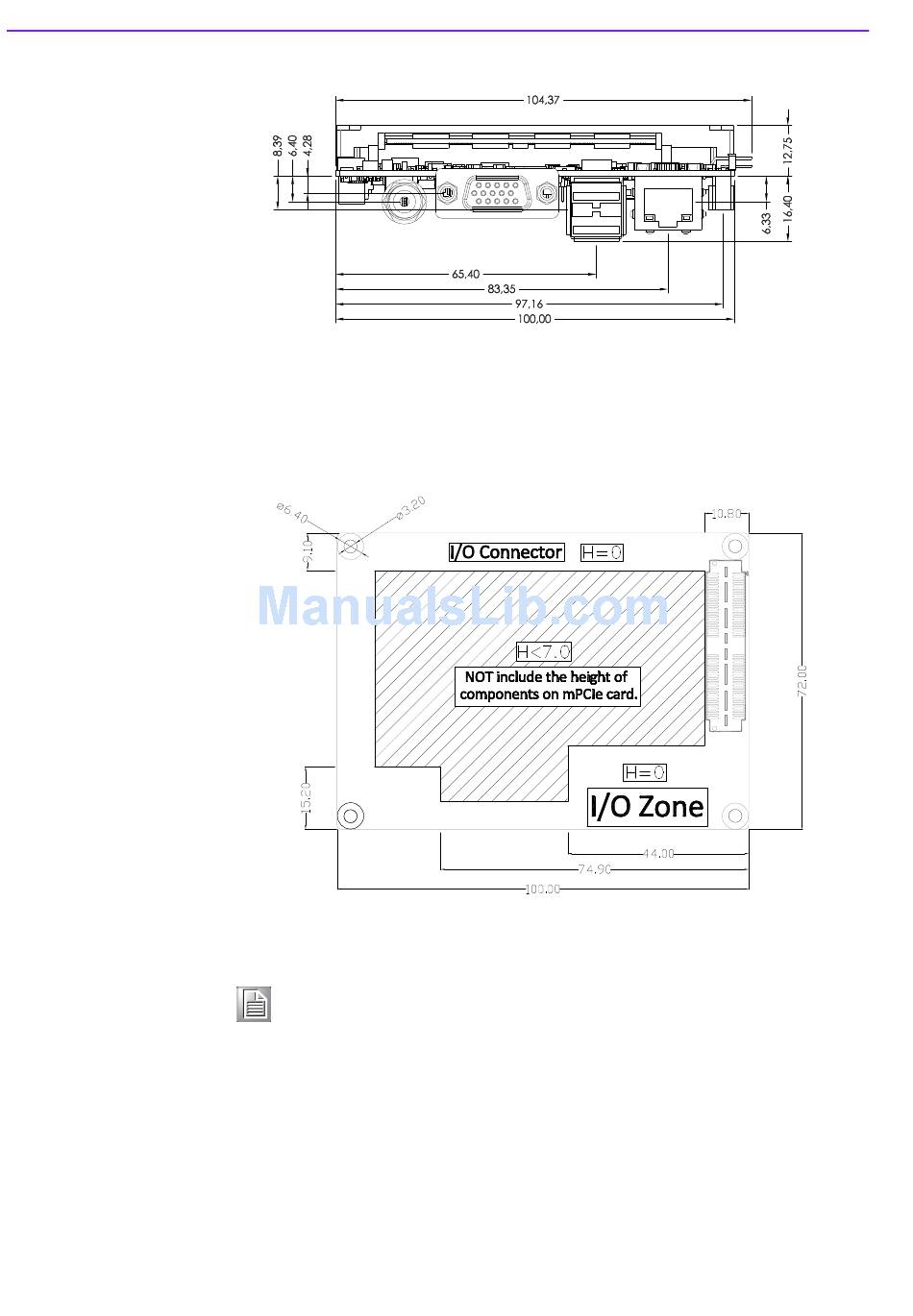

Figure 2.10 Board dimension layout (coastline with optional heatspreader and
2.3.2.2 MI/O Module Height Constraint
To avoid mechanical conflict with MI/O-Ultra CPU board, it's recommended to refer to
the following drawing of MI/O module height constraint.
unit: mm
Note! 1.
2.
MIO-2261 User Manual
Figure 2.11 MI/O Module height constraint
Constraint of components' max. height of MI/O module base on 16
mm height MIOe connector. If needed, there's 19 mm height as
well.
The height of power connector (including of cable) on MIO-2261
should be considered when assembling the system or stacking the
MI/O module.
Data Modul AG - www.data-modul.com
DC/Jack)
16
