Figure 16 Pulling The Cartridge Release Lever - Quantum ValueLoader User Manual

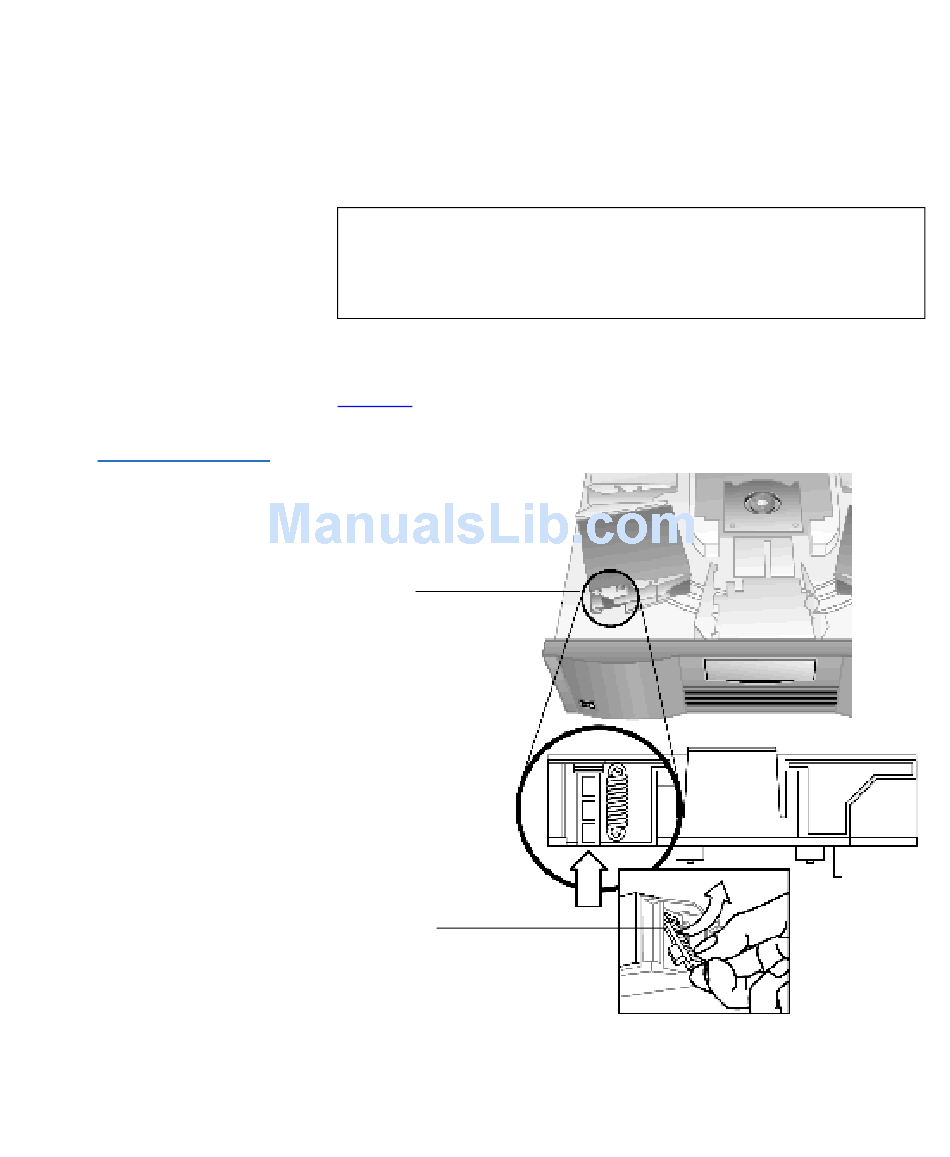

Figure 16 Pulling the
Cartridge Release
Lever
7 Lift the cartridge carrier, with each cartridge you want to remove,
straight up from the ValueLoader. If the cartridge carrier has a pin at
the bottom, you may have to rotate the cartridge carrier, then lift it
straight up from the ValueLoader.
Note: To remove the carrier directly in front of the Import/
Export slot, gently rotate the carousel counterclockwise by
moving the belt or carriers, approximately 1/2 inch, until
the carrier is no longer in front of the Import/Export slot.
8 On each carrier, carefully pull the cartridge lock lever away from the
carrier, allowing the cartridge to slide out of the carrier as shown in
figure 16.
Cartridge carrier
Cartridge lock lever
