Installing The Valueloader Into A Rack; Figure 4 Rack Kit Components - Quantum ValueLoader User Manual

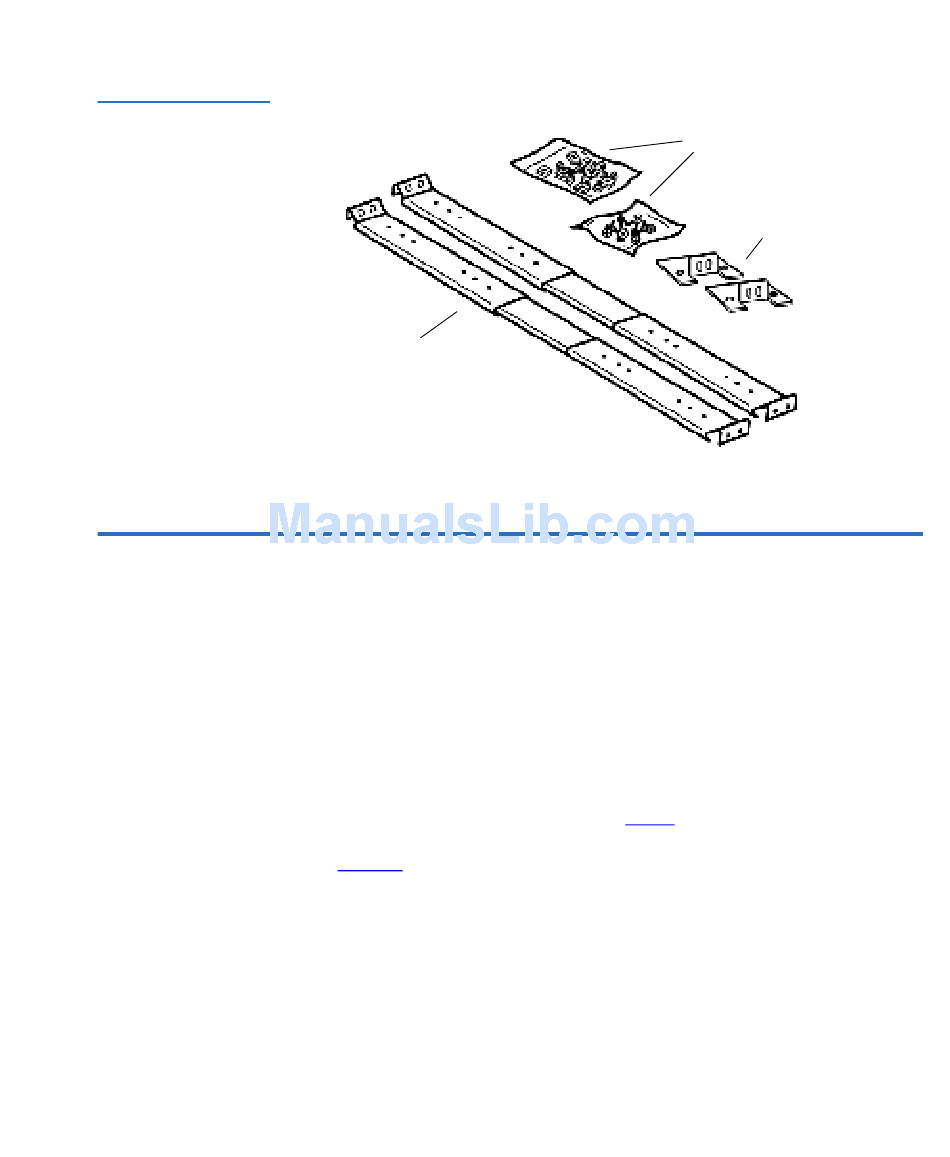

Figure 4 Rack Kit
Components

Installing the ValueLoader into a Rack

Mounting rails
The ValueLoader fits all standard 19-inch racks, taking up 2U of space. To
install the ValueLoader into a rack, you need to install the mounting
brackets on both sides of the ValueLoader and the rails in the selected
rack location.
To install the ValueLoader, follow these steps:
1 Use a screwdriver to remove the two screws near the front on each
side of the ValueLoader.
2 Using the screws you removed in
bracket from the rack kit to each side of the ValueLoader, as shown in
figure 5.
ValueLoader LTO-1/LTO-2 Tape Autoloader User Manual
Chapter 1 Installing the ValueLoader
Installing the ValueLoader into a Rack
Screws and clip nuts
Mounting
brackets
step 1, secure one mounting
1
9
