TVLogic LVM-171WP Operation Manual page 17

L VM- 171W - 171WP
MARKER COLOR
This item controls the color of MARKER is generated. Settable colors are white, gray, black, red, green and blue.
MARKER THICKNESS
This item controls the width of marker. The degrees of width are between 1 and 7.
USER MARKER H1 / H2
This item controls the marker of horizontal value.
USER MARKER V1 / V2
This item controls the marker of vertical value.

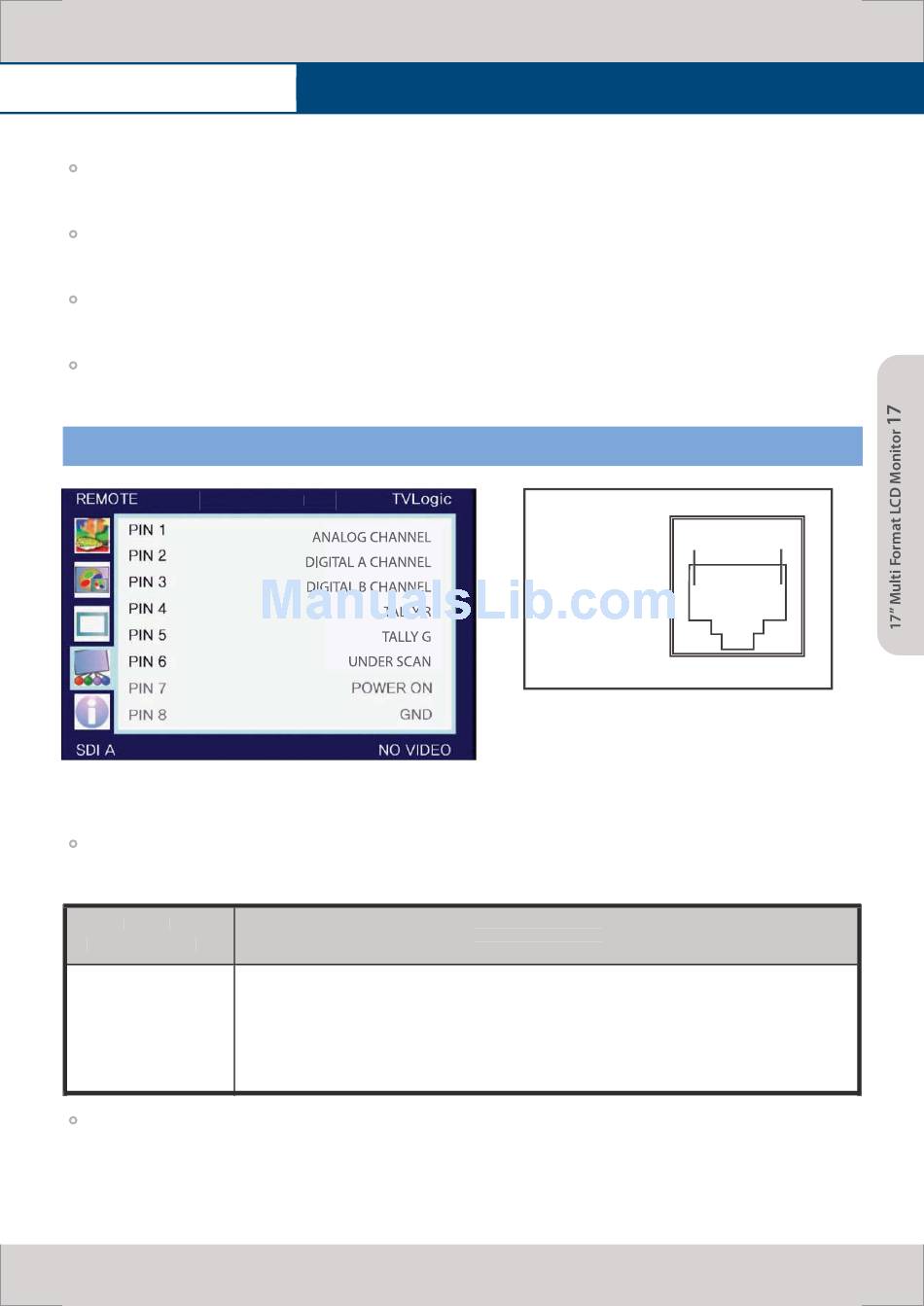

[4] REMOTE PART
LVM-171WP
This product provides a REMOTE CONTROL mode. The user may connect RJ-45 jack to the REMOTE
terminal on the rear of the unit and designate a function for each pin.
PIN 1 ~PIN 6
The user designates function for PIN 1~PIN 6. PIN 7 is POWER ON/OFF use only. The selectable functions are
as follows:
Menu
Classification
PIN 1~6
PIN 7
PIN 7 is for power ON/OFF use only
On the pin to be used, set the function you desire with the ENTER button and UP/DOWN button.
The method of setting the value is the same as that for the MENU function discussed
OSD Menu Contents
NONE, ANALOG CHANNEL, DIGITAL A/B CHANNEL, BLUE ONLY, SD
1:1 SCAN, UNDER SCAN, ASPECT, H/V DELAY, 16:9,15:9,14:9,13:9
MARKER, 4:3, 4:3 ON AIR MARKER, 1.85:1, 2.35:1 MARKER,
1.85:1&4:3 MARKER, CENTER MARKER,SAFETY AREA 80% / 88% /
90% / 93%, TALLY RED, TALLY GREEN
LVM 17 LVM-171WG
REMOTE (RJ-45)
1: Pin1
2: Pin2
3: Pin3
4: Pin4
5: Pin5
6: Pin6
7: Pin7
8: GND
Settable Values
1 8
