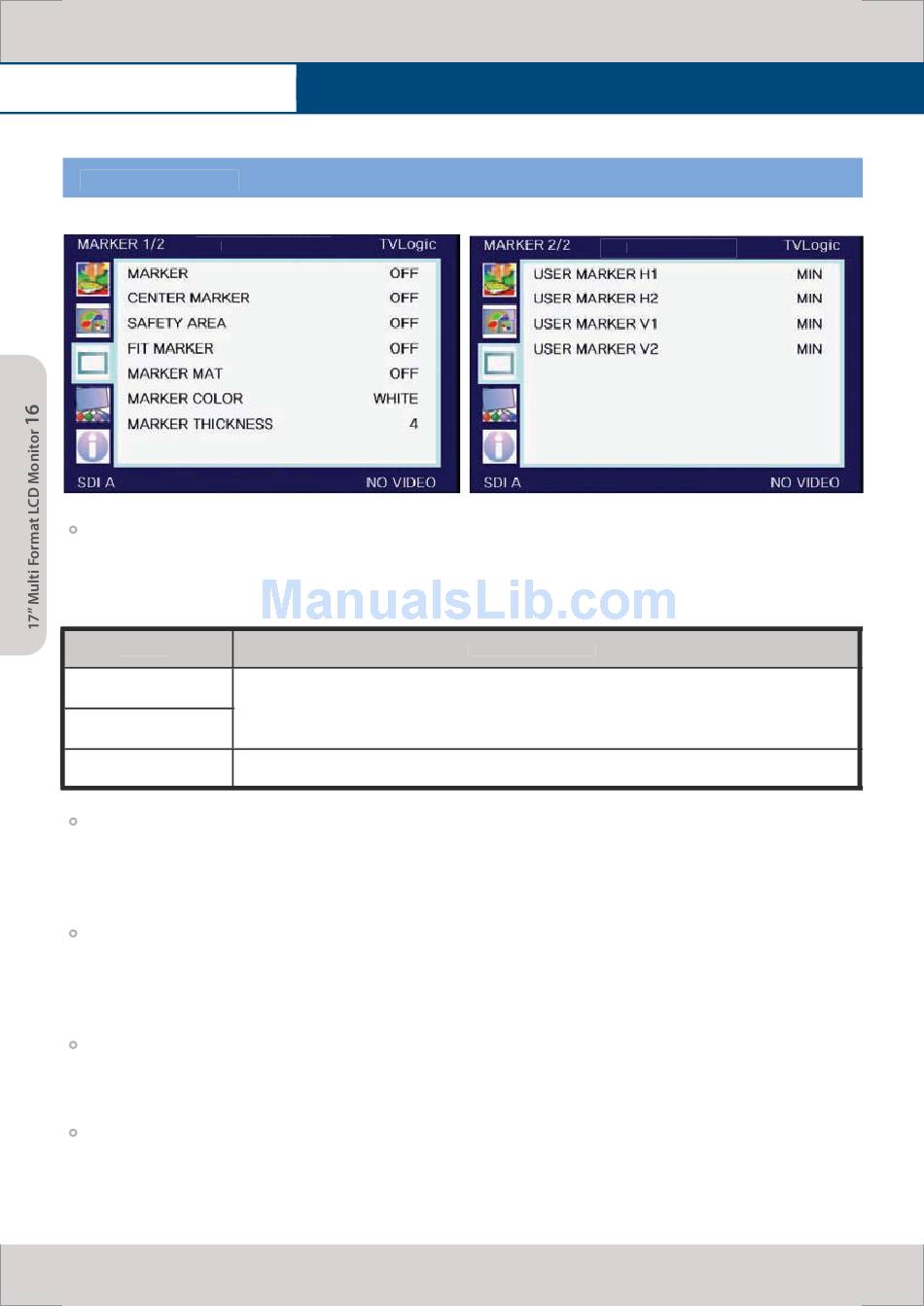

[3] MARKER PART
LVM-171WP
MARKER
This selects the marker type when the MARKER is displayed on the screen.
MARKER may only be activated by pressing the MARKER button on the front of the monitor.
Compatible MARKER types are as follows:
MODE
HD
SD 16:9
SD 4:3
CENTER MARKER
This item displays the CENTER MARKER on the screen. This function operates only after
activating the MARKER function by pressing the MARKER button on the front of the
monitor.
SAFETY AREA
This item controls the size of the SAFETY AREA among 80%, 88%, 90%, 93%, 100%,
EBU ACTION 16:9, EBU GRAPHIC 16:9, EBU ACTION 14:9, EBU GRAPHIC 14:9,
EBU ACTION 4:3 and EBU GRAPHIC 4:3.
FIT MARKER
This item sets the fit marker. When using the fit marker, safety area is displayed within
the marker area.
MARKER MAT
This item darkens the area of the outside of MARKER setting area. The degrees of
darkness are between OFF(0) and (7). The higher the number, the darker MARKER border
becomes.
OSD Menu Contents
16:9, 4:3, 4:3 ON AIR, 15:9, 14:9, 13:9, 1.85:1, 2.35:1,
1.85:1 & 4:3, USER
16:9
LVM-171WP
MARKER CLASS
