OSD Menu Contents

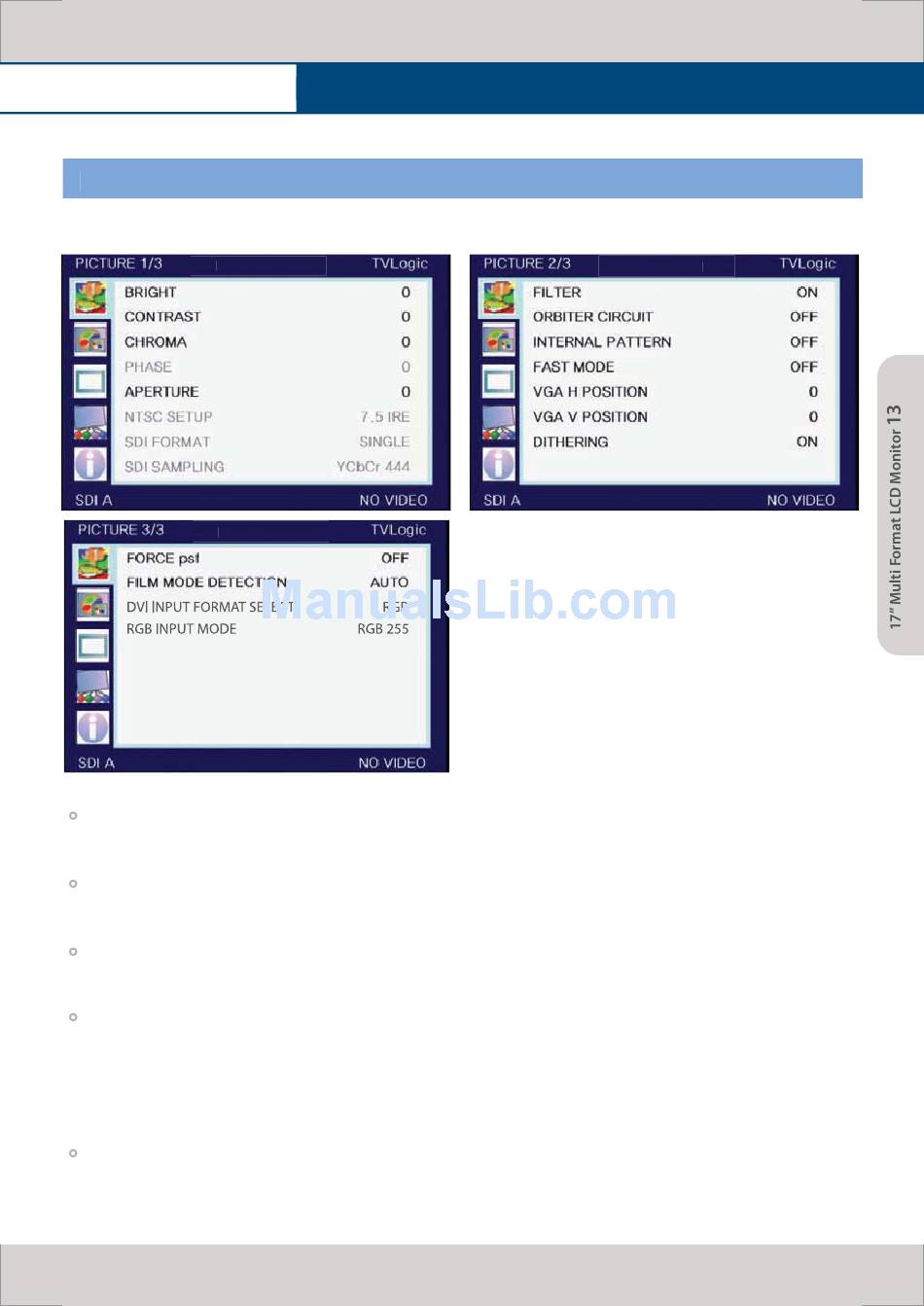

[1] PICTURE PART
Below is the description of each function of the menu.
LVM-171WP
LVM-171WP
LVM-171WP
BRIGHT
This item controls the degree of brightness between MAX(100) and MIN (-100) range.
CONTRAST
This item controls the contrast ratio between MAX(100) and MIN(-100).
CHROMA
This item controls saturation between MAX(50) and MIN(-50).
PHASE
This item controls Phase(hue) value and Phase(no hue) on Analog and DVI_Analog modes.
Phase(hue) value controls between MAX(50) and MIN(-50) on Analog modes(Composite, S-Video).
Phase(no hue) value controls between MAX(63) and MIN(0) on DVI-Analog mode.
#Phase value can be adjusted by press the [PHASE] button button on the front of the monitor.
APERTURE
This item controls the picture sharpness. Sharpness select between MIN(-1) and MAX(5).
