L VM- 171W - 171WP

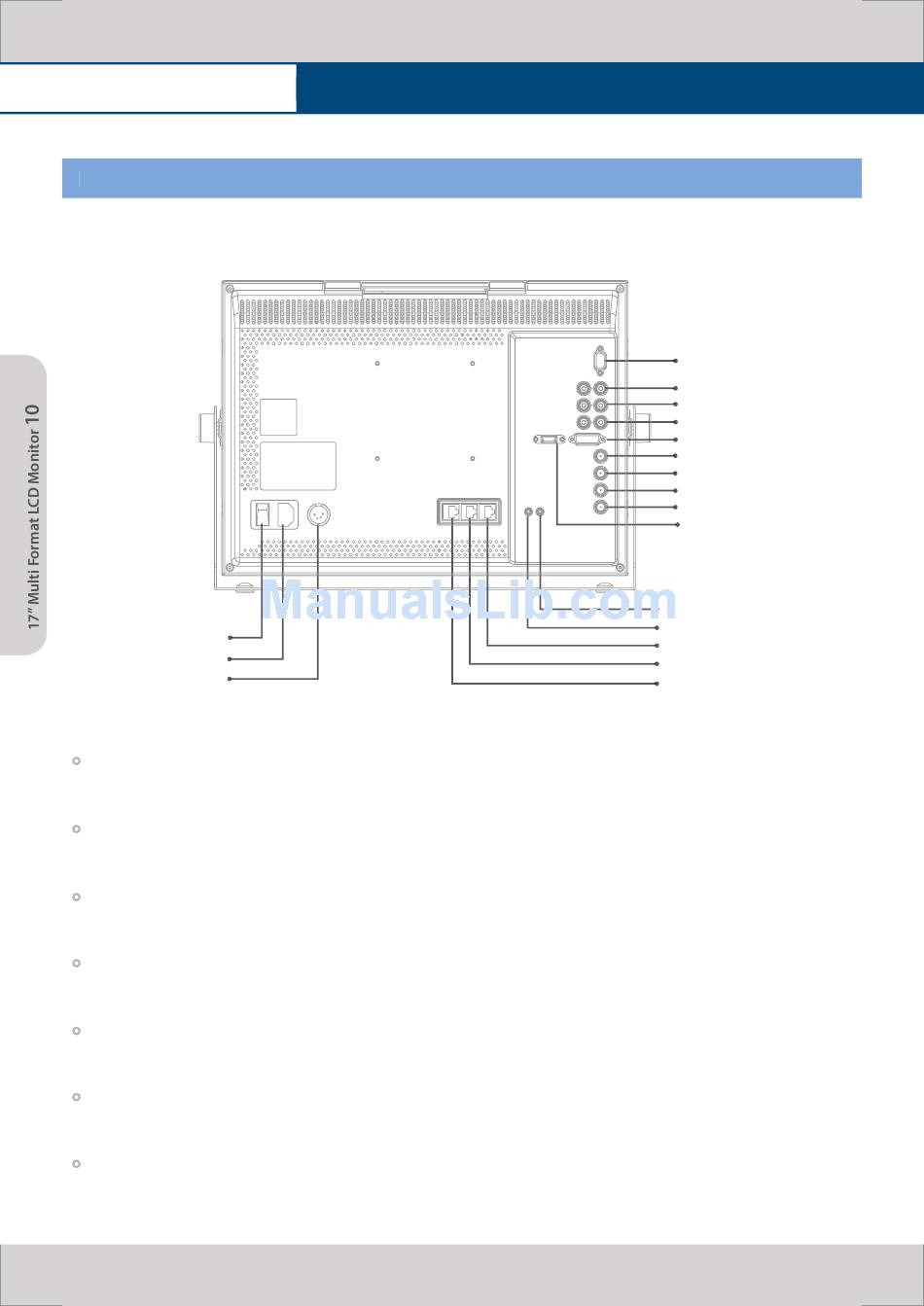

REAR
POWER S/W
AC IN
DC IN
REMOTE (RJ-45)
- Provides connection to monitor control equipment via simple GPI contact closure.
DVI-I (DVI-I)
- Used to connect DVI Analog or DVI Digital signals.
HDMI (HDMI)
- Used to connect HDMI signal.
FACTORY PGM (D-SUB 15 pins)
- Input connector for FACTORY PGM allowing for firmware updates.
CVBS1/Y/G/S-Y (BNC)
- Signal input terminal used to put in COMPOSITE 1, S-VIDEO Y, COMPONENT Y, RGB G signals.
CVSBS2/Pb/B (BNC)
- Signal input terminal used to put in COMPOSITE 2, RGB B, COMPONENT Pb signals.
CVSBS3/Pr/R/S-C (BNC)
- Signal input terminal used to put in COMPOSITE 3, S-VIDEO C, COMPONENT Pr, RGB R signals.
Name & Function of Each Part
FACTORY PGM
CVBS1/G/Y/S-Y
CVBS2/B/Pb/
CVBS3/R/Pr/S-C
DVI-I
SDI IN-A
SDI OUT-A
SDI IN-B
SDI OUT-B
HDMI
AUDIO OUT
AUDIO IN
REMOTE
RS422 OUT
RS422 IN
