Battery Meter - Skyrc iMAX B6 mini Instruction Manual

Professional balance charger / discharger
Hide thumbs

Advertisement

BATTERY METER

The user can check battery's total voltage, the highest voltage, the lowest voltage
and each cell's voltage.
Please connect the battery to the charger main battery lead to battery socket and
balance wires to balance socket.

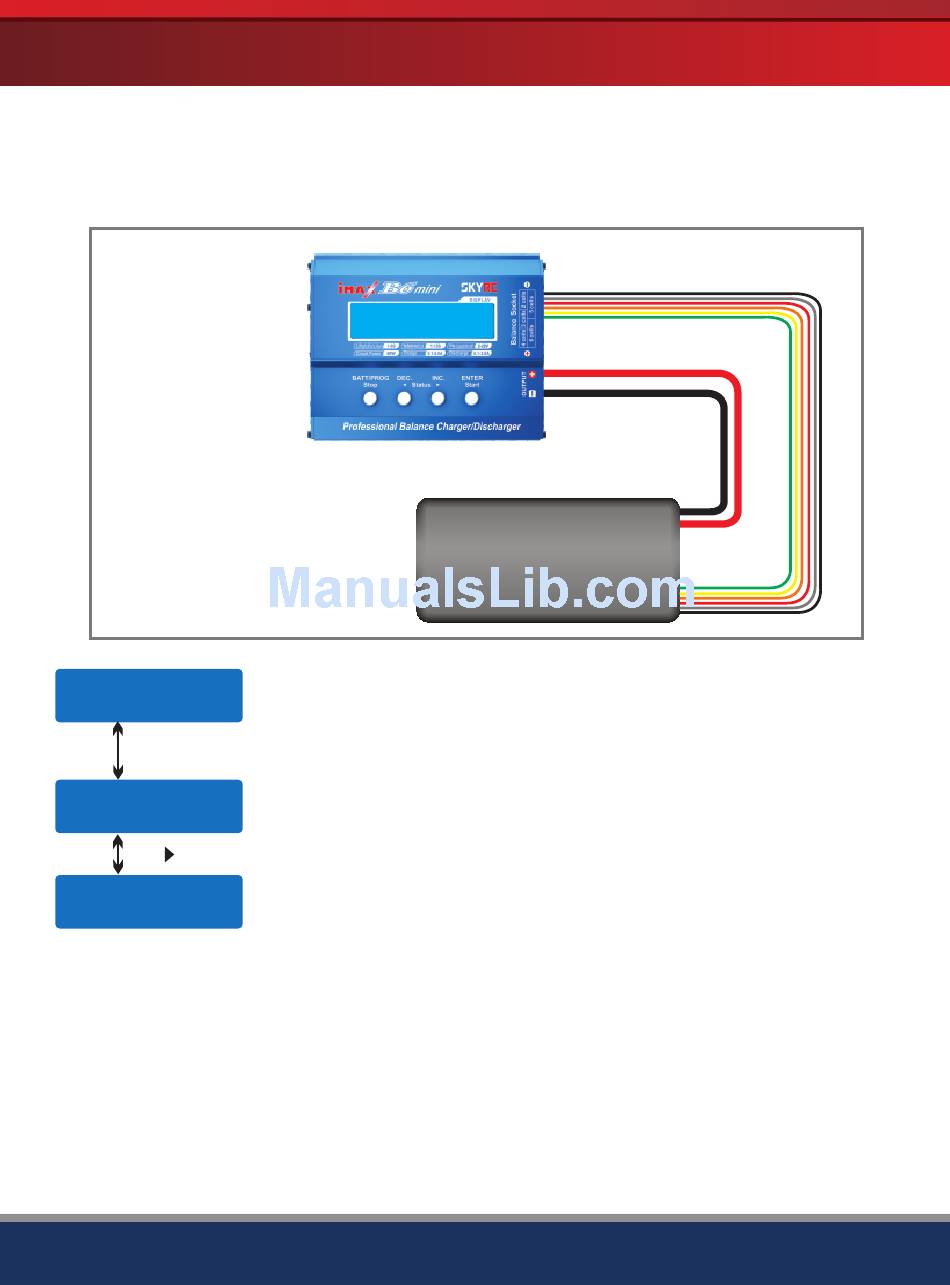

This diagram shows
the correct way to
connect your battery
to check the voltage.
B A T T / P R O G R A M
B A T T M E T E R
START
ENTER
4 . 2 0
4 . 1 9
4 . 1 9 V
4 . 1 8
4 . 1 8
4 . 1 9 V
INC
M A I N 2 5 . 1 3 V
H 4 . 2 0 0 V
L 4 . 1 8 2 V
· 18
4.19
4.15
4.15
4.19
Press the START/ENTER to enter the Lithium Battery
Meter program.
The screen indicate each cell's voltage.
The screen indicate the total voltage, the highest
voltage and the lowest voltage.
4.18V
4.18V
Battery
Pack
B6 mini
