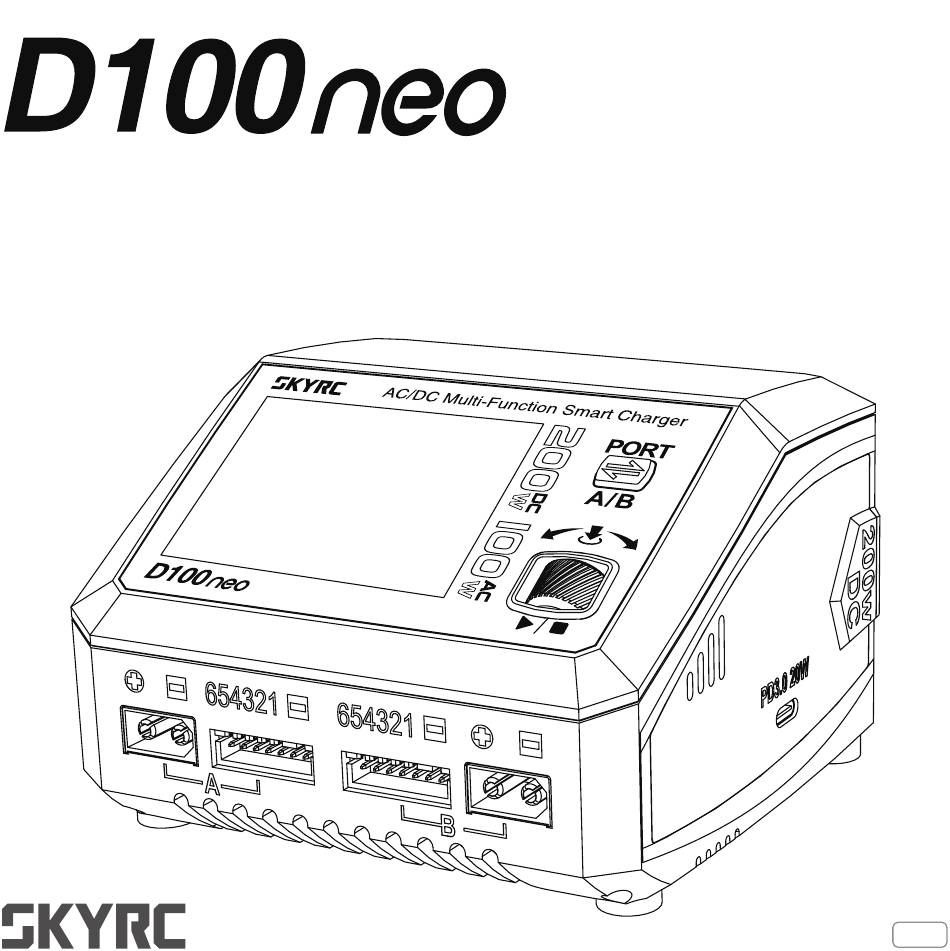

- Page 1 SKYRC D100neo Instruction Manual AC/DC Multi-Function Smart Charger Instruction Manual SK-100199 V1.0 SKYRC D100neo...
-
Page 2: Table Of Contents
SKYRC D100neo Instruction Manual Introduction Package Meet D100neo Specification Warning Standard Battery Parameters Explanation of Buttons Program Flow Chart Power and Battery Connection Charging Lithium Battery Program(LiPo/LiFe/Lilon/LiHV) NiMH/NiCd Battery Program Pb Lead-Acid Battery Program Charger Master DC Power USB Type-C PD/QC3.0 Output... -
Page 3: Introduction
SKYRC D100neo Instruction Manual Introduction Introducing the SkyRC D100neo AC/DC Multi-Function Smart Charger, an enhanced version of the D100. With dual independent ports and compatibility with various RC batteries, it adapts to different chemistries. It can act as a dual-output digital power, offering adjustable voltage (2V-27V), and current (0.2A-10A) per output. -
Page 4: Meet D100Neo

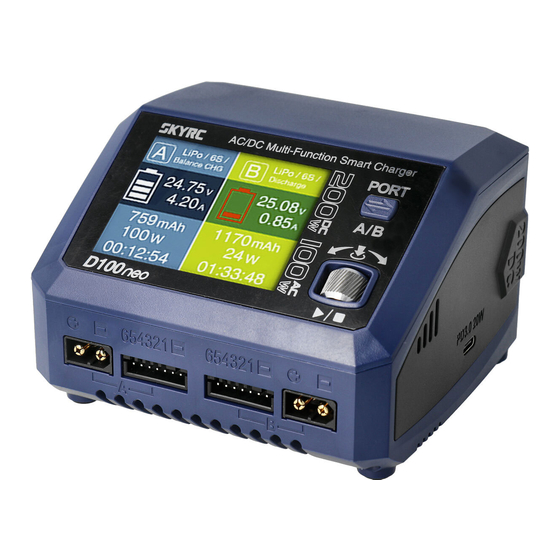

SKYRC D100neo Instruction Manual Meet D100neo Switch Between LCD Display Port A,B,C, and D Scroll to select the parameters and confirm XT60 Output Socket PD/QC3.0 Charge & Data Port Balance Port AC Input 100-240V DC Input 10-30V Smart Ventilation Fan... -
Page 5: Specification
SKYRC D100neo Instruction Manual Specification Item Option Specification Model D100neo 100-240V (50/60Hz) Input Voltage 10V-30V Input Current A: 0-100W B: 0-100W A+B=100W Charge Power A: 0-100W B: 0-100W A+B=200W Main Port Discharge Power Main Port+Balance Port 30W Max (LiPo/6S) LiPo/LiFe/LiIon/LiHV/ Charge Current 0.2-10.0A... - Page 6 SKYRC D100neo Instruction Manual Item Option Specification Voltage 5.0-27.0V DC Power Supply Current 1.0-10.0A Power 100W Max QC3.0 5V 3A, 9V 2A, 12V 1.5A 18W USB Type-C Output 5V 3A, 9V 2.2A, 12V 1.67A 20W Size Length*Width*Height 116*110*79mm Weight Net Weight...
-
Page 7: Warning
SKYRC D100neo Instruction Manual Warning D100neo is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the charger by a person responsible for their safety. -
Page 8: Standard Battery Parameters
SKYRC D100neo Instruction Manual Standard Battery Parameters LiPo Lilon LiFe LiHV NiMH NiCd Nominal voltage 3.7V/cell 3.6V/cell 3.3V/cell 3.8V/cell 1.2V/cell 1.2V/cell 2.0V/cell Max. charge 4.2V/cell 4.1V/cell 3.65V/cell 4.35V/cell 1.5V/cell 1.5V/cell 2.4V/cell voltage Storage voltage 3.8V/cell 3.7V/cell 3.3V/cell 3.85V/cell Allowable fast ≦... -
Page 9: Explanation Of Buttons
SKYRC D100neo Instruction Manual Explanation of Buttons D100 Port Switch Button Switch Between Ports A and B Scroll Button Navigate through Ports A and B in the home menu Short-press to enter into parameters setting and confirm your selection. Scroll the wheel to select different menus or adjust parameters. -
Page 10: Program Flow Chart
SKYRC D100neo Instruction Manual Program Flow Chart CH B CHARGE SETTING DC Power LiPo / 6S / Balance CHG LiPo / 6S / Discharge Battery Type LiPo 4.137V 4.175V 14.57 Battery Cell 2S(7.4V) 24.75 25.08 4.138V 4.173V Task Balance CHG 4.43... - Page 11 SKYRC D100neo Instruction Manual Note: This flow chart provides an example for one port, and the charts for the four ports (Ports A and B) are identical CH A CHARGE SETTING CH A CHARGE SETTING CH A CHARGE SETTING Battery Type...
-
Page 12: Power And Battery Connection
SKYRC D100neo Instruction Manual Power and Battery Connection 1. Connect to power source There are two options of inputs for SKYRC D100neo: AC 100-240V or DC 10-30V. AC 100-240V 12V DC Battery *12V DC Battery or 10-30V DC Power Supply 2. -
Page 13: Charging
SKYRC D100neo Instruction Manual 2) NiMH/NiCd or Pb Battery Connection Charging Various operations are applicable depending on the battery type. This chart illustrates which operations are relevant for different types of batteries. Battery Working Description Type Mode This mode is to balance charge the lithium battery based on the charging rate Balance the user set. - Page 14 SKYRC D100neo Instruction Manual Battery Working Description Type Mode This mode is to charge the NiMH/NiCd battery based on the charging rate Charge selected. This mode is to discharge the NiMH/NiCd battery based on the discharging rate Discharge selected. NiMH...
-
Page 15: Lithium Battery Program(Lipo/Life/Lilon/Lihv)
SKYRC D100neo Instruction Manual Lithium Battery Program(LiPo/LiFe/Lilon/LiHV) The following flowchart is a reference to set the program manually. Scroll to select the port and short-press to confirm. Enter CHARGE Select Condition CH A CHARGE SETTING CH A CHARGE SETTING SETTING... -
Page 16: Nimh/Nicd Battery Program
SKYRC D100neo Instruction Manual NiMH/NiCd Battery Program Scroll to select the port and short-press to confirm. ENTER CHARGE Select Condition CH A CHARGE SETTING CH A CHARGE SETTING SETTING Battery Type NiMH Battery Type NiMH -3mV Scroll to Condition, call out Battery Cell 6S(7.2V) -
Page 17: Pb Lead-Acid Battery Program
SKYRC D100neo Instruction Manual Pb Lead-Acid Battery Program Scroll to select the port and short-press to confirm. ENTER CHARGE Select Condition CH A CHARGE SETTING CH A CHARGE SETTING SETTING Battery Type NiMH Battery Type Scroll to Condition, call out the Battery Cell 6S(12.0V) -
Page 18: Charger Master
SKYRC D100neo Instruction Manual Charger Master The D100neo offers the convenience of charging and discharging directly from your computer, whether you're using Windows or MacOS. It provides a visual display of various parameters, such as charge time, capacity, charge current, and voltage, presented in a curve format. -
Page 19: Dc Power
SKYRC D100neo Instruction Manual DC Power 1. On the main menu, hold the Scroll Wheel for two seconds to enter Charger Setting>DC Power. 2. Select the options of DC Power: adjust the output voltage and current. 3. Select Start to activate the DC Power working mode. -
Page 20: Voltage Calibration (For Expert User Only)
SKYRC D100neo Instruction Manual Voltage Calibration (For expert user only) You can calibrate the voltage directly on the charger with a 6S LiPo battery. For more information, please contact us at info@skyrc.com Charge Settings On the main interface, press the Scroll Wheel to enter Charge Setting: switch between ports A,B,C... -
Page 21: System Setting
SKYRC D100neo Instruction Manual System Setting On the main interface, hold the Start button for seconds to enter the System Setting. Menu Option Definition Safety Timer Customize a period for program protection. Max.Capacity Customize the protection of capacity. Trickle Charge Enable/disable trickle charge. -
Page 22: Firmware Upgrade
Firmware Upgrade To recover from a firmware upgrade failure, please follow these steps: 1. Press and hold the Scroll Wheel, then connect the power cord; D100neo will power on with a blue screen notice. 2. Connect D100neo to your computer via a Type-C USB cable;... -
Page 23: Errors And Warnings
SKYRC D100neo Instruction Manual Errors and Warnings In the event of a fault, the charger will display an error message and sound an alarm. Error Message Explanation Error: DC Input Low! DC input voltage is lower than preset! Error: DC Input High! -
Page 24: Conformity Declaration
SKYRC D100neo Instruction Manual Conformity Declaration FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 25: Warranty And Serv
This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated. We are unable to ensure that you follow the instructions supplied with the charger, and we have no control over the methods you employ for using, operating, and maintaining the device. - Page 26 SKYRC D100neo Instruction Manual The manual is subject to change without notice; please refer to our website for the latest version! Manufactured by SKYRC TECHNOLOGY CO., LTD. www.skyrc.com 2023 SkyRC Trchnology Co., Ltd. All Rights Reserved [Version 1.0] SKYRC D100neo...
