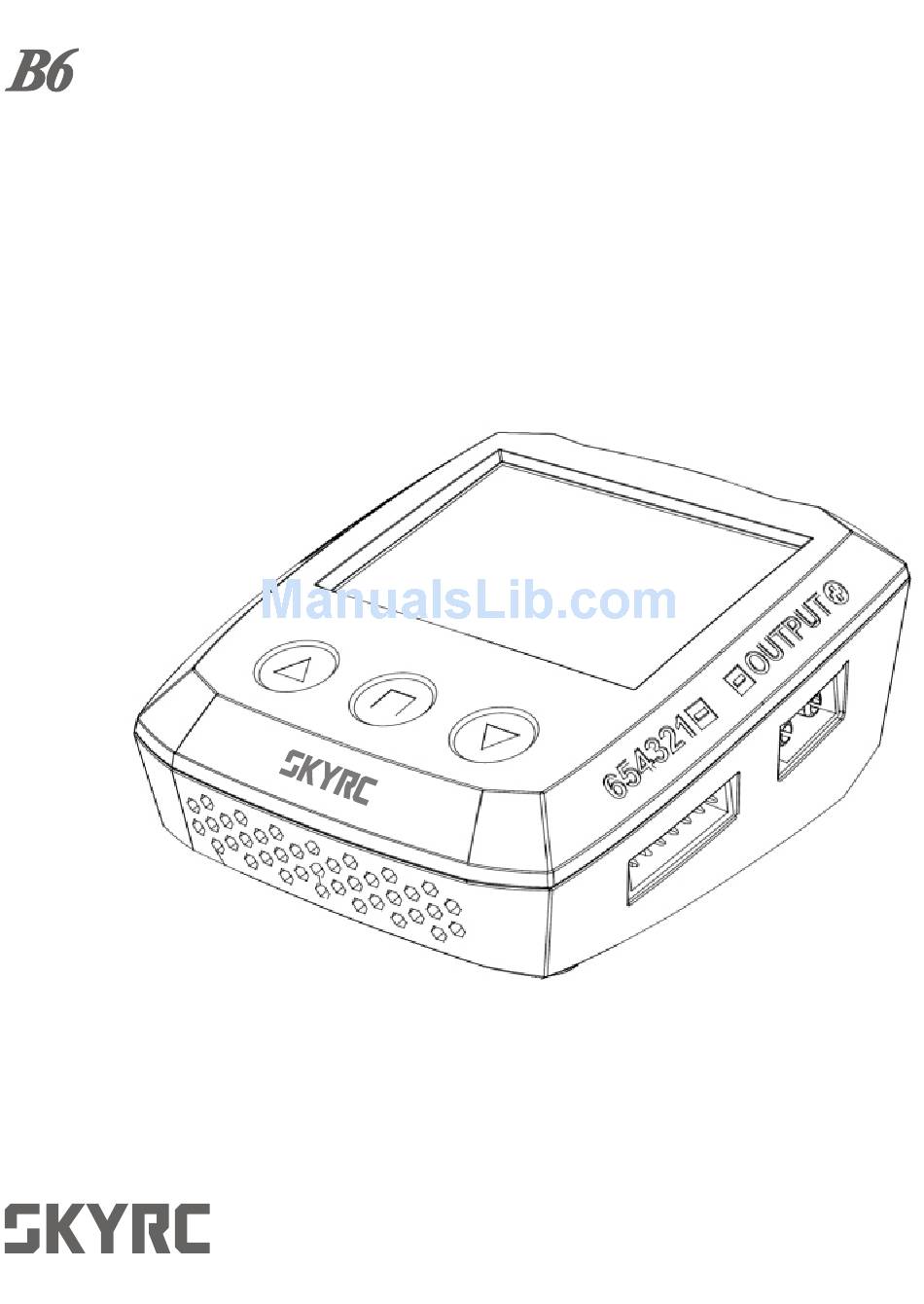

Page 1: Instruction Manual
nano Professional Balance Charger / Discharger Instruction Manual [Version 1.20]... -
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SPECIAL FEATURES WARNING AND SAFETY NOTES PROGRAM FLOW CHART OPERATION OPERATING PROGRAM CHARGING PROGRAM BATTERY MEMORY SET AND CALL OUT SYSTEM SETTING BATTERY METER BATTERY RESISTANCE METER WARNING AND ERROR MESSAGE USING THE CHARGE CONTROL SOFTWARE “CHARGE MASTER” THE SET CONTAINS SPECIFICATION CONFORMITY DECLARATION... -
Page 3: Introduction
INTRODUCTION Congratulations on your choice of SkyRC B6 nano. The operation and UI has been optimized to be hassle-free for basic usage. Being app-enabled, the user experience can be largely expanded, more features and advanced settings are provided within the free app. - Page 4 Or please do use this product in company with a specialist! LCD Display Decrease Button Start / Stop Button Increase Button DC Input Socket DC 9-32V Output Socket Balance Lead Socket · 02 B6 nano...
-
Page 5: Special Features
With the balance lead connected, B6 nano will balance your lithium batteries while charging or discharging. Adaptable to Various Types of Batteries B6 nano is adaptable to various types of batteries, such as LiPo, NiMH, Pb and the lastest LiHV batteries. Fast and Storage Mode for Lithium Battery... -
Page 6: Warning And Safety Notes
WARNING AND SAFETY NOTES These warnings and safety notes are particularly important. Please follow the instructions for maximum safety; otherwise the charger and the battery can be damaged or at worst it can cause a fire. Never leave the charger unattended when it is connected to its power supply. If any malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual. - Page 7 WARNING AND SAFETY NOTES Never attempt to charge or discharge the following types of batteries. A battery pack which consists of different types of cells (including different manufacturers) A battery that is already fully charged or just slightly discharged. Non-rechargeable batteries (Explosion hazard). Batteries that require a different charge technique from NiCd, NiMh, LiPo or Gel cell (Pb, Lead acid).
- Page 8 WARNING AND SAFETY NOTES Attention should be paid to the connection of lithium battery especially. Do not attempt to disassemble the battery pack arbitrarily. Please get highlighted that lithium battery packs can be wired in parallel and in series. In the parallel connection, the battery s capacity is calculated by multiplying single battery capacity by the number of cells with total voltage stay the same.
-
Page 9: Operating Program
1. Connect the charger to DC power supply. Important Notice To take advantage of B6 nano’s full power capability, the power source should be 9-32V DC, and output power should be capable of 250W or higher. Low quality DC power source may damage your B6 nano charger. We recommend you to choose SKYRC 380W Power Supply. - Page 10 2. Insert the battery to the charger LiPo Battery Battery Type Battery Cells BATTERY TYPE: CELLS: Bluetooth BALANCE MODE: Mode CHARGE Current CURRENT: Percentage Battery Voltage VOLTAGE: Capacity CAPACITY: Battery Type: select the chemistry of the battery to be processed. Cells: select how many cells of the battery to be processed.
- Page 11 3. Battery Type Setting Press button, the battery BATTERY TYPE: CELLS: type will blinking. Then Press button BALANCE MODE: CHARGE to select the correct battery type. CURRENT: VOLTAGE: CAPACITY: 4. Battery Cells Setting Press button, the battery BATTERY TYPE: CELLS: cells will blinking.
- Page 12 6. Charge Current Setting BATTERY TYPE: CELLS: Press button, the current will blinking. BALANCE MODE: CHARGE Then Press button CURRENT: to select the charge current. VOLTAGE: CAPACITY: 7. Program Start BATTERY TYPE: CELLS: Press and hold button for 3 seconds to start the program. BALANCE MODE: CHARGE...
-
Page 13: Charging Program
OPERATING PROGRAM Charging Program Depends on different battery type, the operation programs are different. Batt Operation Description Type Program This charging mode is for charging LiPo/LiFe/LiIon/LiHV battery in CHARGE normal mode. This mode is for discharging LiPo/LiFe/LiIon/LiHV battery. DISCHARGE LiPo This program is for charging or discharging lithium battery which will not be STORAGE used for long time. -
Page 14: Warning And Error Message
WARNING AND ERROR MESSAGE In case of an error the screen will display the cause of error and emit an audible sound. No battery attached. The cell number is wrong. The battery voltage is higher than the maximum voltage which the user sets when charging in balance mode. Balance port voltage error. - Page 15 Smartphone to download. OPERATION Connect the power cord to B6 nano, then plug the power cord into the outlet (100~240V AC, 50/60Hz). Connect the batteries to the corresponding channels. Enable Bluetooth function on your mobile device and launch the SkyCHARGER.
- Page 16 CONTROLLING THE CHARGER USING THE APP How to reset password B A T T / P R O G R A M Press ENTER button S Y S T E M S E T T I N G - > START ENTER D C S U P P L Y :...
- Page 17 CONTROLLING THE CHARGER USING THE APP 3). How to Use Memory Program Revo 15:53 Revo 15:53 Revo 15:53 Edit BACK Battery Battery Operation Battery Battery Operation Type Cells Mode Type Cells Mode LiPo BAL.CHARGE LiPo BAL.CHARGE LiIon CHARGER LiIon CHARGER LiFe DISCHARGER LiFe...
- Page 18 Enter into System Setting 5). SCAN TO GO A very unique feature of B6 nano is SCAN TO GO (automatically charging system). As the range of battery types and capacity becomes more and more, each battery requires its own dedicated charging process. It is easy to set up the charger incorrectly for a specific type of battery, resulting damage the battery or even cause accident.
- Page 19 CONTROLLING THE CHARGER USING THE APP How to print QR code Revo 15:53 Revo 15:53 Revo 15:53 LiPo BAL.CHARGE LiPo BAL.CHARGE Cells： 6 Charge Curretn： 5.0A Cells： 6 Charge Curretn： 5.0A 5.0A Voltage：4.20V Voltage：4.20V Gallery Save the QR Press the QR code Open Gallery code to Gallery Revo...
-
Page 20: Specification
SPECIFICATION DC Input Voltage : 9-32V Display Type: LCD Case Material: Plastic Controls: Three Buttons Case Size: 76x85x37mm Weight: 130g External Port: 2-6S Balance Socket-XH, Battery Socket, DC Input Delta Peak Detection for NiMH/NiCd: 3-15mV/cell / Default: 4mV/cell Charge Voltage: NiMH/NiCd: Delta peak detection LiPo: 4.18-4.25V/cell LiIon: 4.08-4.2V/cell... -
Page 21: Regulatory Information
REGULATORY INFORMATION B6 nano satisfy all relevant and mandatory CE directives and FCC Part 15 Subpart B: 2016. For CE directives: The product has been tested to meet the following technical standards: Electromagnetic Compatibility- Requirements for EN 55014-1:2006+ household appliances, electric tools and similar... -
Page 22: Commonly Used Terms
COMMONLY USED TERMS Commonly used terms Final charge voltage: the voltage at which the battery's charge limit (capacity limit) is reached. The charge process switches from a high current to a low maintenance rate (trickle charge) at this point. From this point on further high current charging would cause overheating and eventual terminal damage to the pack. -
Page 23: Warranty And Service
Liability exclusion This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated. - Page 24 To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body Manufactured by SKYRC Technology Co., Ltd. RoHS www.skyrc.com FCC ID: REY-B6NANO All specifications and figures are subject to change without notice.
