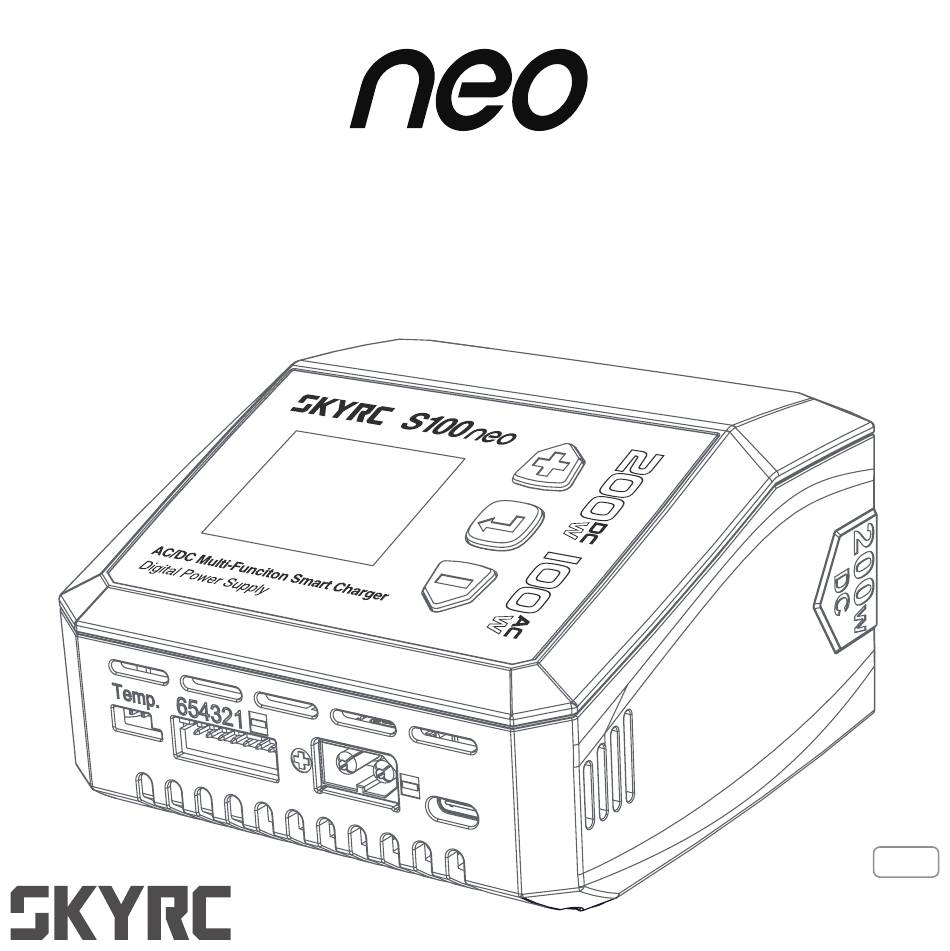

- Page 1 S100 SKYRC S100neo Instruction Manual AC/DC Smart Balance Charger Instruction Manual V1.0 SK-100202 SKYRC S100neo...
-
Page 2: Table Of Contents
SKYRC S100neo Instruction Manual Introduction What is included Meet S100neo Specification Warning Standard Battery Parameters Buttons Explained Program Flow Chart Power and Battery Connection Charging Lithium Battery Program(LiPo/LiIon/LiFe/LiHV) NiMH/NiCd Battery Program Pb Lead-Acid Battery Program Voltage Calibration (For expert user only) -
Page 3: Introduction
SKYRC S100neo Instruction Manual Introduction Congratulations on your choice of SkyRC S100neo smart charger. S100neo boasts a stylish and ultra-compact design, but operating it effectively requires some knowledge. These operating instructions aim to quickly acquaint you with its functions. Therefore, it's vital to thoroughly review the Operating Instructions, Warnings, and Safety Notes before using S100neo. -
Page 4: Meet S100Neo

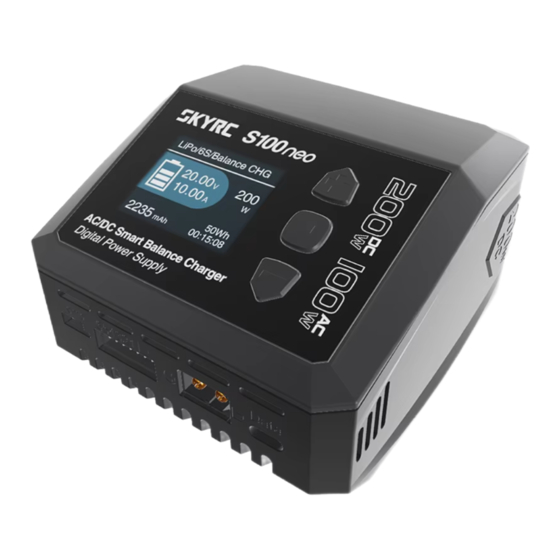

SKYRC S100neo Instruction Manual Meet S100neo LCD Display Selection Buttons Confirm Button Selection Buttons Temperature Sensor Port Balance Port Main Port Type-C Port Smart Ventilation Fan DC Input AC Input 6.0-30.0V/12A 100-240V SKYRC S100neo... -
Page 5: Specification
SKYRC S100neo Instruction Manual Specification Item Option Specification Model S100neo 100-240V (50/60Hz) Input Voltage 6V-30V Input Current 12.0A 100W(±10%) Charge Power 200W(±10%) Main Port 5W(±20%) Discharge Power Main Port+Balance Port 20W Max (Lipo 6s Discharge) LiPo/LiIon/LiFe/LiHV/ 0.1A~0.5A (±0.1A) Charge Current NiMH/NiCd/Pb 0.6A~10A (±10%) - Page 6 SKYRC S100neo Instruction Manual Balance CHG, Charge, Discharge, LiPo/LiIon/LiFe/LiHV Storage Charge, Discharge, Re-Peak, CYCLE_ Working Modes NiMH/NiCd D_C, CYCLE_C_D Normal, AGM Charge, Cold Charge, Discharge Voltage 2v~30V 0.1A~10A (voltage 2V~2.9V) Current 0.1A~12A (voltage 3V~30V) 0.1A (±0.1A) DC Power Supply 0.2A~4A (±20%) Over Current Protection 4.1A~10A (±10%)
-
Page 7: Warning
SKYRC S100neo Instruction Manual Warning S100neo is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the charger by a person responsible for their safety. -
Page 8: Standard Battery Parameters
SKYRC S100neo Instruction Manual Standard Battery Parameters LiPo Lilon LiFe LiHV NiMH NiCd Nominal 3.7V/cell 3.6V/cell 3.3V/cell 3.8V/cell 1.2V/cell 1.2V/cell 2.0V/cell voltage Max. charge 3.65V/ 4.35V/ 4.2V/cell 4.1V/cell 1.5V/cell 1.5V/cell 2.4V/cell voltage cell cell Storage 3.85V/ 3.8V/cell 3.7V/cell 3.3V/cell voltage... -
Page 9: Buttons Explained
SKYRC S100neo Instruction Manual Buttons Explained Go through the menus or increase the parameter value Enter the setting, confirm the choice and stop the progress Go through the menus or decrease the parameter value SKYRC S100neo... -
Page 10: Program Flow Chart
SKYRC S100neo Instruction Manual Program Flow Chart mΩ Batt IR Cell Voltage 4.05 4.05 4.05 4.05 4.05 4.05 Σ :25.2V Δ: 8mV Σ :77mΩ WARNING! LiPo/6S/Balance CHG Charge Setting Charge Setting Charge Setting Charge Setting NEVER USE TH E CHARGER... - Page 11 SKYRC S100neo Instruction Manual Charge Setting Charge Setting Charge Setting Battery Type: LiPo Battery Type: LiPo Battery Type: LiPo Battery Cell: 6S(22.2V) Battery Cell: 6S(22.2V) Battery Cell: 6S(22.2V) Task: Balance CHG Task: Balance CHG Task: Balance CHG Condition: 4.20V Condition: 4.20V...
-
Page 12: Power And Battery Connection
SKYRC S100neo Instruction Manual Power and Battery Connection 1. Connect to power source There are two options of inputs for SKYRC S100neo: AC 100-240V or DC 6-30V. AC 100-240V *12V DC Battery or 6-30V DC Power 12V DC Battery Supply 2. - Page 13 SKYRC S100neo Instruction Manual 1) LiPo Battery Connection with Balance Adapter For safety reasons, it is highly recommended to charge Lithium batteries (LiPo, Lilon, LiFe and LiHV) using Balance CHG mode unless the battery comes without a balance connector. The battery balance connector must connect to the charger with the black wire aligned with the negative marking.
-
Page 14: Charging
SKYRC S100neo Instruction Manual Charging Various operations are applicable depending on the battery type. This chart illustrates operations relevant to different types of batteries. Battery Working Description Type Mode This mode is to balance charge the lithium battery based Balance on the charging rate the user set. - Page 15 SKYRC S100neo Instruction Manual Battery Working Description Type Mode This mode is to charge the NiMH/NiCd battery based on the Charge charging rate selected. This mode is to discharge the NiMH/NiCd battery based on Discharge the discharging rate selected. NiMH...
-
Page 16: Lithium Battery Program(Lipo/Liion/Life/Lihv)
SKYRC S100neo Instruction Manual Lithium Battery Program(LiPo/LiIon/LiFe/LiHV) Here is a flowchart to guide you to set up the program. Select Charge/ Charge Setting Charge Setting Select Battery Type Discharge Current LiPo 9.6A Battery Type: LiPo Condition: 4.20V Lilo 9.7A Press... -
Page 17: Nimh/Nicd Battery Program
SKYRC S100neo Instruction Manual NiMH/NiCd Battery Program Select Charge/ Charge Setting Discharge Current Charge Setting Charge Current Select Battery Type 9.7A Press LiFe Temp.Cut-off Battery Type: LiPo 9.8A button to select the Press button tto LiHV Start 9.9A Battery Cell: 6S(22.2V) current. -
Page 18: Pb Lead-Acid Battery Program
SKYRC S100neo Instruction Manual Pb Lead-Acid Battery Program Charge Setting Start Charge Setting Select Battery Type LiFe Battery Type: LiPo Condition: 2.45V Press Press button to call LiHV Battery Cell: 6S(22.2V) Charge Current: 3.0A button to initiate the NiMH out the Battery Type... - Page 19 SKYRC S100neo Instruction Manual DC Power LiPo/6S/Balance CHG On the main menu, hold the ENTER button for two 0.00 seconds to enter System Setting>DC Power. 0.00 0.0Wh 00:00:00 *Connect your desired Long Press DC equipment. System Setting Task Parameters System Setting...
- Page 20 SKYRC S100neo Instruction Manual When acting as a digital power supply, S100neo can regulate its output voltage or current at a constant level. Constant Current(CC) Mode and Constant Voltage(CV) Mode can switch automatically as follows: If R load > (V out / I out), then the power supply is in CV mode If R load <...
- Page 21 SKYRC S100neo Instruction Manual 2. Protection: The CC mode can prevent overcurrent situations, which could damage electronic devices or create hazardous situations. By setting a maximum current limit, the power supply ensures that it won't deliver more current than the device can safely handle.
-
Page 22: Voltage Calibration (For Expert User Only)
Voltage Calibration (For expert user only) You can calibrate the voltage directly on the charger with a 6S LiPo battery. For more information, please contact us at info@skyrc.com Battery Voltage Meter S100neo measures the lithium battery voltage easily and conveniently. Use the balance port to connect the lithium battery directly to S100neo. -
Page 23: Battery Resistance Meter
SKYRC S100neo Instruction Manual Battery Resistance Meter Power on S100neo, and hold the Start button for seconds to enter the System Setting. Connect the battery to S100neo and scroll down to Battery Meter Press ENTER button to measure the battery voltage and resistance. -
Page 24: Firmware Upgrade
SKYRC S100neo Instruction Manual Firmware Upgrade 1. Download the latest Charger Master onto your desktop. Unzip and open it; 2. Press the UP and DOWN buttons, then connect the power cord; S100neo will power on with a blue screen notice. -
Page 25: Charge Settings
SKYRC S100neo Instruction Manual Charge Settings Short press the ENTER button to enter the Charge Setting. Menu Definition Select the desired battery type. (LiPo, LiIon, LiFe, LiHV, NiMH, NiCd, Battery Type Select the number of battery cells by different battery type. (Li-xx: 1-6S,... -
Page 26: System Setting
SKYRC S100neo Instruction Manual System Setting On the main interface, hold the START button for two seconds to enter the System Setting. Menu Option Definition Safety Timer Customize a period for program protection. Max. Customize the maximum capacity. Capacity Trickle Enable/disable trickle charge. - Page 27 SKYRC S100neo Instruction Manual Voltage Set the output voltage. (2.0-30.0V) Current Set the output current. (1.0-10.0A) DC Power Start Enable DC power output and return to the main interface. Back Back to the previous interface. Measure the battery voltage and internal resistance.
-
Page 28: Errors And Warnings
SKYRC S100neo Instruction Manual Errors and Warnings In the event of a fault, the charger will display an error message and sound an alarm. Error Message Explanation DC input voltage is lower than preset or min.input DC In Too Low... -
Page 29: Conformity Declaration
SKYRC S100neo Instruction Manual Conformity Declaration SkyRC B6ACneo satisfies all relevant and mandatory CE directives and FCC Part 15 Subpart B. Test Standards Title Result Household and similar electrical appliances - Safety - EN 60335-1 Conform Part 1: General requirements Household and similar electrical appliances –... -
Page 30: Warranty And Service
Unless otherwise prescribed by law, our obligation to pay compensation, regardless of the legal argument employed, is limited to the invoice value of those SkyRC products which were immediately and directly involved in the event in which the damage occurred. - Page 31 Due to high shipping costs, and complicated custom clearance procedures to send back to China, please understand that SkyRC can't provide warranty service to overseas end users directly. If you have any questions which are not mentioned in the manual, please feel free to send an email to info@skyrc.com...
- Page 32 SKYRC S100neo Instruction Manual The manual is subject to change without notice; please refer to our website for the latest version! Manufactured by SKYRC TECHNOLOGY CO., LTD. www.skyrc.com [Version 1.0] 2023 SkyRC Trchnology Co., Ltd. All Rights Reserved SKYRC S100neo...
