2. Getting started
Locate the flowcharts show the entire programming menu. It is highly
recommended to have these flowcharts handy while learning to operate this
charger.
There are two main ways in which to set the charger.
(1)
A memory profile is available for setting and storing pertinent information for up
to 10 different batteries. Once a battery's information is stored into a memory it
will be retained until changed again manually. Recalling a battery's memory
number makes the charger instantly ready to go!
(2)
If you do not wish to use the battery memories, this charger can be manually
set before each use.
For following step, all are basing on manually set

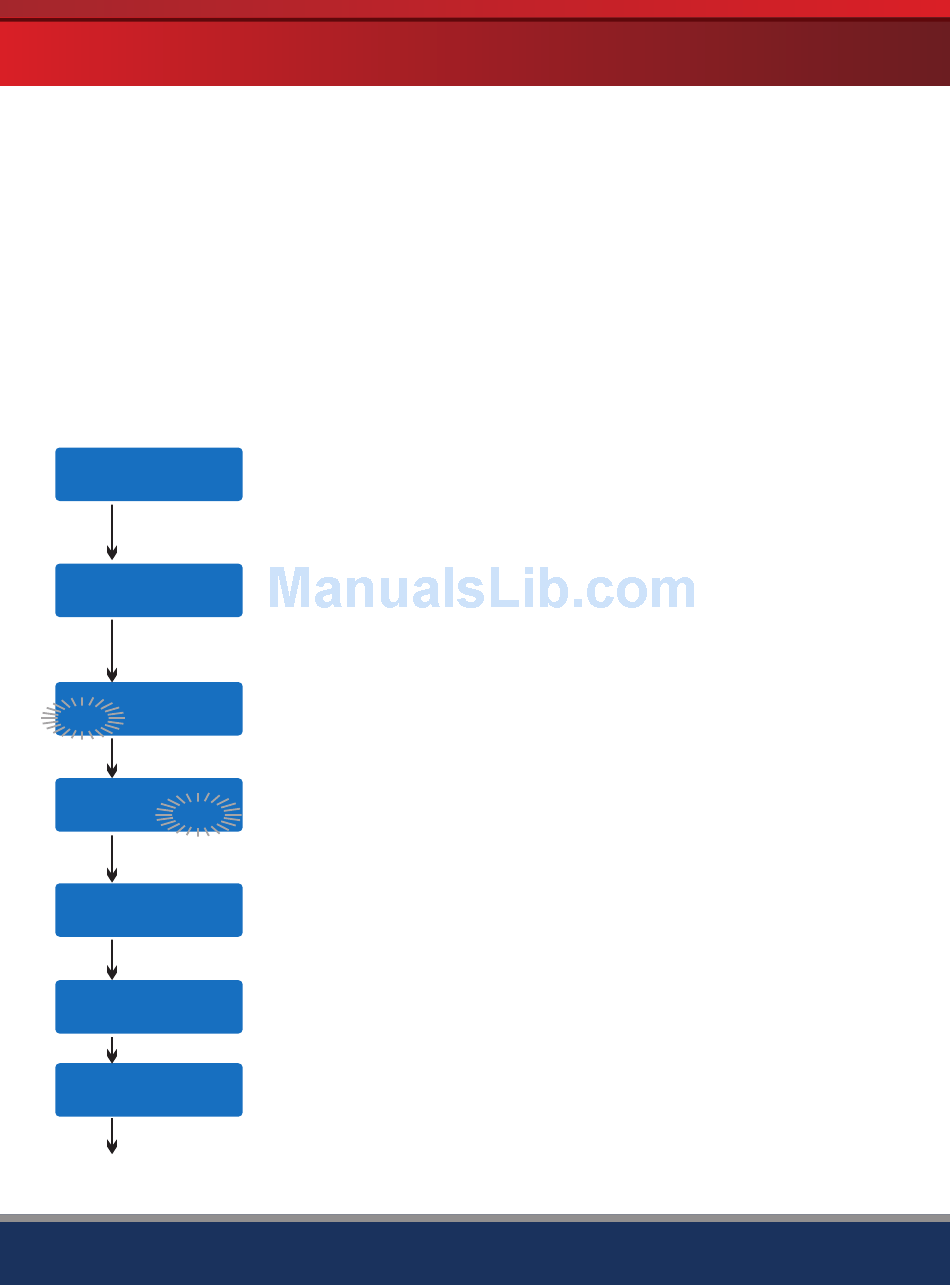

B A T T / P R O G R A M
L i P o B A T T
START/ENTER
L i P o B A L A N C E C H G
2 . 0 A
1 1 . 1 V ( 3 S )
START/ENTER
L i P o B A L A N C E C H G
2 . 0 A
1 1 . 1 V ( 3 S )
START/ENTER
L i P o B A L A N C E C H G
2 . 0 A
1 1 . 1 V ( 3 S )
START/ENTER
L i P o B A L A N C E C H G
2 . 0 A
1 1 . 1 V ( 3 S )
START/ENTER
> 3 Seconds
B A T T E R Y C H E C K
W A I T . . .
R : 3 S E R
S : 3 S E R
C A N C E L ( S T O P )
B6 mini
3. BATT/PROGRAM Select
Press INC and DEC to go through all the programs and
press START/ENTER to enter LiPo BATT Program.
4. Mode Select
Press INC and DEC to go through all the modes and press
START/ENTER to enter LiPo Balance Charge Mode.
5. Battery Setting
Press START/ENTER, the current value will start to blink,
press INC and DEC to change the value and press
START/ENTER to confirm your setting.
At the same time, the battery cells number will start to blink,
press INC and
START/ENTER to confirm your setting.
6. Program Start
Press and hold START/ENTER for 3 seconds to start the
program.
The charger is detecting the battery cell.
R shows the number of cells detected by the charger and S
is the number of cells set by you at the previous screen. If
both numbers are not identical, press STOP to go back to
previous screen to recheck the number of cells of the battery
pack before going ahead.
OPERATING PROGRAM
DEC to change the value and press
